Engine-Engineandcrankcase

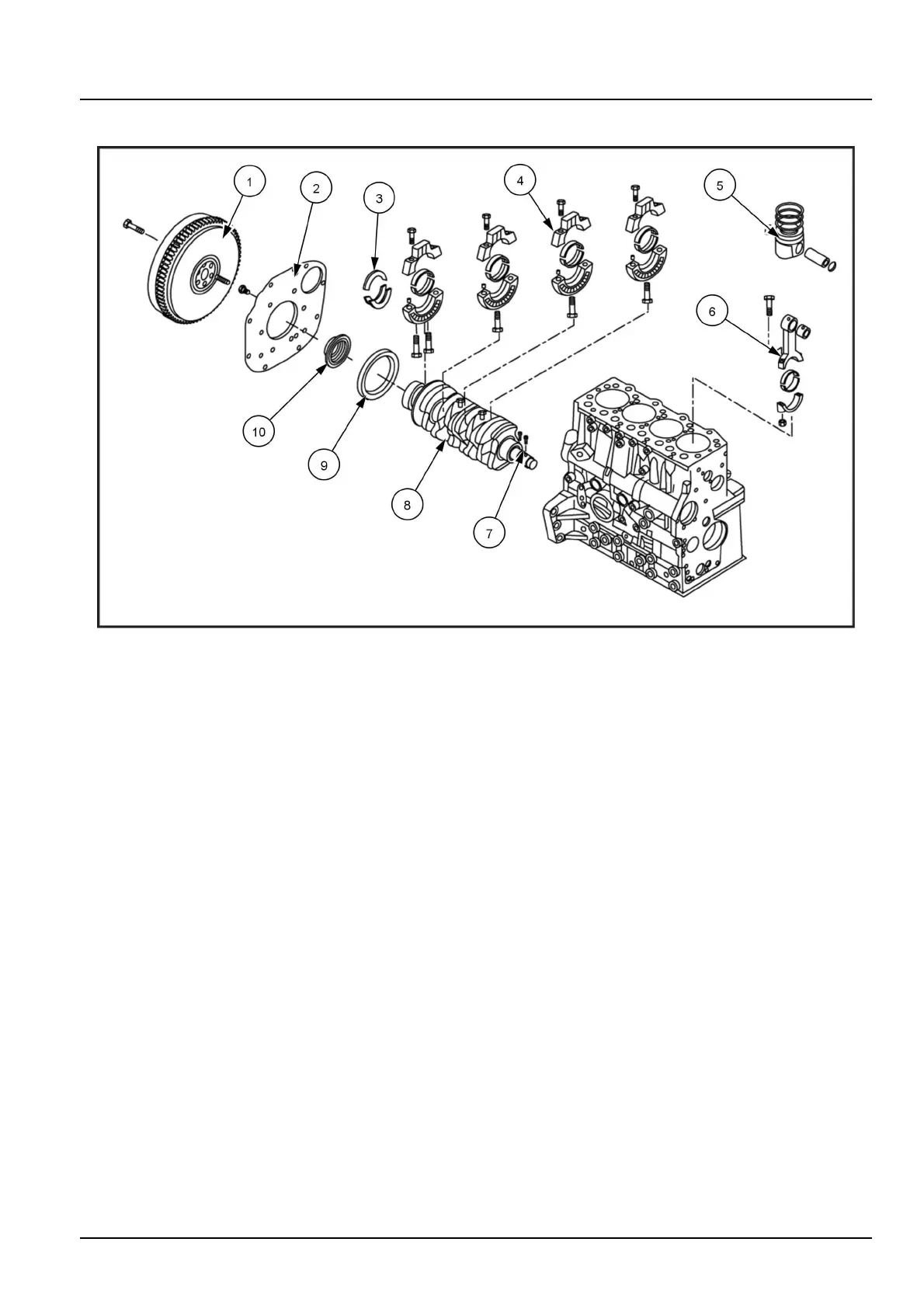

Engine-Explodedview
NHIL13ENG0023AA1
(1)Flywheelassembly(6)Connectingrod
(2)Rearplate(7)Key
(3)Thrustwasher(8)Crankshaft
(4)Bearingholders/bearings(9)Gear;Balancer
(5)Piston/Rings/Pistonpin(10)Rearoilseal
Thecylinderblockassemblycontainsthepistons,connectingrods,crankshaft,timinggears,andengineoilpump.
Thecrankshaftissupportedonvemainbearings.Thefrontbearingispositionedinaboreinfrontoftheblock.The
otherbearingsaresplitlinerslocatedinholdersboltedtotheblock.Thecamshaftissupportedonfourcambearings
locatedintheblock.
