SECTION 10 -- ENGINE -- CHAPTER 1 19
84176554 -- 03--2008

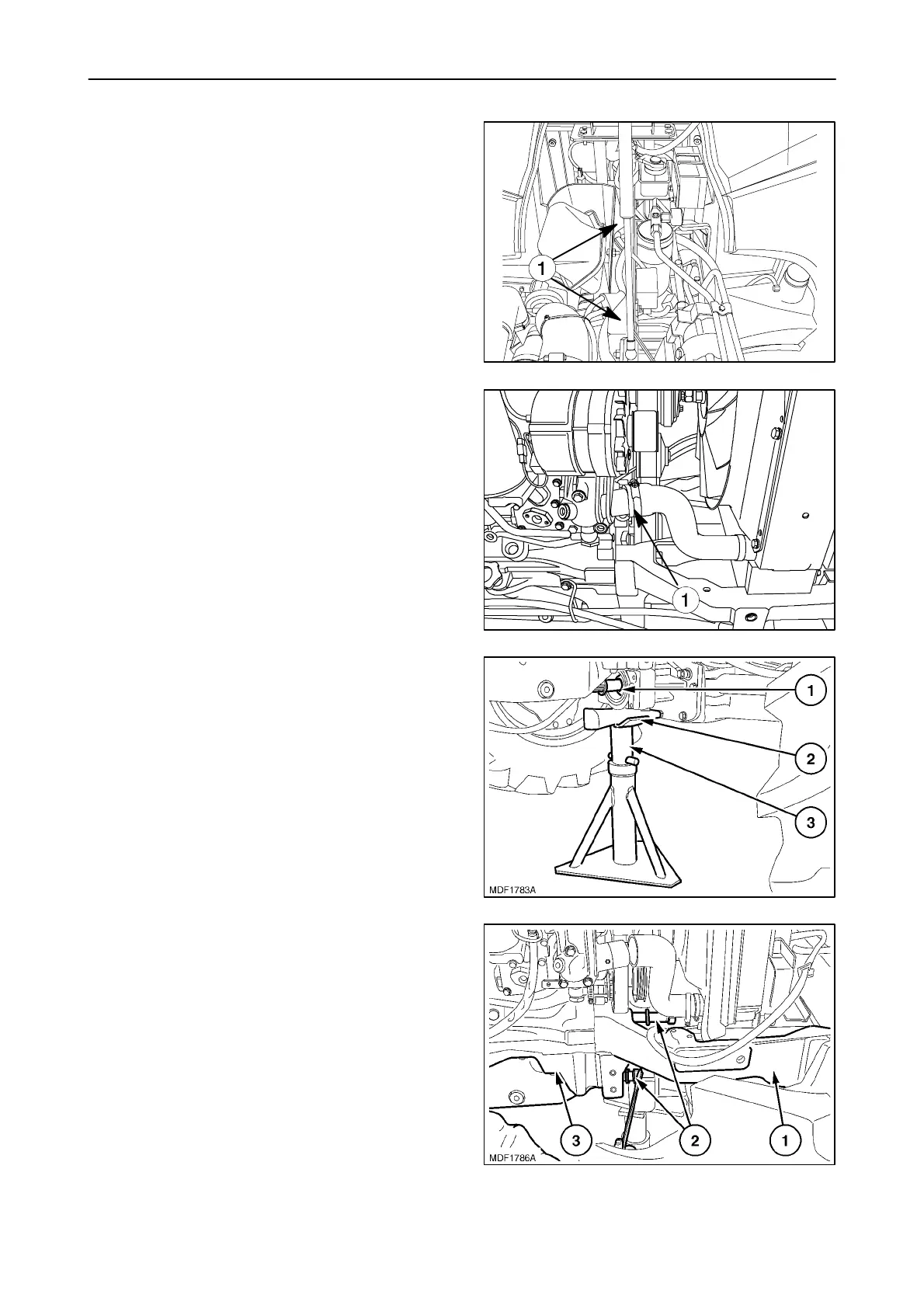

51. Remove the bonnet support (1).
48
52. Loosen the retaining clamp and extract the pipe
(1) joining the coolant pump to the bottom of the
radiator.
49
53. Position a fixed stand (3) under the support of the
groove (1) of the front axle drive placing a
wooden plug (2) between the parts (3) and (1).
50
54. Remove the four bolts (2) fastening the front axle
support (1) to the engine (3).
51
