SECTION 2 - OPERATION
2-24

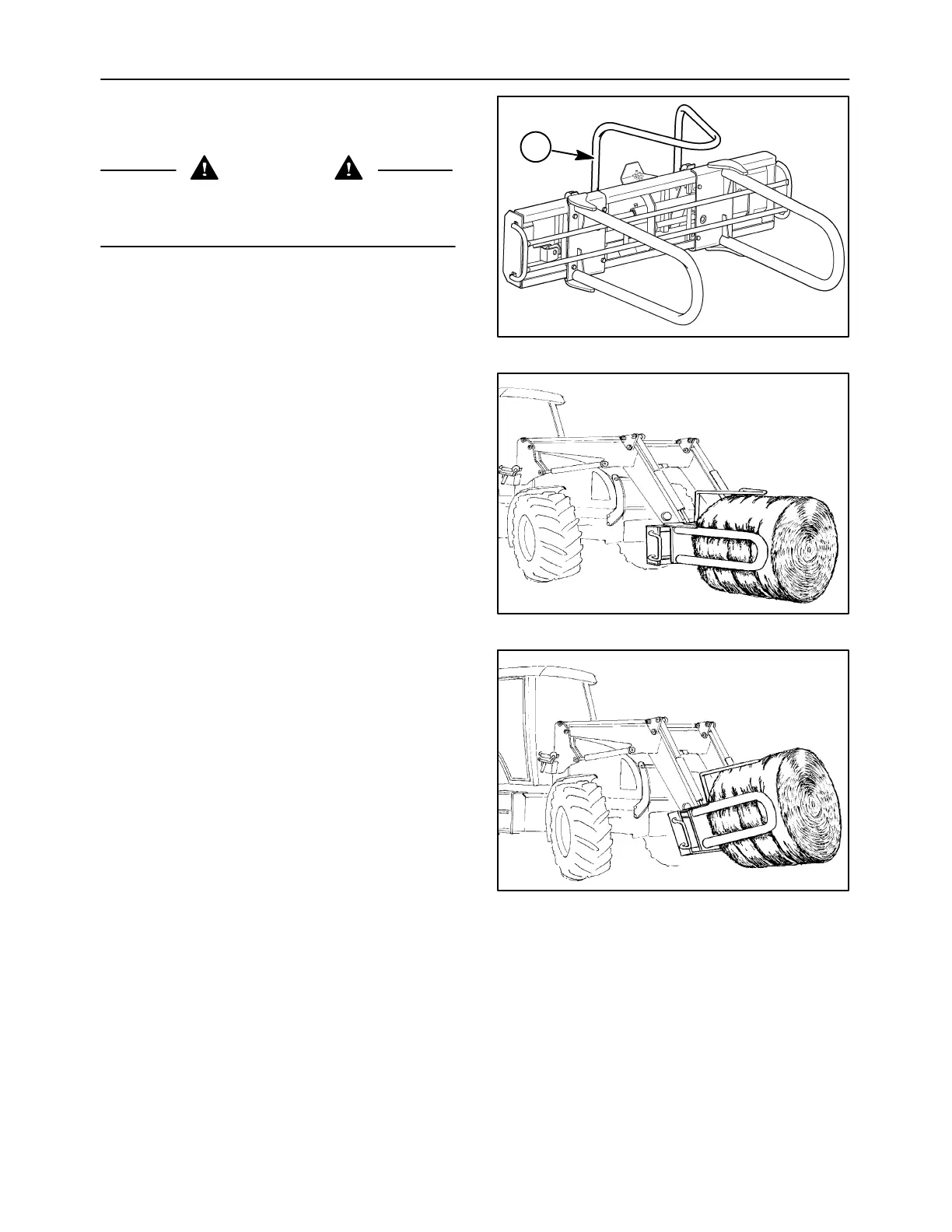

OPERATION WITH H. D. BALE GRIP
Make sure backstop, 1, is installed.
DANGER
Prevent personal injury or death due to bale
falling. Do not operate this attachment until the
backstop, 1, is installed.
1
49
Press the loader third hydraulic function button and
move the hydraulic control lever to the right to open
the arms, on units equipped with the electric diverter
valve. On Live 3rd units press and hold the top button
to open the arms.
Move the hydraulic control lever forward to lower the
quadrogrip around bale.
50
Press the loader third hydraulic function button and
move the hydraulic control lever to the left to close the
arms on the bale, on units equipped with the electric
diverter valve. On Live 3rd units press and hold the
bottom button to close the arms.
Move the hydraulic control lever rearward to lift the
bale. Move the hydraulic control lever to the left to roll
the quadrogrip back.
51
