Case WX148 - Dimension; Triple articulation version - transport dimensions

INTRODUCTION
Dimension

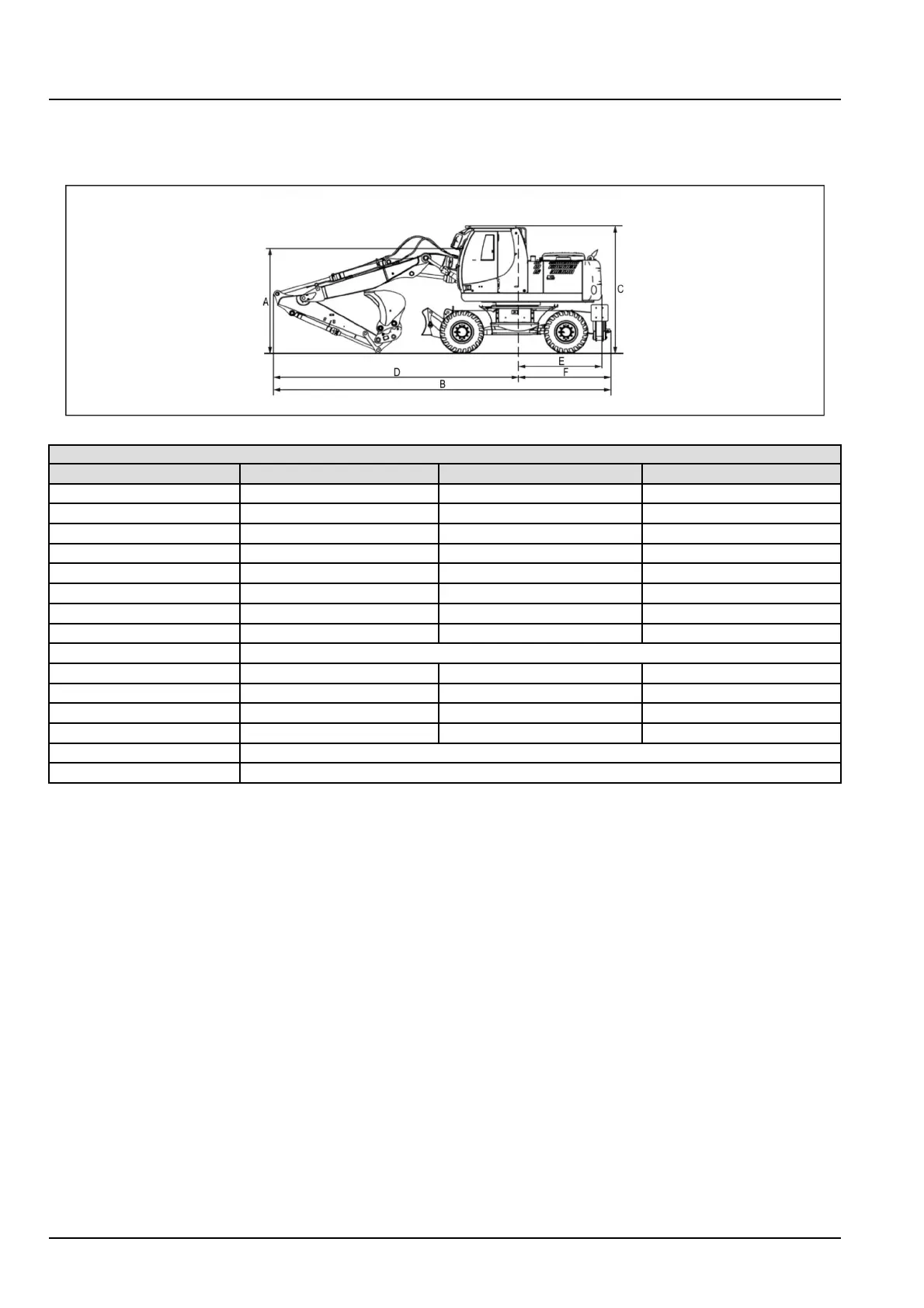

Triplearticulationversion-transportdimensions
SMIL12WEX0081EA1
Frontbladeandrearstabilizers
Dipper
210024502950
A
2616mm(103.0in)2707mm(106.6in)3125mm(123.0in)
A1
2616mm(103.0in)2707mm(106.6in)3050mm(120.1in)
A2
2616mm(103.0in)2707mm(106.6in)3050mm(120.1in)
A3
2543mm(100.1in)2623mm(103.3in)2836mm(111.7in)
B
8238mm(324.3in)8248mm(324.7in)8199mm(322.8in)
B1
8238mm(324.3in)8248mm(324.7in)8217mm(323.5in)
B2
8238mm(324.3in)8248mm(324.7in)8217mm(323.5in)
B3
8215mm(323.4in)8238mm(324.3in)8245mm(324.6in)
C
3181mm(125.2in)
D
5978mm(235.4in)5988mm(235.7in)5939mm(233.8in)
D1
5978mm(235.4in)5988mm(235.7in)5957mm(234.5in)
D2
5978mm(235.4in)5988mm(235.7in)5957mm(234.5in)
D3
5955mm(234.4in)5978mm(235.4in)5985mm(235.6in)
E
2041mm(80.4in)
F
2260mm(89.0in)
1.Withbucketonly
2.Withquickcoupleronly
3.Withoutquickcouplerandbucket
Maximummachinewidth:2550mm(100.4in)
DimensionsmeasuredwithMITAS10.00-20twintyres.
47500167A31/01/2013
20
