Case WX148 - General specification; Triple articulation version

INTRODUCTION
Generalspecication
Triplearticulationversion

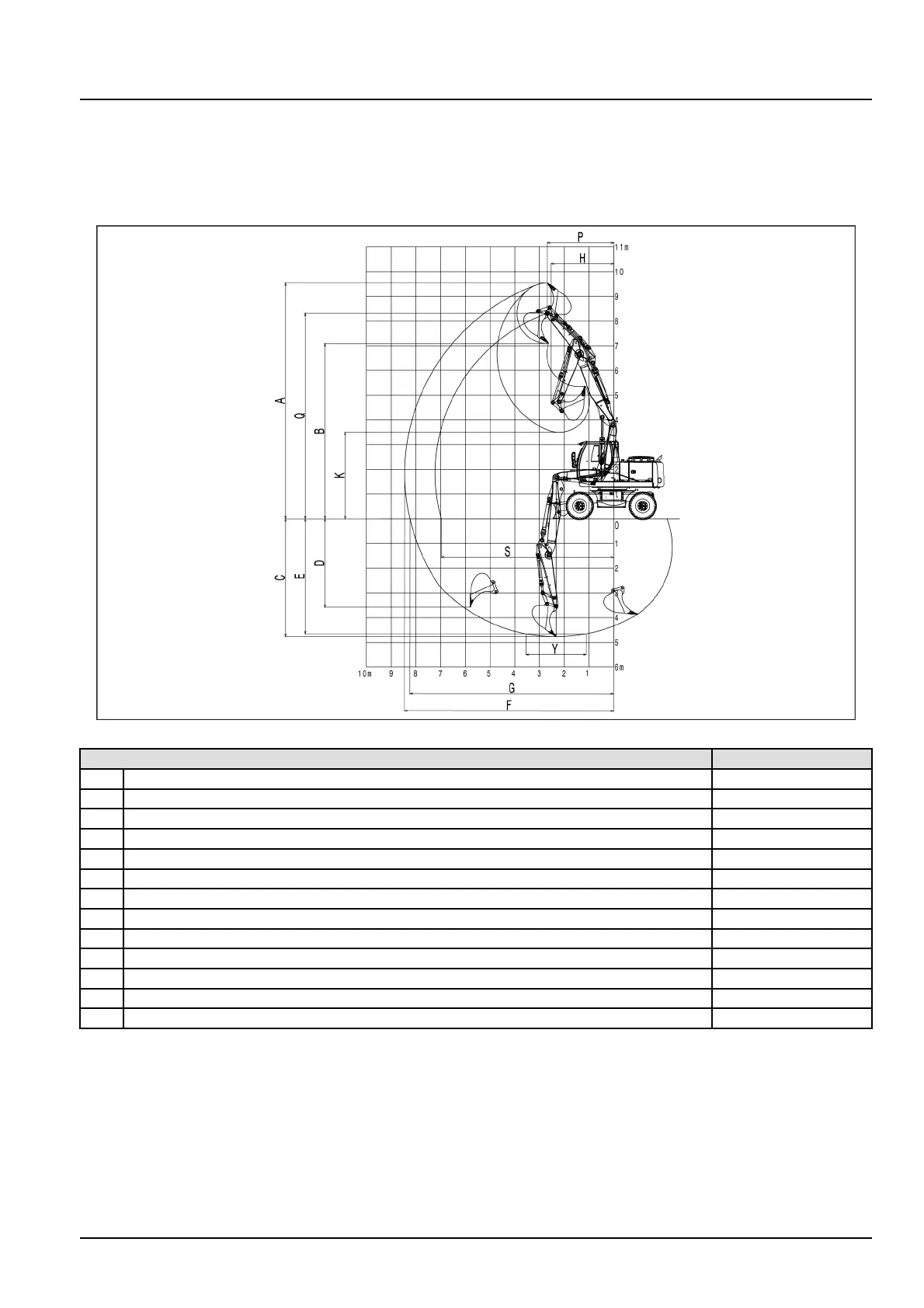

Dipper-2100mm(82.7in)
SMIL12WEX0078FA1
Bucketradius
1222mm(48.1in)
A
Maximumdiggingheight
9540mm(375.6in)
B
Maximumloadingheight
7090mm(279.1in)
C
Maximumdiggingdepth
4770mm(187.8in)
D
Maximumverticalwalldiggingdepth
3580mm(140.9in)
E
Maximumdiggingdepthofcutforlevelbottom4650mm(183.1in)
F
Maximumdiggingreach
8450mm(332.7in)
G
Maximumdiggingreachatgroundlevel
8240mm(324.4in)
H
Minimumswingradius
2530mm(99.6in)
K
Maximumloadingheight(dipperretracted)3500mm(137.8in)
Y
Maximumdiggingdepthbuckingmovement
2440mm(96.1in)
P
Maximumswingradiusofbuckingconnection2690mm(105.9in)
Q
Maximumheightofbuckingconnection8320mm(327.6in)
S
Maximumreachatgroundlevelofbuckingconnection6970mm(274.4in)
