Case WX148 - Page 35

INTRODUCTION

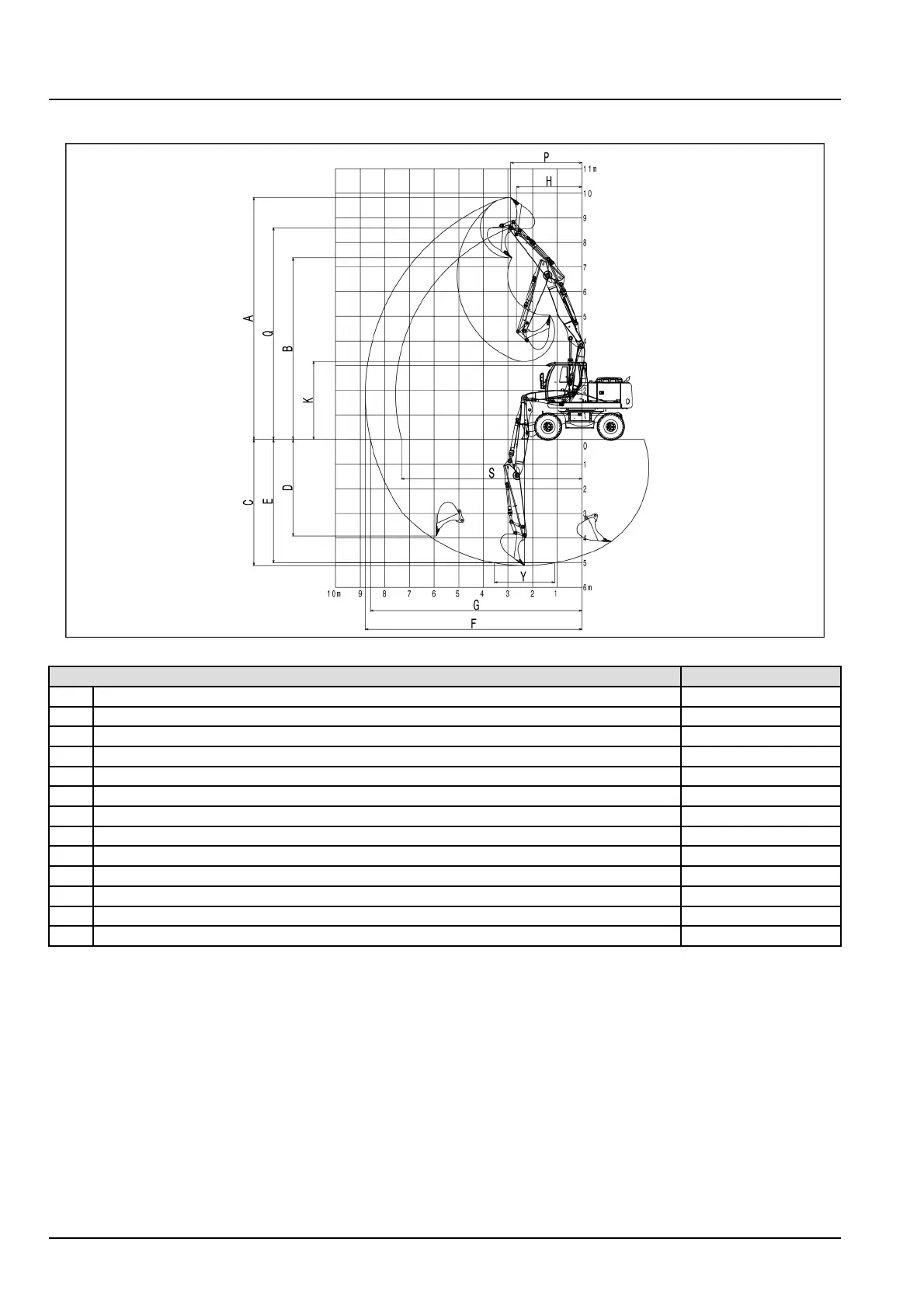

Dipper-2450mm(96.5in)
SMIL12WEX0079FA2
Bucketradius
1222mm(48.1in)
A
Maximumdiggingheight
9830mm(387.0in)
B
Maximumloadingheight
7370mm(290.2in)
C
Maximumdiggingdepth
5120mm(201.6in)
D
Maximumverticalwalldiggingdepth
3920mm(154.3in)
E
Maximumdiggingdepthofcutforlevelbottom5000mm(196.9in)
F
Maximumdiggingreach
8790mm(346.1in)
G
Maximumdiggingreachatgroundlevel
8590mm(338.2in)
H
Minimumswingradius
2660mm(104.7in)
K
Maximumloadingheight(dipperretracted)3180mm(125.2in)
Y
Maximumdiggingdepthbuckingmovement
2440mm(96.1in)
P
Maximumswingradiusofbuckingconnection2890mm(113.8in)
Q
Maximumheightofbuckingconnection8600mm(338.6in)
S
Maximumreachatgroundlevelofbuckingconnection7330mm(288.6in)
47500167A31/01/2013
28
