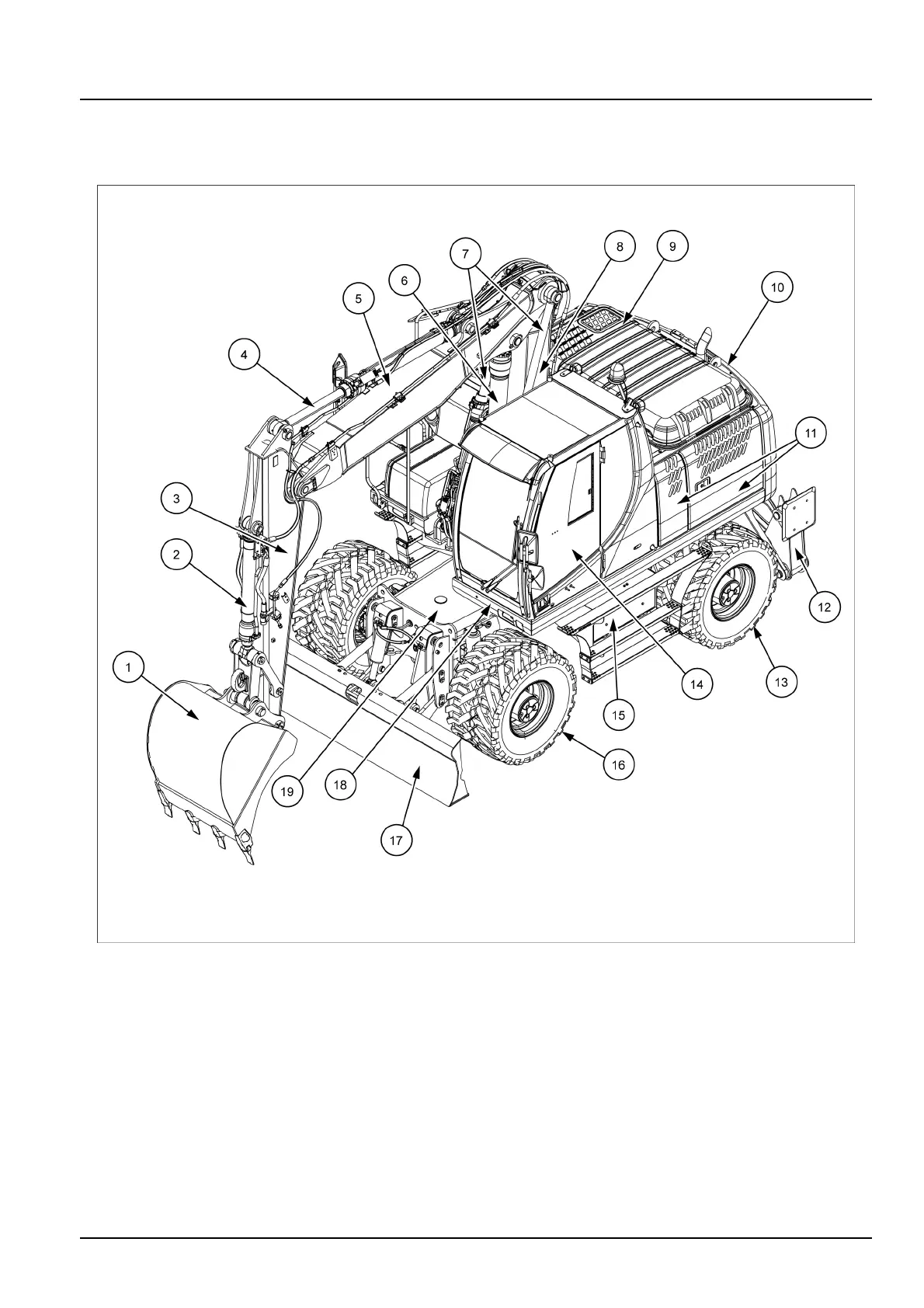

Case WX148 - Product overview; Main components (2-piece boom) - External view

INTRODUCTION
Productoverview
Maincomponents(2-pieceboom)-Externalview
SMIL12WEX0294GB1
1.Bucket11.
Sidedoors
2.
Bucketcylinder
12.Rearstabilizers
3.
Dipper
13.Rearaxlewheels
4.
Dippercylinder
14.
Cabin
5.
Secondboom
15.
Stairs-storagebox
6.
Cylinder
16.Frontaxlewheels
7.
Boomcylinders
17.Frontblade
8.Firstboom18.
Upperstructure
9.
Enginecover
19.
Undercarriage
10.
Counterweight
