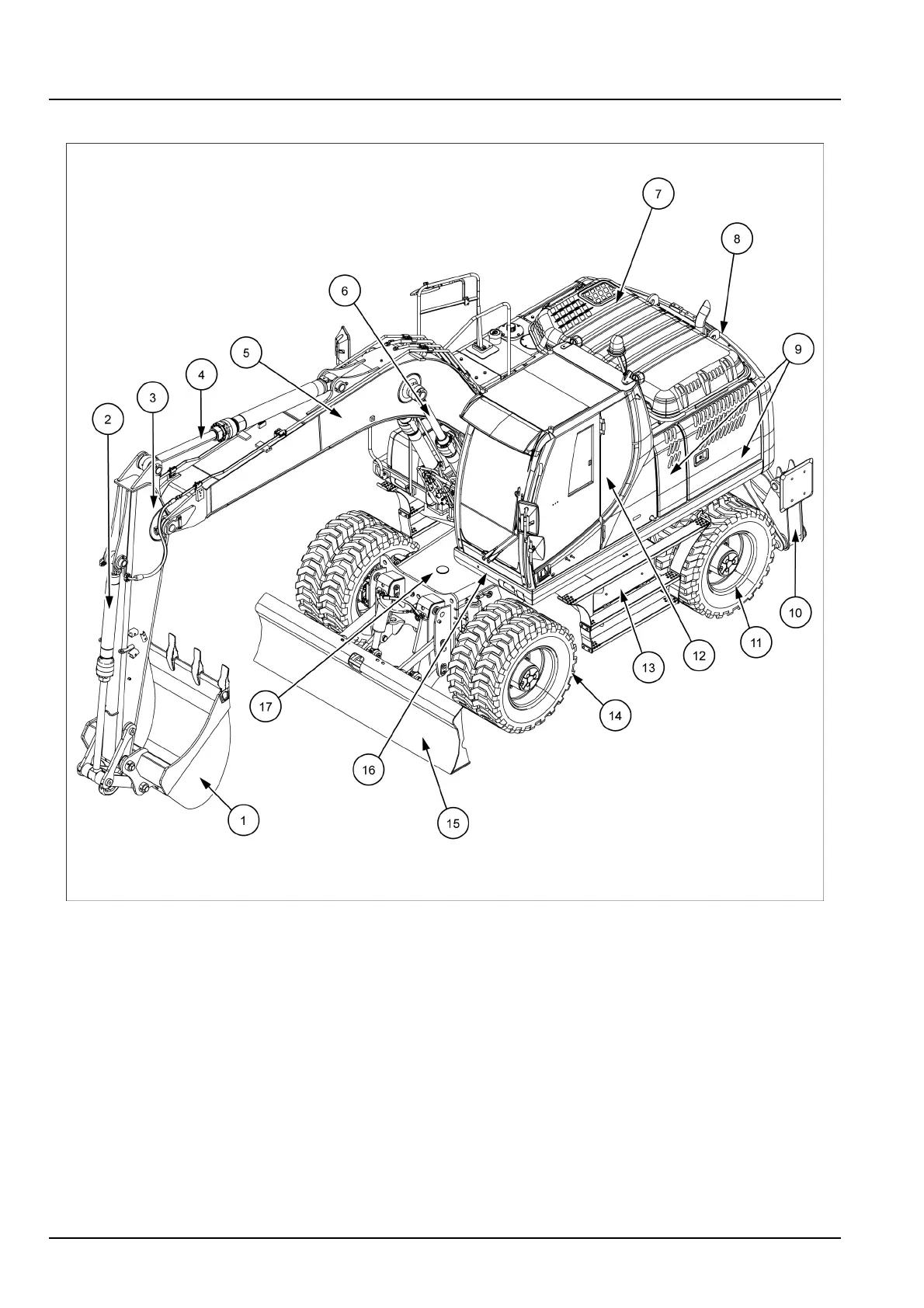

Case WX148 - Main components (monoboom) - External view

INTRODUCTION
Maincomponents(monoboom)-Externalview
SMIL12WEX0295GB2
1.Bucket10.Rearstabilizers
2.
Bucketcylinder
11.Rearaxlewheels
3.
Dipper
12.
Cabin
4.
Dippercylinder
13.
Stairs-storagebox
5.
Boom14.Frontaxlewheels
6.
Boomcylinder
15.Frontblade
7.
Enginecover
16.
Upperstructure
8.
Counterweight
17.
Undercarriage
9.
Sidedoors
