Case WX148 - Upper structure main components - Internal view

INTRODUCTION

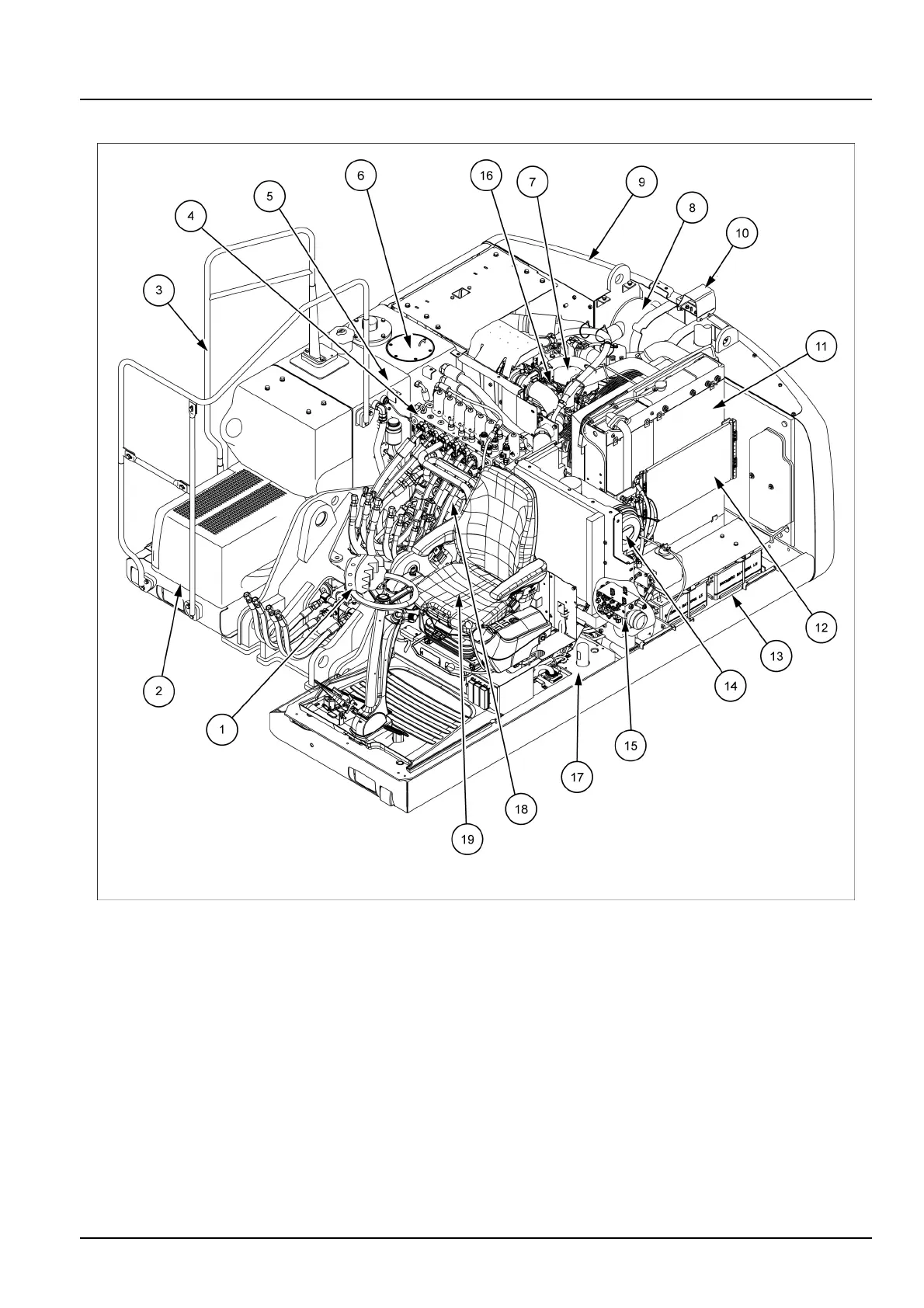

Upperstructuremaincomponents-internalview
SMIL12WEX0175GB3
1.
Slewingbearing
11.
Radiatorassy
2.
Refuelingpumpbox
12.
Condenser+dryer(conditioningairsystem)
3.Protectionhandrails13.Batteries
4.Mainvalve14.
Airlter
5.
Fueltank15.
Pilotcontrolassy
6.
Hydraulicoiltank
16.
Dieselengine
7.
Hydraulicpumps
17.
CabininstallationwithROPS(RollingOverProtection
System)
8.
Mufer
18.
Slewinggearbox
9.
Counterweight
19.
Operator’sseat
10.Rearviewcamera
47500167A31/01/2013
17
