CONTROLS AND INSTRUMENTS
2-47
OPERATOR’S SEAT
To operate the machine correctly with maximum effi-
ciency and comfort, the seat should be correctly
adjusted to suit the weight and height of the opera-
tor.
OPERATOR’S SEAT WITH PNEUMATIC
SUSPENSION
An electrically operated compressor installed in the
seat supplies the suspension of the seat suspension
and the air chambers of the backrest with com-
pressed air. Corresponding valves are installed in
the seat.

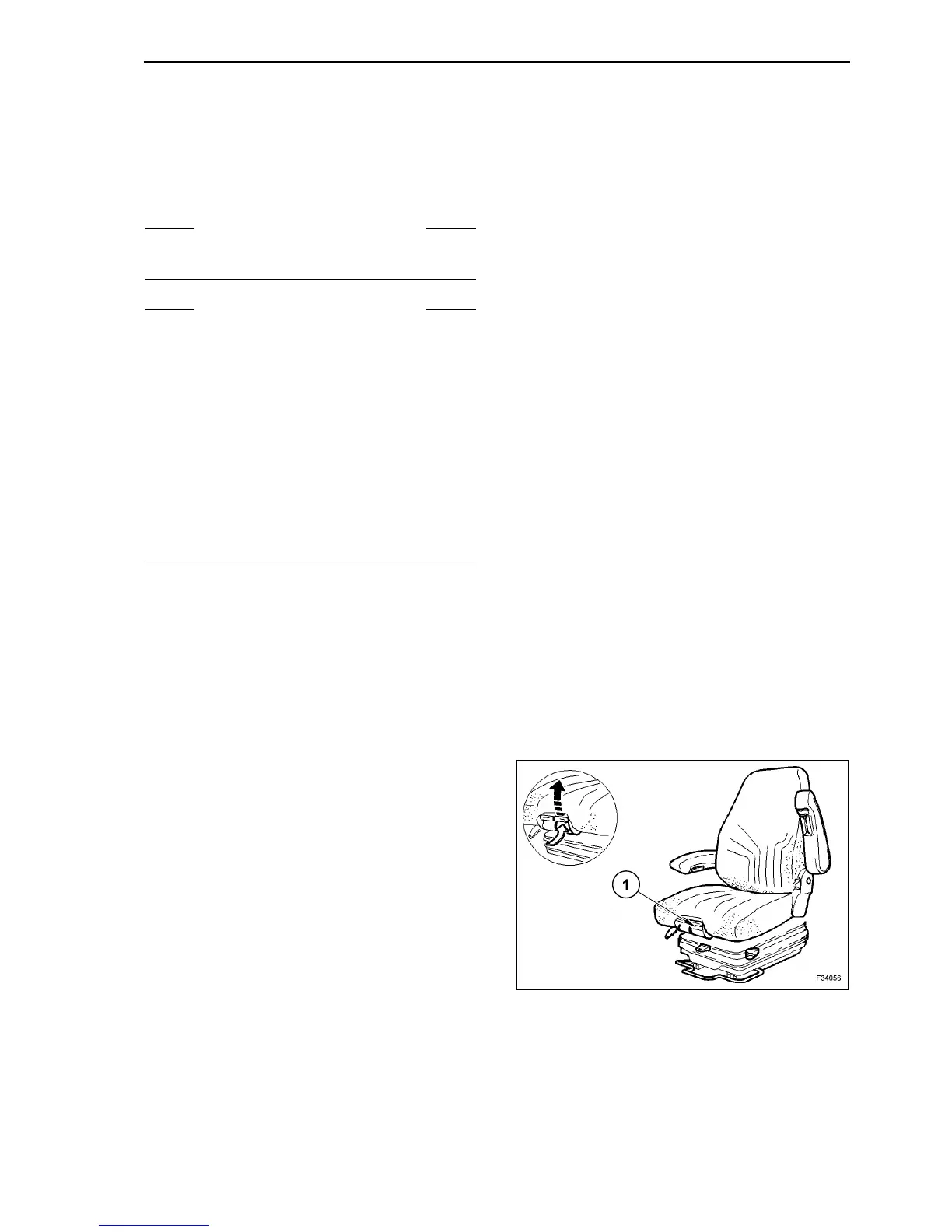

ADJUSTING THE SEAT CUSHION ANGLE
Pull handle (1) at front edge of seat upwards, adjust
seat cushion, engage handle (1).
Adjustment range 3° - 11°, in 4 steps.
S WARNING S
Before using the controls, make sure that the seat
is adjusted and positioned correctly.
S DANGER S
Never adjust the seat while travelling, because you
must concentrate on the road.
Before adjusting the seat:
- stop the machine;
- position the button of travel direction to idle;
- activate the parking brake.
The locking levers for fore-and-aft adjustment and
for backrest adjustment must engage in the
required position.
After locking, the operator’s seat and the backrest
can no longer be moved into other positions.
56
