FRONT WINDOW
The front window can slide in the back of the cabin
under the roof.
Roll up the sunblind.
Bring the screen wiper to basic position (fully to the
left).

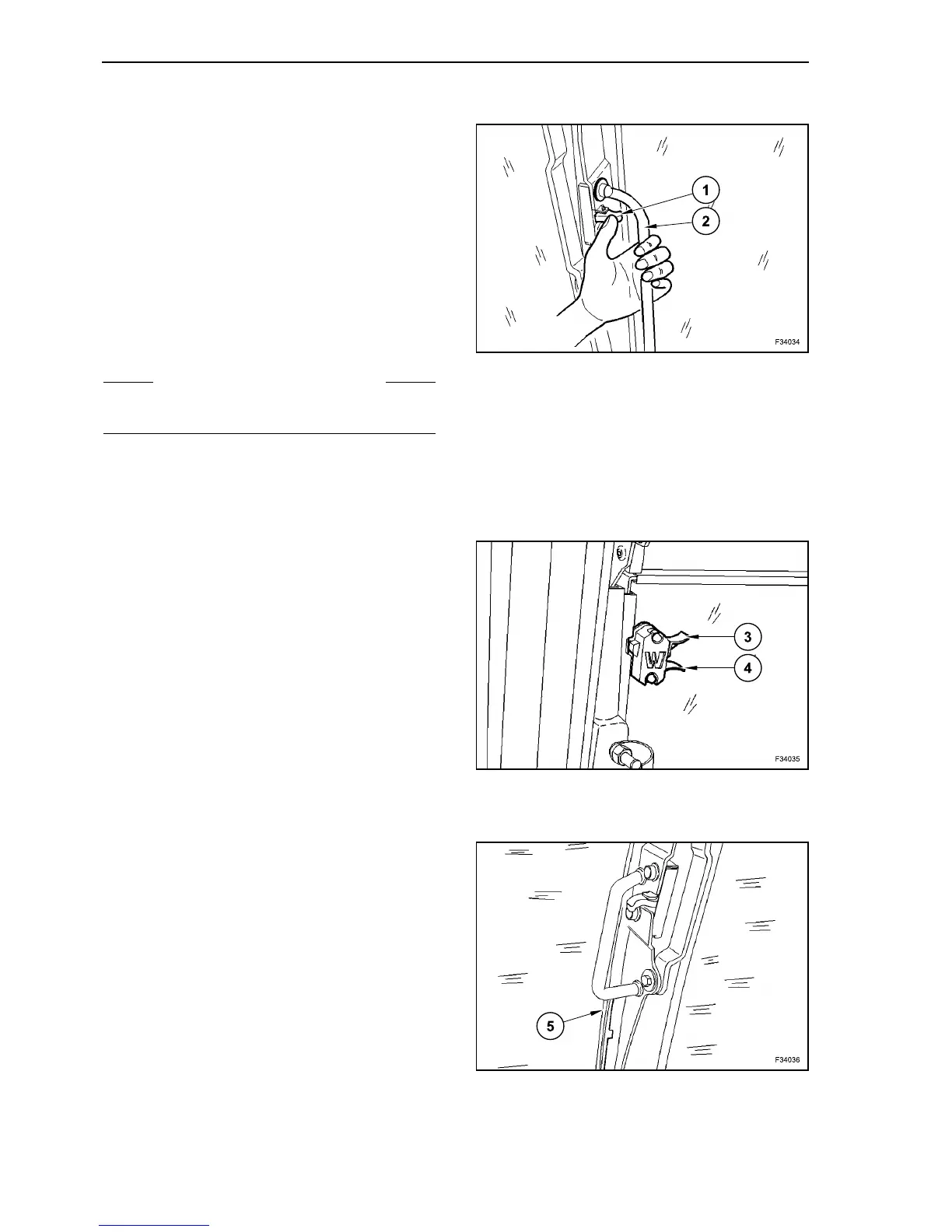

Grab both handles (2) at the front window (left and
right side) and push lock levers (1) forwards.
Tilt front window inwards and slide back upwards to
the stop.
Release the locks (1). They lock the window.
Make sure that both locks are properly engaged.
The lower segment of the front window, when
closed, can be moved to “Ventilation” or “Opening”
position.
VENTILATION
Loosen the left and right locks of the lower front win-
dow, by depressing and holding the upper lever (3)
downwards against the handle (4).
Slide lower front window segment downwards to the
stop. Creating a 3.5 cm (1.38 in) wide slot, to allow
the cab ventilation.
Release lever (3) on the left and right.
OPENING
Roll up the sunblind.
Loosen the left and right locks of the lower front win-
dow, by depressing and holding the upper lever (3)
downwards against the handle (4).
Slide lower front window segment by means of han-
dles (4) upwards in front of the upper segment of the
front window and let levers (3) engage in the
notches (5).
In the open position, the lower segment together
with the upper segment of the front window can be
pushed under the cab roof.
S WARNING S
If the locks are not properly engaged, the front win-
dow may move forward under high vibration.
