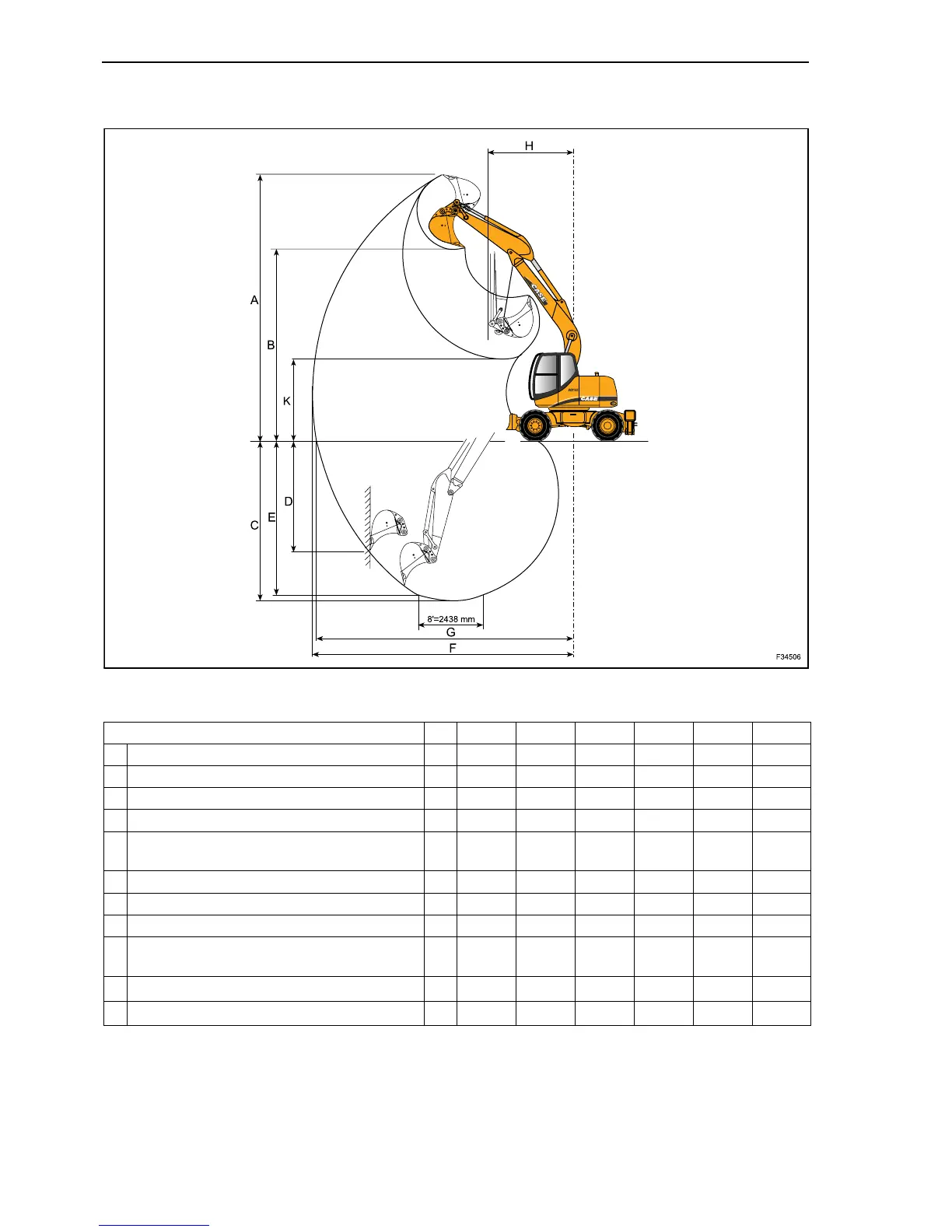

OUTFIT WITH MONOBOOM
Dipper mm in 2000 78.74 2300 90.55 2600 102.36
A Maximum digging height mm in 8400 330.71 8300 326.77 8500 334.64
B Maximum loading height mm in 6000 236.22 6000 236.22 6200 244.09
C Maximum digging depth mm in 4800 188.98 5100 200.79 5400 212.60
D Maximum vertical wall digging depth mm in 3000 118.11 3000 118.11 3200 125.98
E
Maximum digging depth of cut for level
bottom (L = 2438 mm (95.98 in))
mm in 4500 177.16 4800 188.98 5100 200.78
F Maximum digging reach mm in 8200 322.83 8400 330.71 8700 342.52
G Maximum digging reach at ground mm in 8000 314.96 8200 322.83 8400 330.70
H Minimum swing radius mm in 3000 118.11 3000 118.11 3000 118.11
K
Maximum loading height (dipper
retracted)
mm in 2800 110.24 2500 98.42 2200 86.61
F
1
Bucket tensile force (370 bar (5366 psi))
kN lbf 95.2 21402.9 95.2 21402.9 95.2 21402.9
F
2
Dipper tensile force (370 bar (5366 psi))
kN lbf 68.2 15332.7 62.4 14028.7 57.4 12904.6
