page 1-16 Part 1. Operation Manual Rev. 03-2004
Bill Acceptor FL Series Service Manual
MODULAR SYSTEM

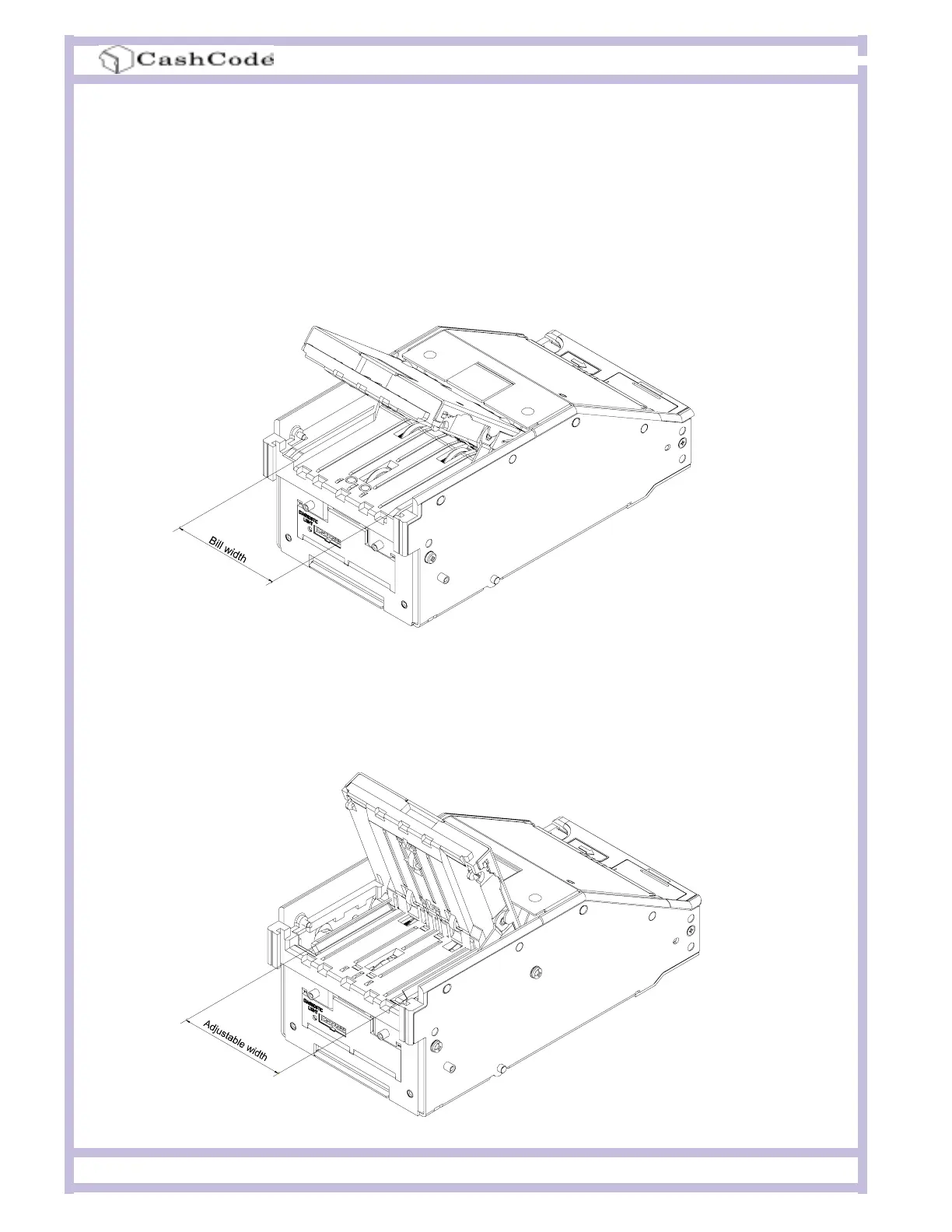

The Validating Head has the following options:
1) The Validating Head with a fixed-width path is available for bill widths 62, 64, 66, 68, 70, 72,
74, 76, 78, 80 and 82 mm.
2) The Validating Head with a centering mechanism has a self-adjustable bill path. The width
of the path is automatically adjusted to accommodate each bill. This type of Validating
Head is used for currencies where the width of the bill changes with the denomination.
VALIDATING HEAD
A Modular System is an interchangeable group of parts – easily configured to a user’s specifications.
Below is a more detailed description of each module and its features.
