LOCK INSTALLATION TO BILL VALIDATOR BASE (600 BILLS)

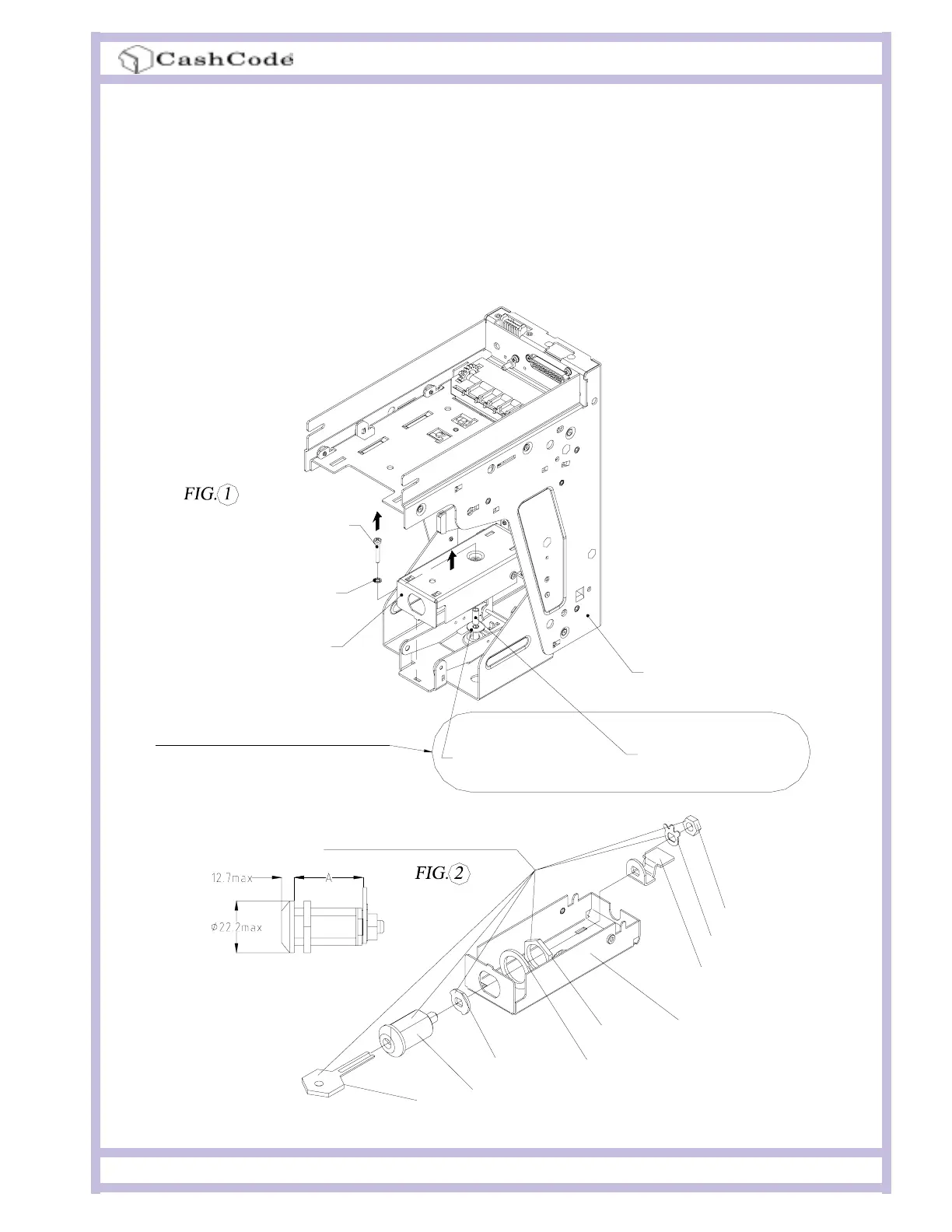

Step #1. Remove the Screw and Lock Washer from the Lock Cover. DO NOT DISCARD!
(FIG. 1)
Step #2. Remove and discard the Washer and Spacer (FIG. 1)
Step #3. Install the Lock and parts as shown in FIG. 2
Step #4. Reinstall the Cover, Screw and Lock Washer that were removed in Step #1 (see Fig.3)
NUT
WASHER
(5110035)
COVER
(0100186)
KEY
LOCK
WASHER
"BUTTite" Rolled Spacer
SPAENAUR No 607-070
(8208998)
Steel Flat Washer
SPAENAUR No 656-057
(8203999)
A=from / " to 1 / "
1
8
5
8
Parts belonging to the lock assembly
COVER ASS'Y
(0100186)
Lock Washer M3,
Internal Tooth, Zinc
(8203002)
Parts for transportation only,
to be removed when lock installed
HEX NUT
WASHER
CAM
(5110049)
FL HOUSING
Screw M3x16, Pan Head, Zinc
(8201955)
