Rev. 03-2004 Part 1. Operation Manual PAGE 1-35
FrontLoad Bill Validator Series - Operation and Service Manual

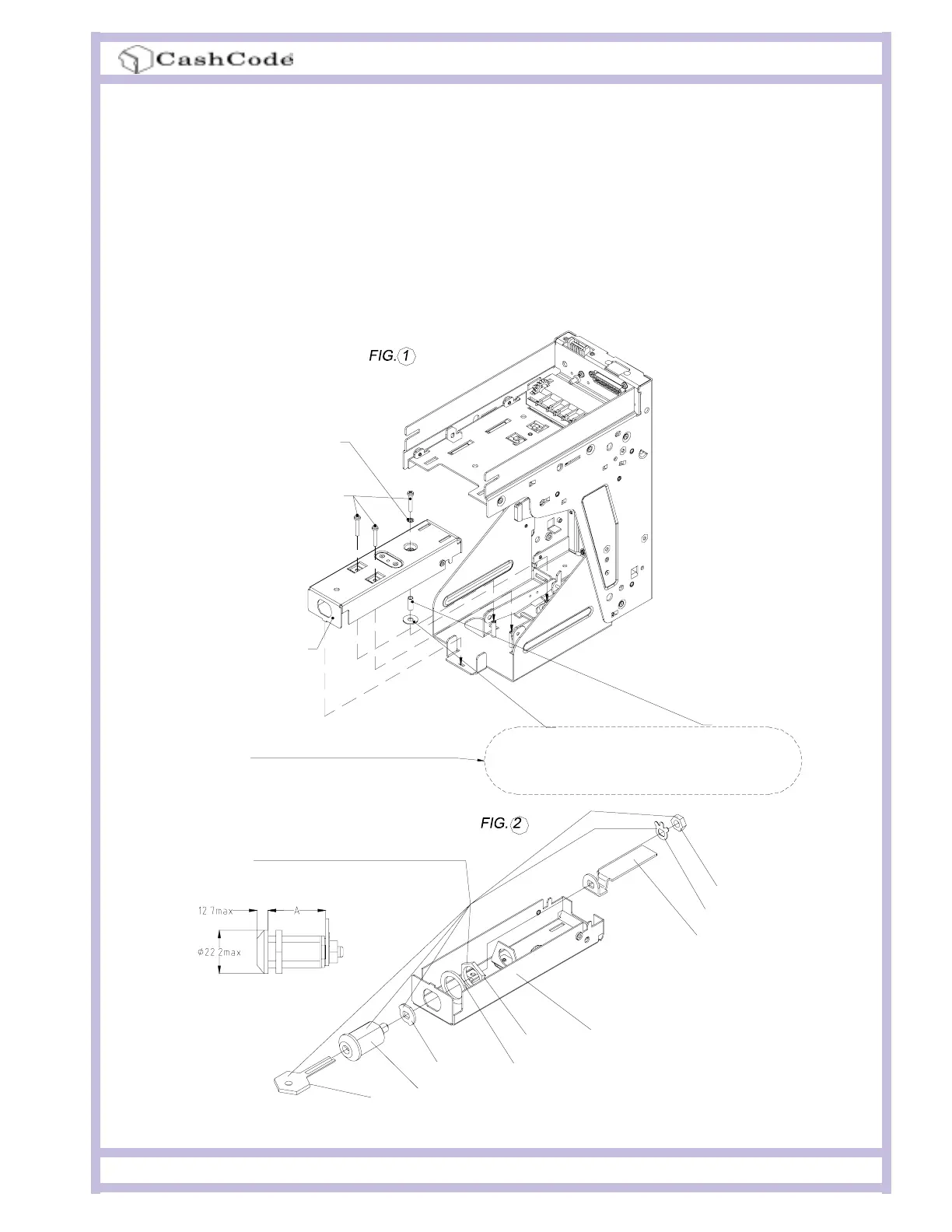

LOCK INSTALLATION TO BILL VALIDATOR BASE (1000 BILLS)
Step #1. Remove the Screw and Lock Washer from the Lock Cover. DO NOT DISCARD!
(FIG. 1)
Step #2. Remove and discard the Washer and Spacer (FIG. 1)
Step #3. Install the Lock and parts as shown in FIG. 2
Step #4. Reinstall the Cover, Screw and Lock Washer that were removed in Step #1 (see FIG. 3)
Parts for transportation only,
to be removed when lock installed
LOCK
Parts belonging to the lock assembly
Lock Washer M3,
Internal Tooth, Zinc
(8203002)
8
8
15
A=from / " to 1 / "
KEY
COVER ASS'Y
(0100204)
Screw M3x16,
Pan Head, Zinc
(8201955) (3 pcs.)
NUT
WASHER
(5110035)
COVER
(0100186)
WASHER
"BUTTite" Rolled Spacer
SPAENAUR No 607-070
(8208998)
Steel Flat Washer
SPAENAUR No 656-057
(8203999)
CAM
(5110049-01)
HEX NUT
WASHER
To Next Page
