— 12 —
Connector (CN10)

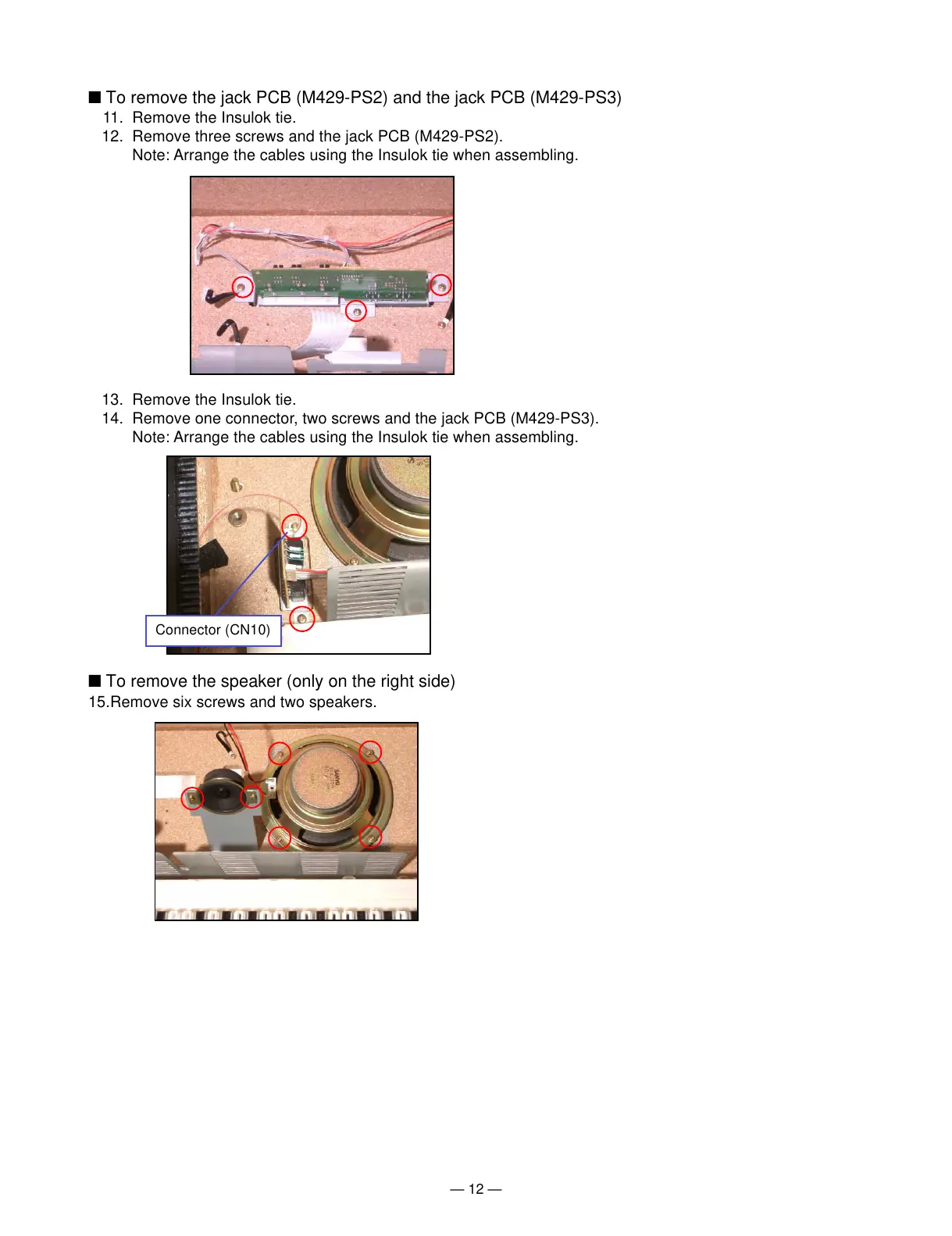

■ To remove the jack PCB (M429-PS2) and the jack PCB (M429-PS3)
11. Remove the Insulok tie.
12. Remove three screws and the jack PCB (M429-PS2).
Note: Arrange the cables using the Insulok tie when assembling.
13. Remove the Insulok tie.
14. Remove one connector, two screws and the jack PCB (M429-PS3).
Note: Arrange the cables using the Insulok tie when assembling.
■ To remove the speaker (only on the right side)
15.Remove six screws and two speakers.
