— 15 —

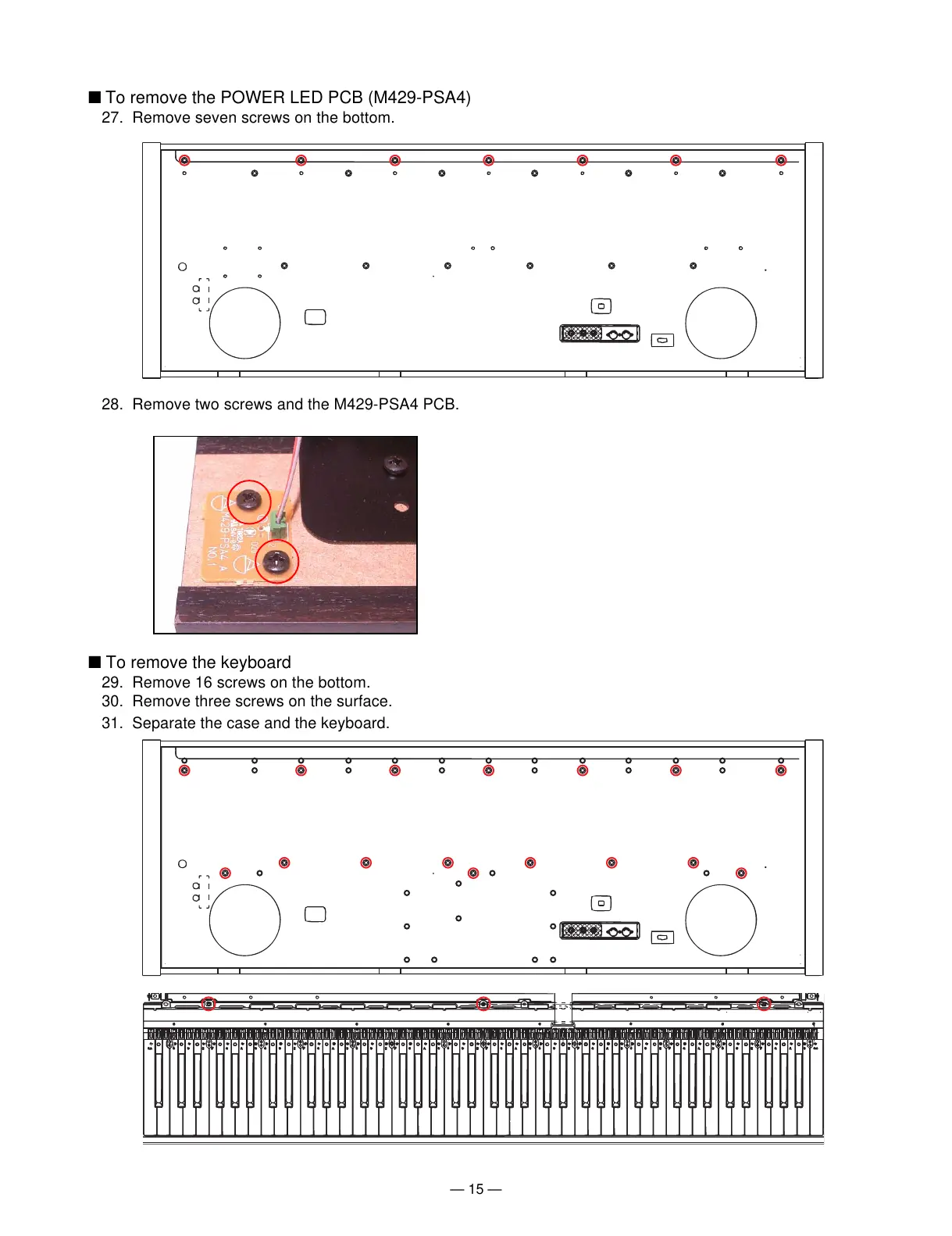

■ To remove the POWER LED PCB (M429-PSA4)
27. Remove seven screws on the bottom.
28. Remove two screws and the M429-PSA4 PCB.
■ To remove the keyboard
29. Remove 16 screws on the bottom.
30. Remove three screws on the surface.
31. Separate the case and the keyboard.
