— 69 —
12.
P
eel

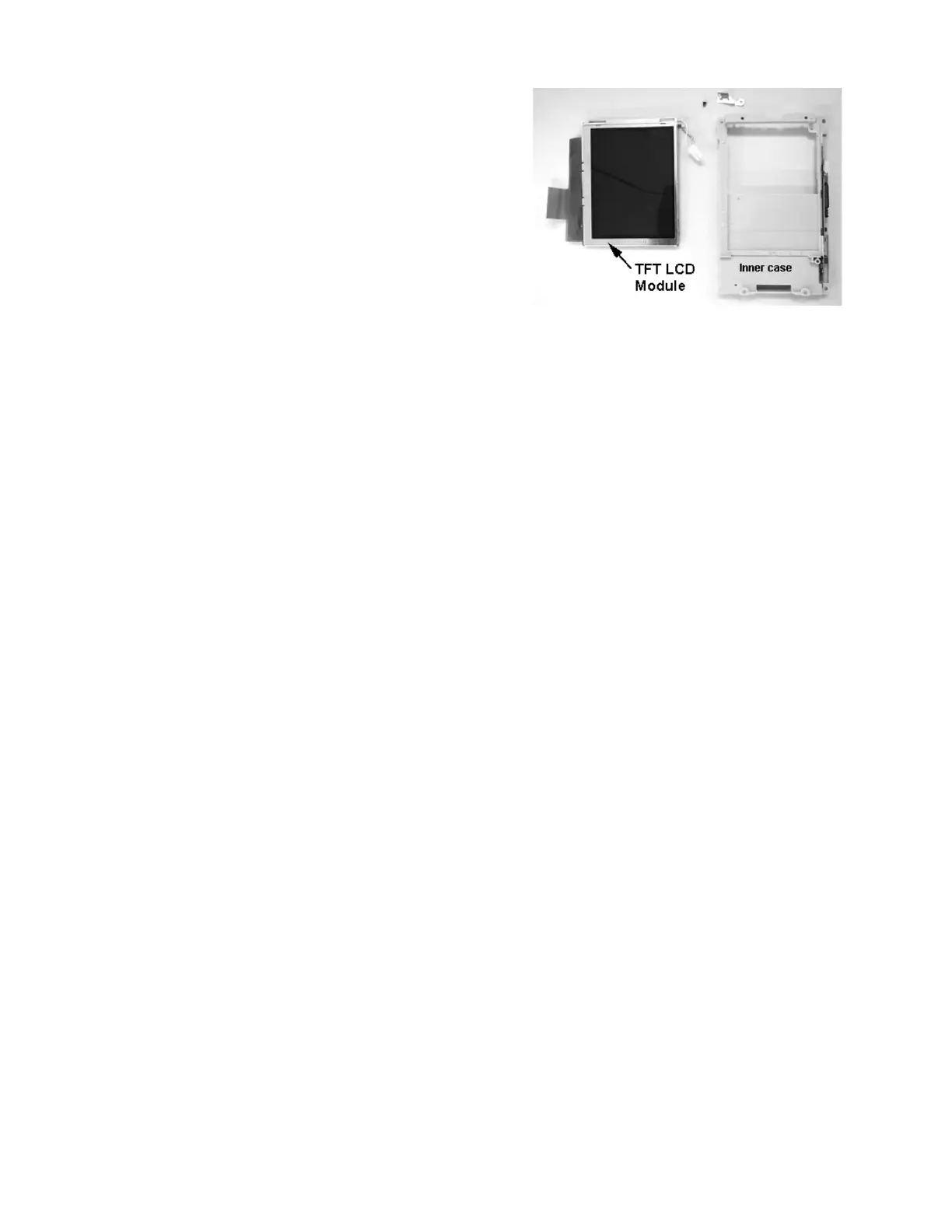

TFT LCD Module from the inner case
assembly as shown to the right.
At this time, tak
e care that this module is
damaged because this module is strongly
attached to the inner case.
Don't use any chemical substances to peel it.
Otherwise,
TFT LCD is damaged by these
substances.
71
73
Table of Contents
Table of Contents
2
Main Features
4
Specifications
5
Unpacking
7
Enclosed Products and Parts
7
Options
7
GENERAL GUIDE and INITIAL SETUP
12
General Guide
12
Initial Setup
24
RESET OPERATION and BATTERY REPLACEMENT
26
Reset Operation and FULL RESET
26
Battery Replacement
29
Data Communications
32
General
32
Connection to PC
32
Activesync 3.1 Synchronization PC LINK Software
34
BACKUP/RESTORE Using Activesync 3.1
34
Card Backup Tool
34
Mobile Communication
40
Infrared Communication
41
Adjustment
43
Operation Check
46
Preparation
46
How to Install the Diagnostic Program
46
How to Delete the Diagnostic Program
48
Operation Check
49
Troubleshooting
56
Circuit Block Diagram
58
Wiring Diagram
59
Schematic Diagrams
60
Main Block (1/3)~(3/3)
60
ROM Block
63
Key Block
64
USB Cradle
65
PCB VIEW (Main Block)
66
Disassembly Procedure
69
Parts List
73
Other manuals for Casio Cassiopeia E-125
Brochure
2 pages
Getting Started Guide
46 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Casio Cassiopeia E-125 and is the answer not in the manual?
Ask a question
Casio Cassiopeia E-125 Specifications
General
Brand
Casio
Model
Cassiopeia E-125
Category
Handhelds
Language
English
