Item Code No. Parts Name Specification Version Q R
KEYBOARD BLOCK
13 3501 5474 FFC connector 52045-2245 1 A
14 4306 1013 PCB E241-E3-2 (without components) E311071A-1 1 X
15 4308 1074 PCB E241-E4 (without components) E312009-1 1 C
16 6191 0102 Mode key switch ass'y E311288*1 1 C
17 6231 9577 PC joiner A E411356A-1 1 A
18 6231 9578 PC joiner B E411356A-2 1 A
19 6029 0326 Switch contact spring A4897C-1 1 C
Tapping screw (+) (for mode key) 2.6X8 ZMC-3.. 2 X
Screw with washer (for keyboard) 3X8 ZMC-3..... 6 X
20 6246 4790 FFC joiner E412212-2 1 A
21 6246 9616 Slide knob E311468A-1 1 X

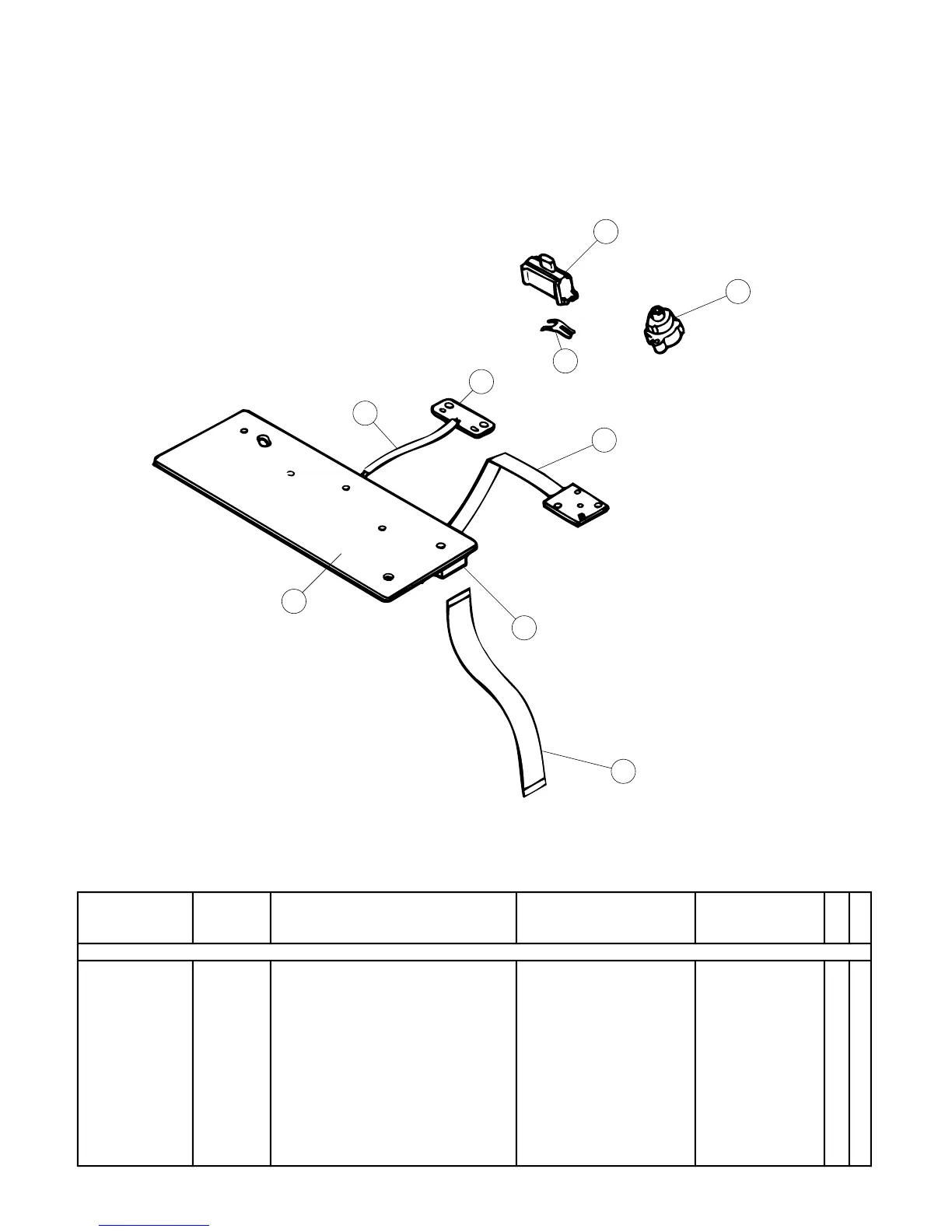

4. Keyboard block
