2 Installing the Keyboard onto
the Stand
CAUTION
Take care that you do not pinch your fingers between the
keyboard and stand!
Assembly Instructions
Be sure that you securely anchor the keyboard to the stand
using the H butterfly bolts (Figure 6).
• Slide the screws on the bottom of the keyboard into the
slots in the two angle brackets 8. Next, secure the keyboard
to the stand with two butterfly bolts H (Figure 7).
• The butterfly bolts keep the keyboard from falling from the
stand. Be sure that you always secure the keyboard with
the butterfly bolts.
3 Connecting the Pedal
Position the pedal plug as shown in Figure 8 and insert it
into the pedal connector on the bottom of the digital piano.
Secure the pedal cable to the upright of the stand using the
clips (Figure 8).

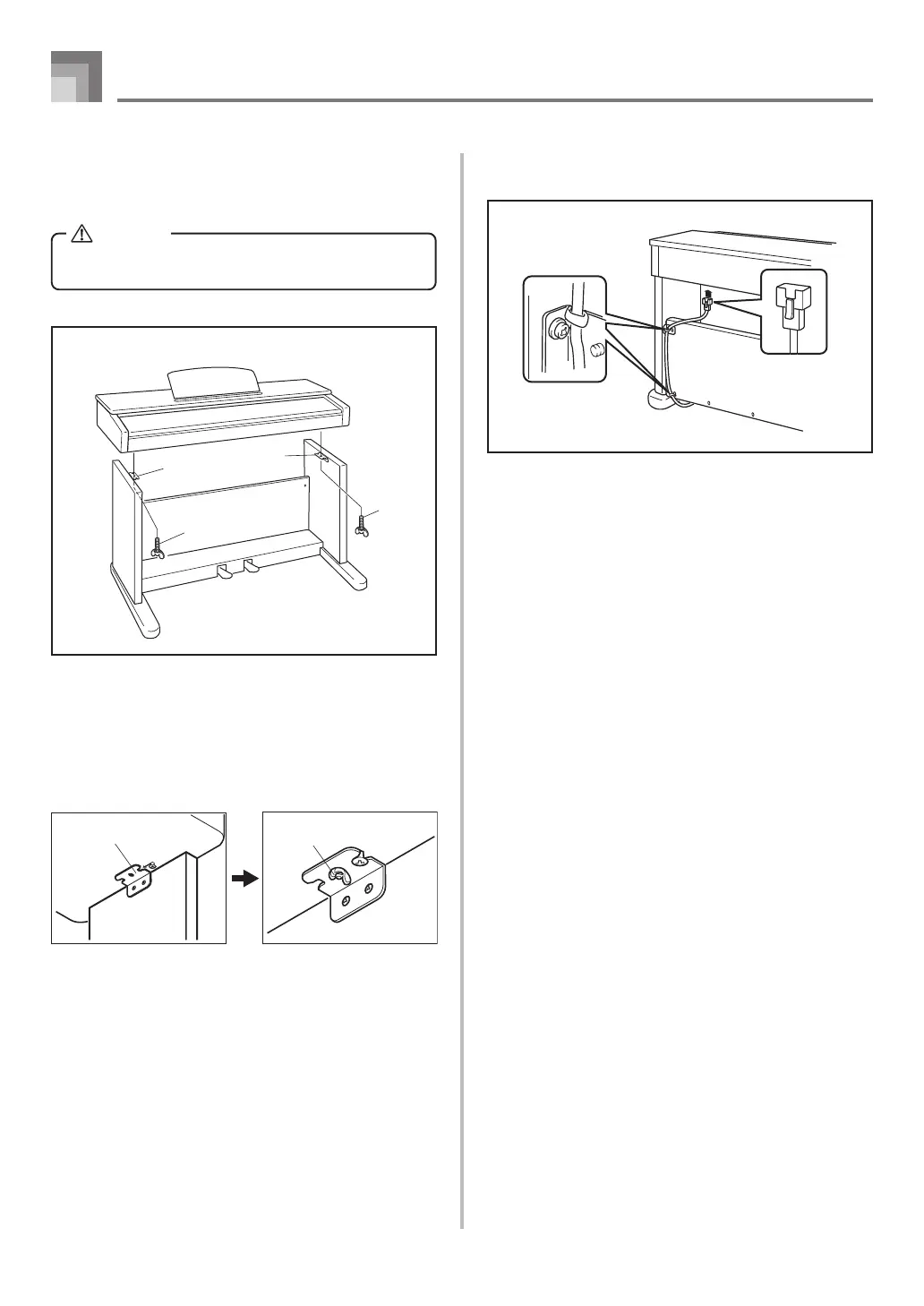

Figure 6
8
H
H
8
Figure 7
H
8
Front
Back
Figure 8
Clip
Pedal plug
420A-E-030A
