Casio CTK-4200 Service Manual

CTK-4200
– 25 –

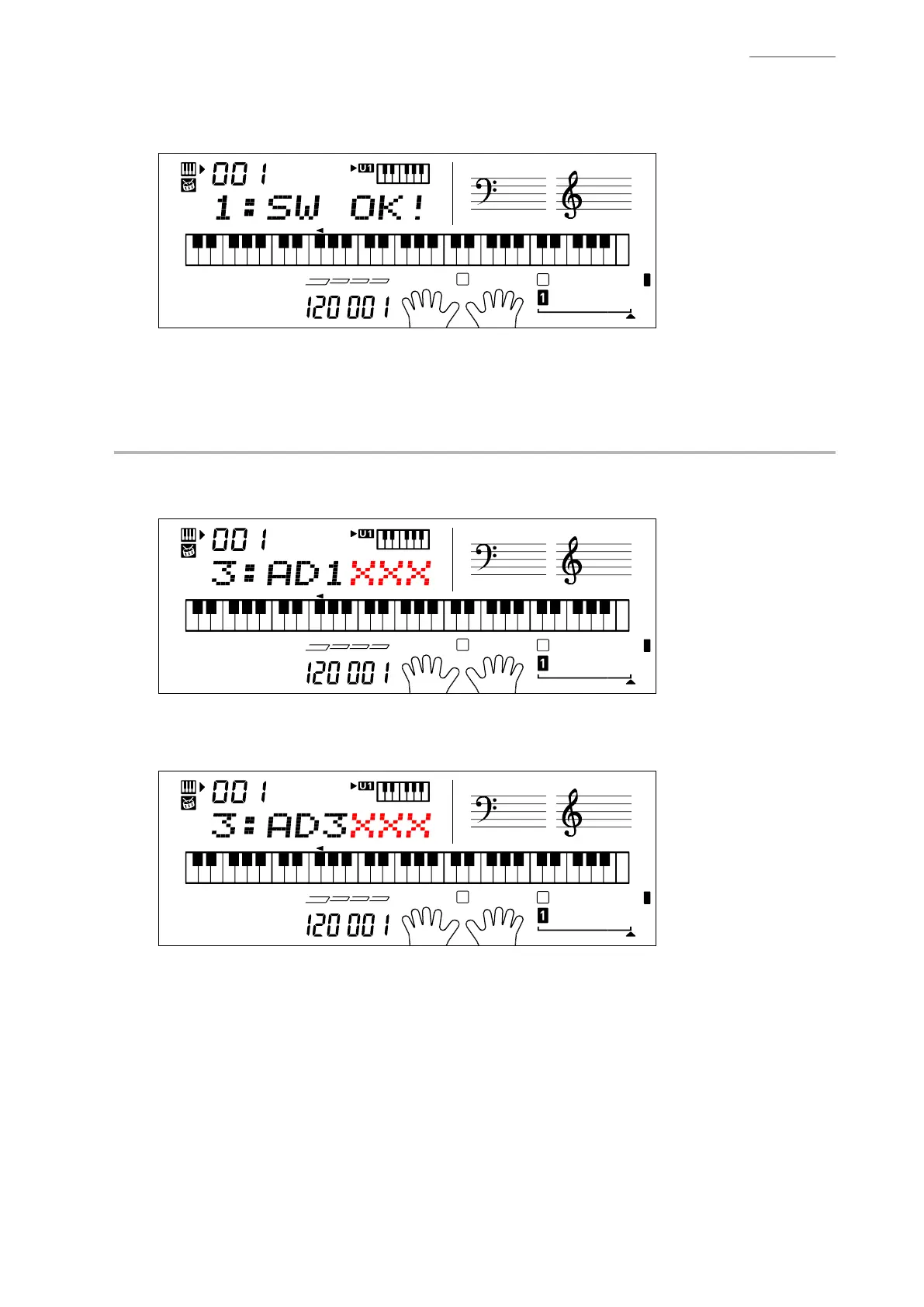

A-3. When the “+” button is pressed at the end, a conrmation chord sounds and “1:SW OK!” is
displayed on the LCD.
A-4. Check to see if the LCD is as shown below.
A-5. Press the “0” button to return to the main screen.
B. AC ADAPTOR CHECK
B-1. Press the “3” button to select the “AC ADAPTOR CHECK”.
B-2. Make sure that a value “XXX” shown in the illustration is in the range of 000 to 3FF.
B-3. Press the “3” button again.
B-4. Make sure that a value “XXX” shown in the illustration is in the range of 000 to 1FF.
B-5. Press the “0” button to return to the main screen.

Casio CTK-4200 Specifications

General

MIDI-keyboard number of keys	- keys
Interface	USB
Dimensions (WxDxH)	648 x 350 x 102 mm
Product color	Black, Silver

Weight and Dimensions

Weight	4599 g
