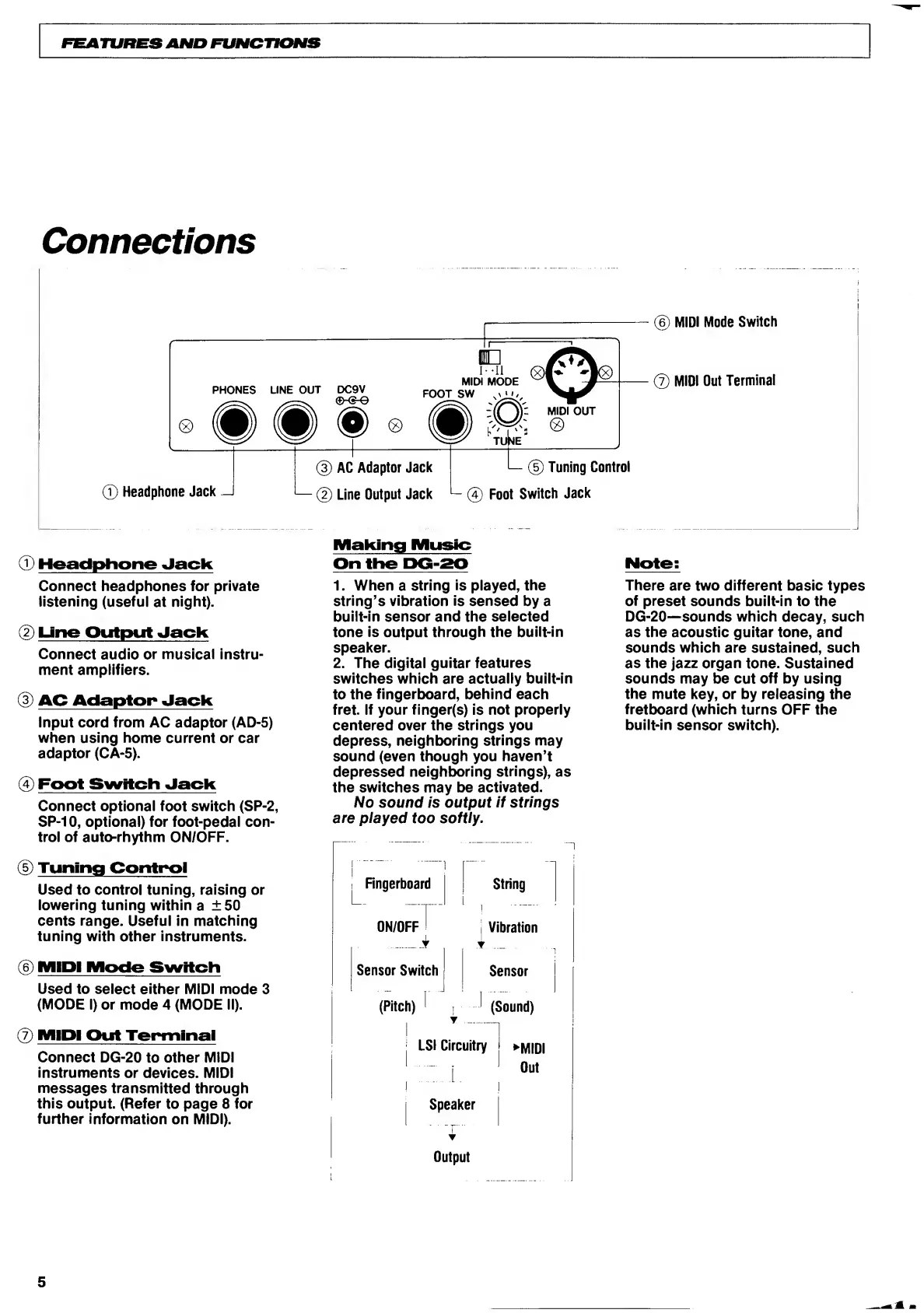

Connections
Connect
headphones
for
private
listening
(useful
at
night).
©
L
ine
Output
Jack
Connect
audio
or
musical
instru¬
ment
amplifiers.
©
AC
Adaptor
Jack
Input
cord
from
AC
adaptor
(AD-5)
when
using
home
current
or
car
adaptor
(CA-5).
©
Foot
Switch
Jack
Connect
optional
foot
switch
(SP-2,
SP-10,
optional)
for
foot-pedal
con¬
trol
of
auto-rhythm
ON/OFF.
©
Tuning
Control
Used
to
control
tuning,
raising
or
lowering
tuning
within
a
±
50
cents
range.
Useful
in
matching
tuning
with
other
instruments.
©
M
IDI
Mode
Switch
Used
to
select
either
MIDI
mode
3
(MODE
I)
or
mode
4
(MODE
II).
@
MIPi
Out
Terminal
Connect
DG-20
to
other
MIDI
instruments
or
devices.
MIDI
messages
transmitted
through
this
output.
(Refer
to
page
8
for
further
information
on
MIDI).
1.
When
a
string
is
played,
the
string’s
vibration
is
sensed
by
a
built-in
sensor
and
the
selected
tone
is
output
through
the
built-in
speaker.
2.
The
digital
guitar
features
switches
which
are
actually
built-in
to
the
fingerboard,
behind
each
fret.
If
your
finger(s)
is
not
properly
centered
over
the
strings
you
depress,
neighboring
strings
may
sound
(even
though
you
haven’t
depressed
neighboring
strings),
as
the
switches
may
be
activated.
No
sound
is
output
if
strings
are
played
too
softly.
There
are
two
different
basic
types
of
preset
sounds
built-in
to
the
DG-20—sounds
which
decay,
such
as
the
acoustic
guitar
tone,
and
sounds
which
are
sustained,
such
as
the
jazz
organ
tone.
Sustained
sounds
may
be
cut
off
by
using
the
mute
key,
or
by
releasing
the
fretboard
(which
turns
OFF
the
built-in
sensor
switch).
Fingerboard
String
L
.
-.r.
ON/OFF
Vibration
_
i
...
Sensor
Switch
Sensor
(Pitch)
1
T
'
(Sound)
i
LSI
Circuitry
Z".
i
Speaker
M
I
D
I
Out
Output
5
