DT-X200 Hardware Manual P.24

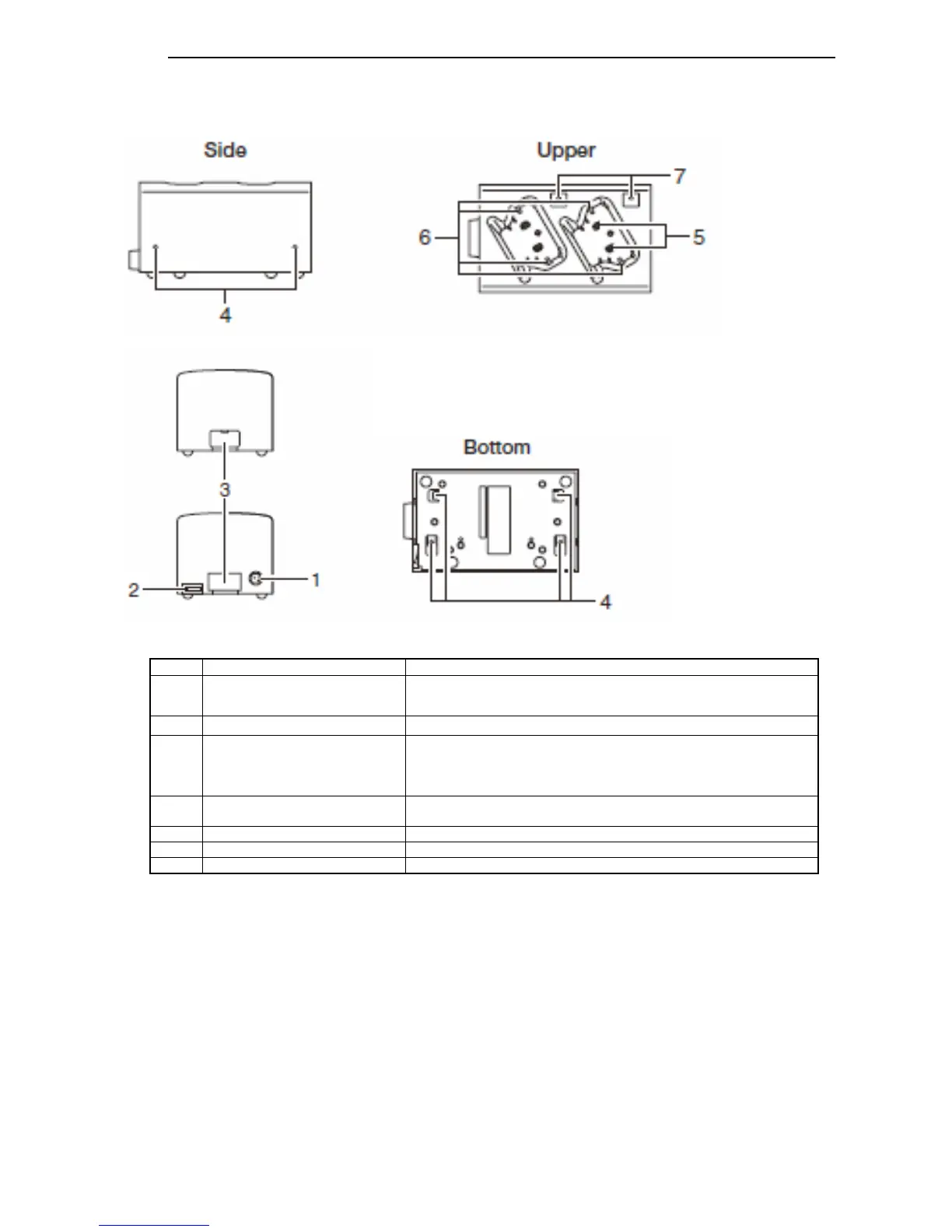

3.2.4. Cradle-type Dual Battery Charger
No. Name Description
1 AC Adaptor Jack This is used to supply power by connecting the dedicated AC
adaptor, AD-S90190C, here.
2 Power Switch Turns on and off the power.
Used to connect multiple Dual Battery Chargers each other. 3 Dual Battery Charger
Connection Port
4 Connection Bracket Attachment
Holes
The connection bracket attaches here when you connect multiple
Dual Battery Chargers.
5 Power Supply Terminals Power Supply Terminals
6 Cradle Mound Hooks Used to hook the terminal in the cradle.
7 Power LED This LED indicates the power status.
CAS
IO COMPUTER CO., LTD.
