DT-X200 Hardware Manual P.25

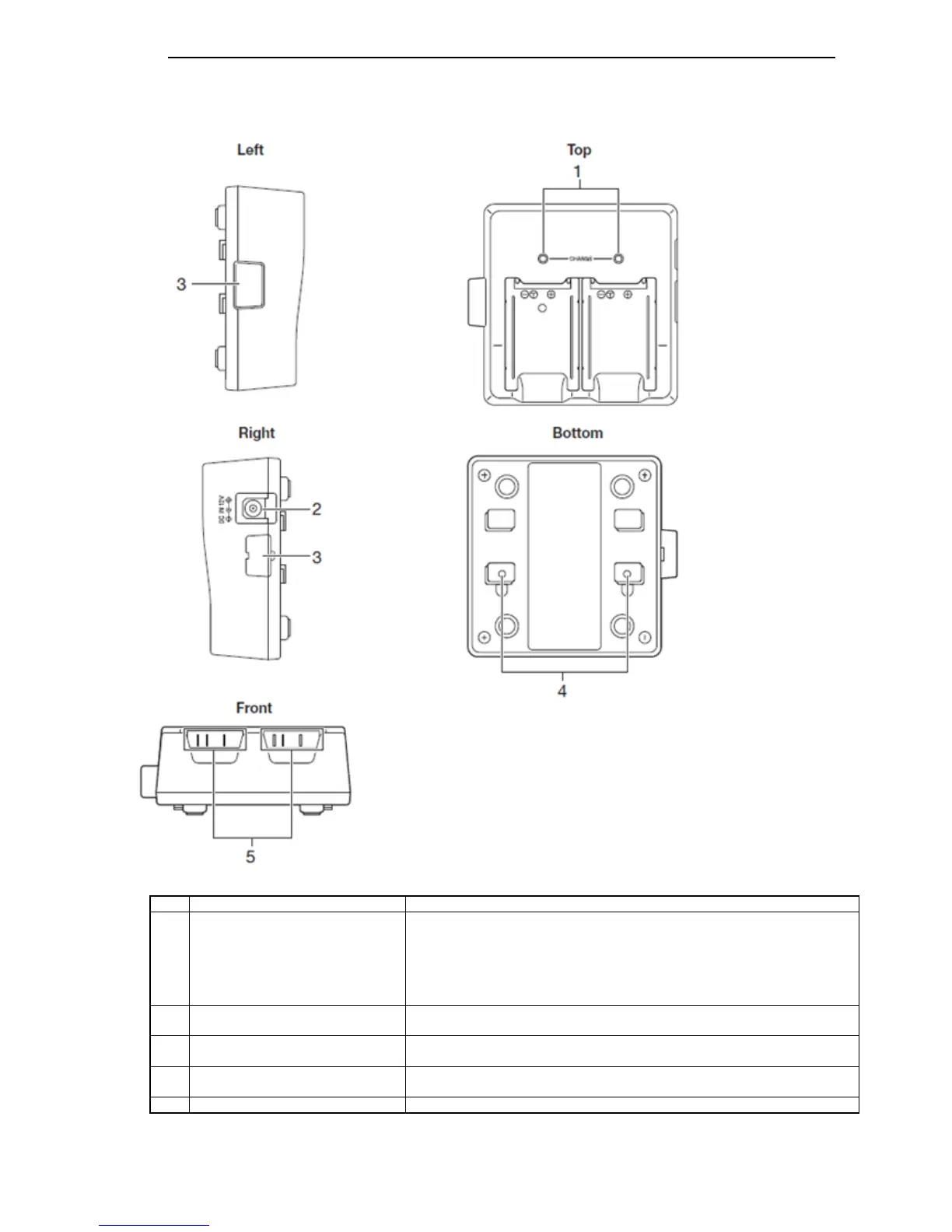

3.2.5. Dual Battery Charger
No. Name Description
This LED indicates the charge status of battery pack(s).
Off : Battery pack is not mounted.
Red : Charging.
Flashing Red : Problem on battery pack.
Green : Charging complete.
1 Charge Indicator LED
Flashing Green : Standby in the out of charging temperature(0 to 40)
2 AC Adaptor Jack This is used to supply power by connecting the dedicated AC adaptor,
AD-S42120B, here.
3 Dual Battery Charger Connection
Port
Used to connect multiple Dual Battery Chargers each other.
4 Connection Bracket Attachment
Holes
The connection bracket attaches here when you connect multiple Dual
Battery Chargers.
5 Power Supply Terminals Terminals to the Battery
CAS
