(4) Removing the EXT-UNIT
1. Remove the CAP-UNIT PCB.

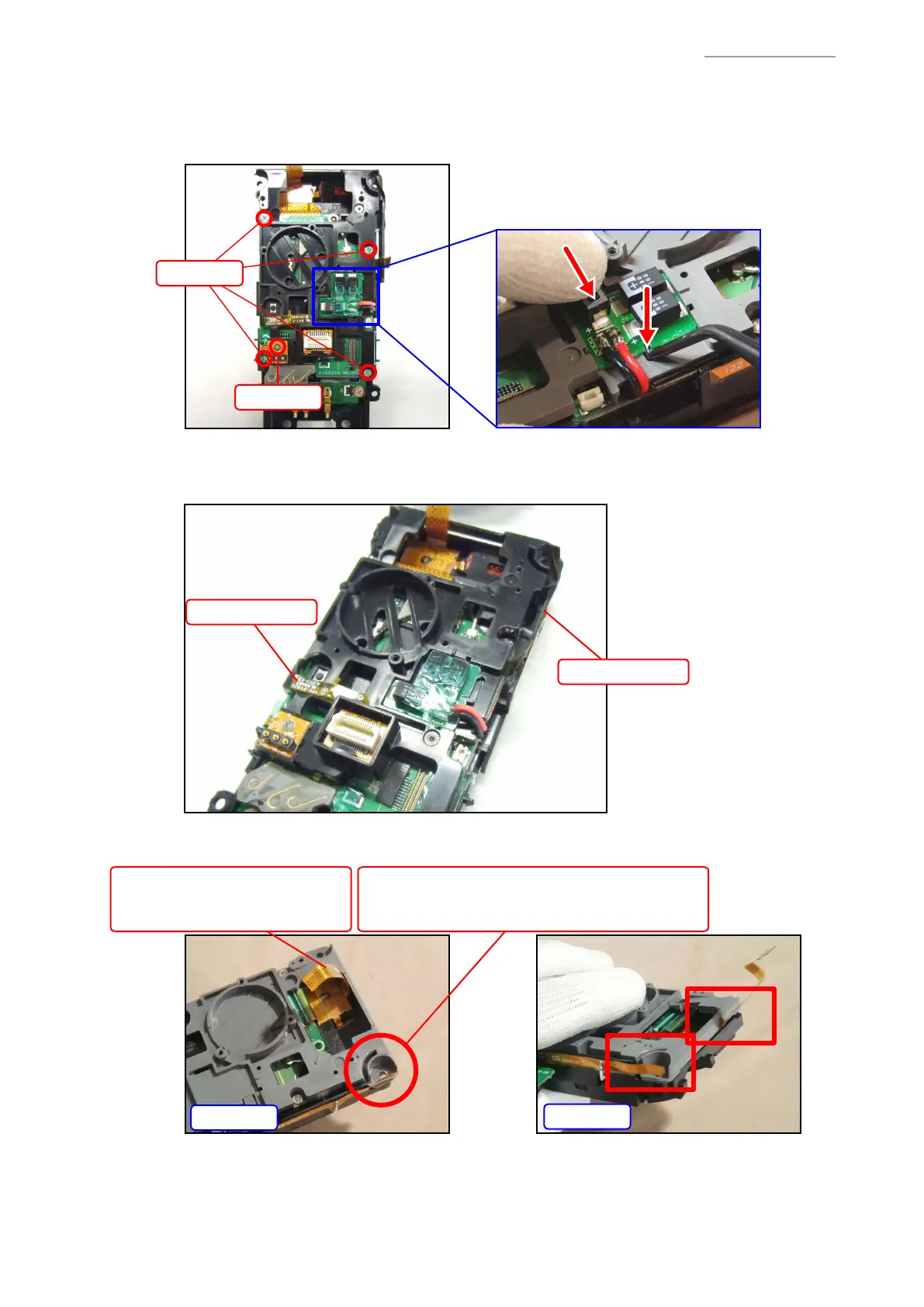

2. Remove the screws S1 (1 pce.) and S7 (4 pcs.).
Screw S1
Screws S7
3. Remove the SBAT-HOLDER while paying attention to the antennas (2 places).
Note:
Gently lift the SBAT-HOLDER as the antennas are connected to it.
Note on reassembling:
OK
NG
FPC
Note on reassembling:
Pass it into the SBAT-HOLDER.
Antenna
Note on reassembling:
Put the excess part in the groove of the I-CASE.
Antenna
Antenna
