– 56 –
DT-X200/DT-X8

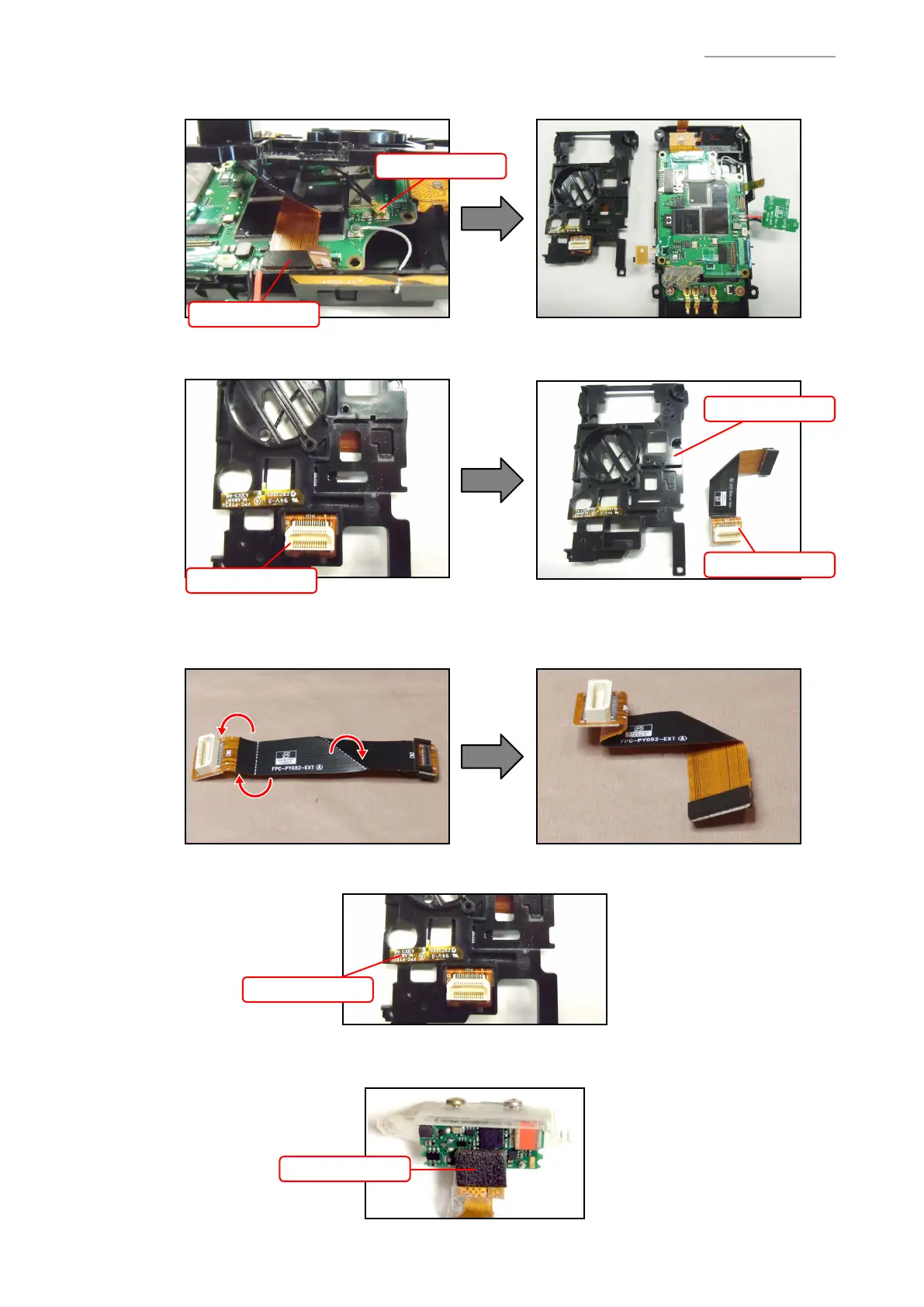

4. Disconnect the connector and antenna.
5. Remove the EXT-UNIT.
Note on reassembling:
• When the EXT-UNIT is replaced with a new one, form its shape as shown below.
• Attach the antenna to the position shown below.
• Attach the cushion on the connector.
Connector
Antenna
EXT-UNIT
EXT-UNIT
SBAT-HOLDER
Antenna
Cushion
