Separating the Middle Case from the Front Case
1. Remove the battery holder/battery pack (see page 9), separate the front and rear case assemblies (see page
10), remove the 1D laser assembly (see page 12) and remove the mainboard (see page 13).
2. Remove screws 1 & 2.
3. Apply pressure at points 3 & 4 to ease the middle case out of the front case .

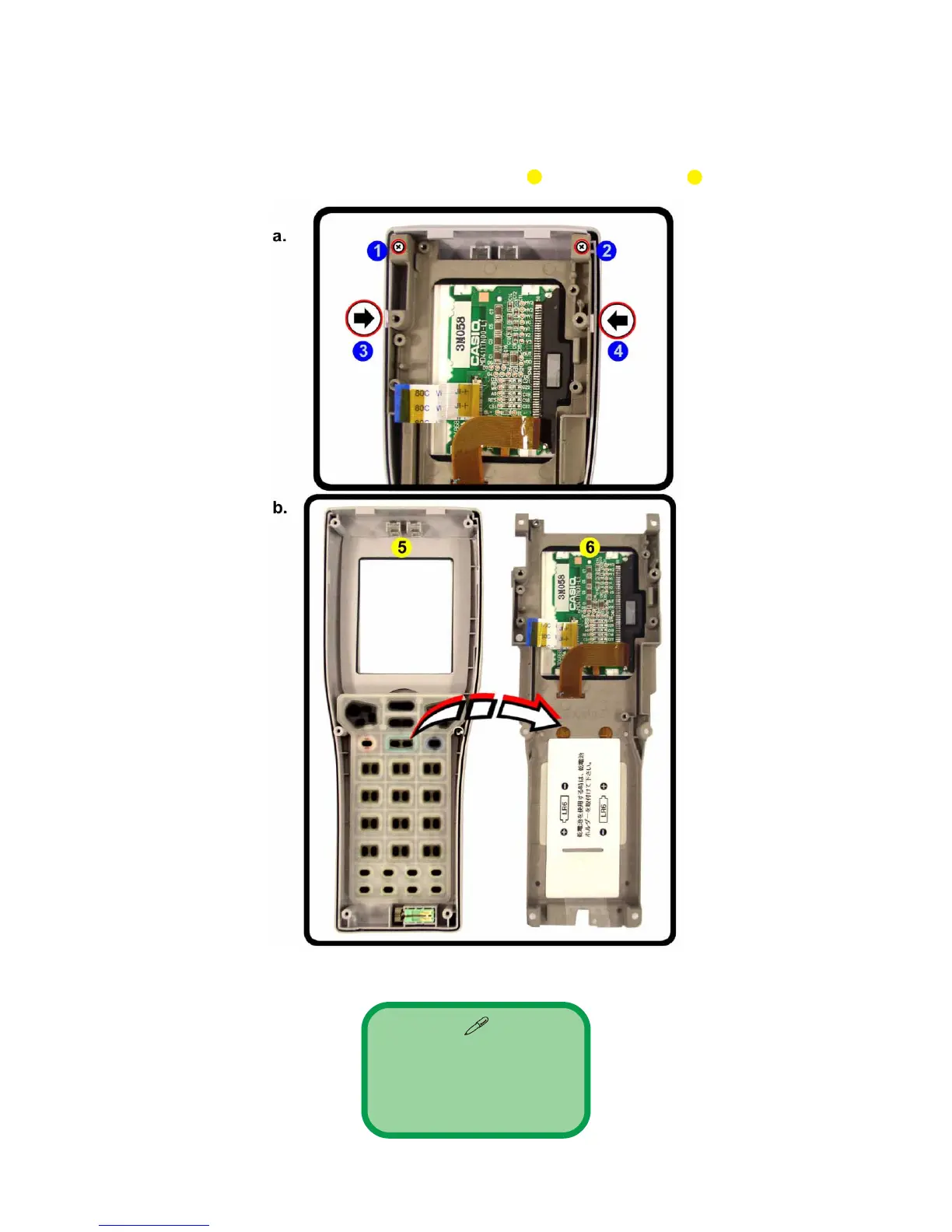

Figure 2 - 6 - Separating the Middle Case from the Front Case
5. Front Case
6. Middle Case
• 2 Screws
6
5
