— 23 —
No. Inspection Items
Target Models
Inspection Tool
Operation
M10E M10R Guide
1 IrDA
(*1)
O O HA-A60IO, Computer —
2 PSRAM O O P.24
3 ROM O O P.25
4 FlashDisk O O P.26
5 Buzzer O O P.27
6 Vibrator O O P.29
7 LED O O P.30
8 KEY O O P.31
9 Display O O P.32
10 Laser Scanner O O P.35
11 Sensor O O P.37
12 RTC O O P.38
13 Bluetooth O O Computer with Bluetooth Module P.39
14 Wireless LAN — O Computer, Access point P.42
4-4. Function Test
■ Inspection Item Table

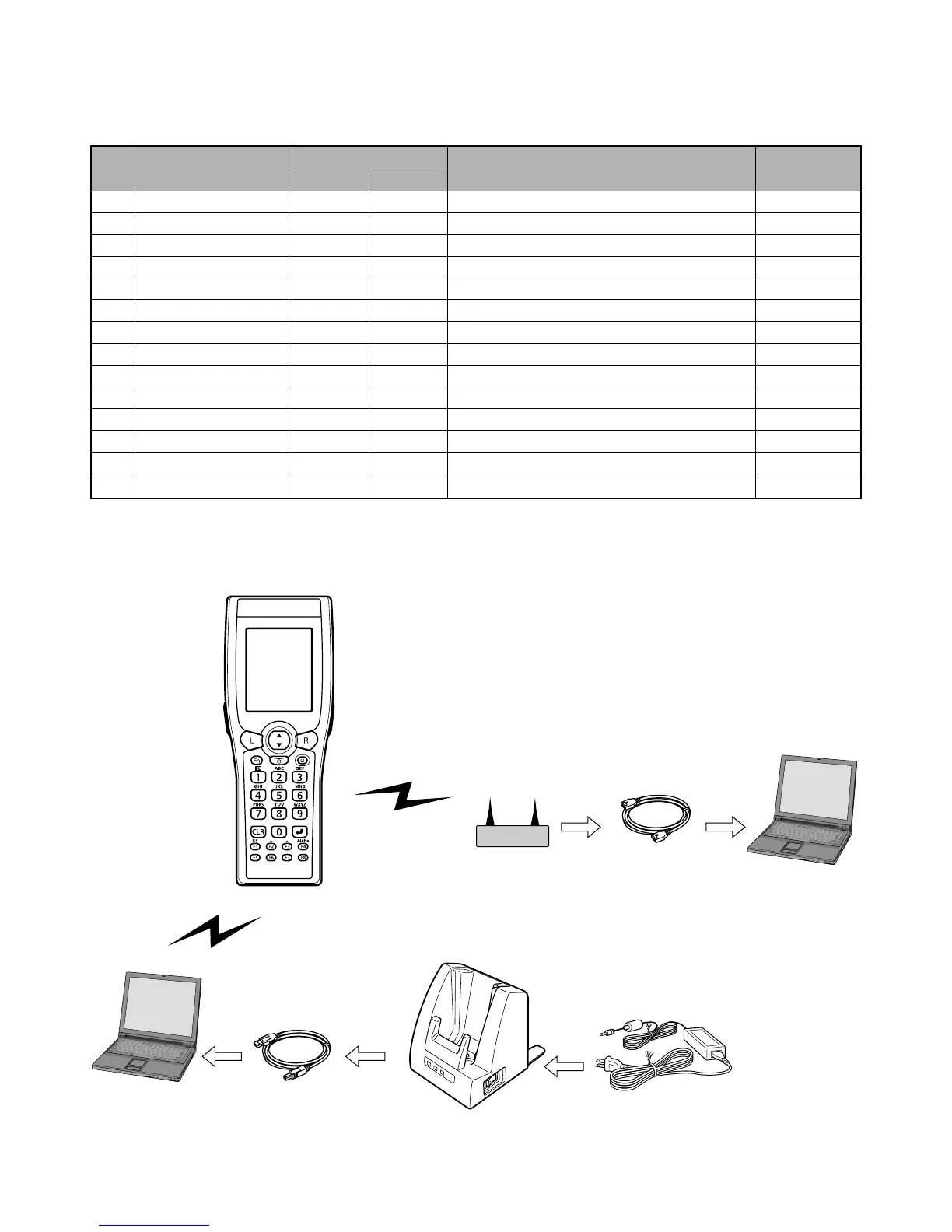

■ Composition Diagram for Testing
(*1) The status of IrDA inspection is to be “OK” if the hardware diagnostic program can be copied (refer to
page 19).
Test object DT-X5
HA-A60IO
Bridge Basic Cradle
USB cable
LAN cable
Computer with
Bluetooth module
AD-S42120AE
AC Adapter
Computer for
Access point
Wireless LAN
Bluetooth
Wireless LAN
Access point
