Casio EX-468 - Page 42

— 40 —
on-line
MAX : 15 m
Use Com1 port
R/J
R/J
R/J R/J
Register-1 Register-2 Register-3 Register-32
PC

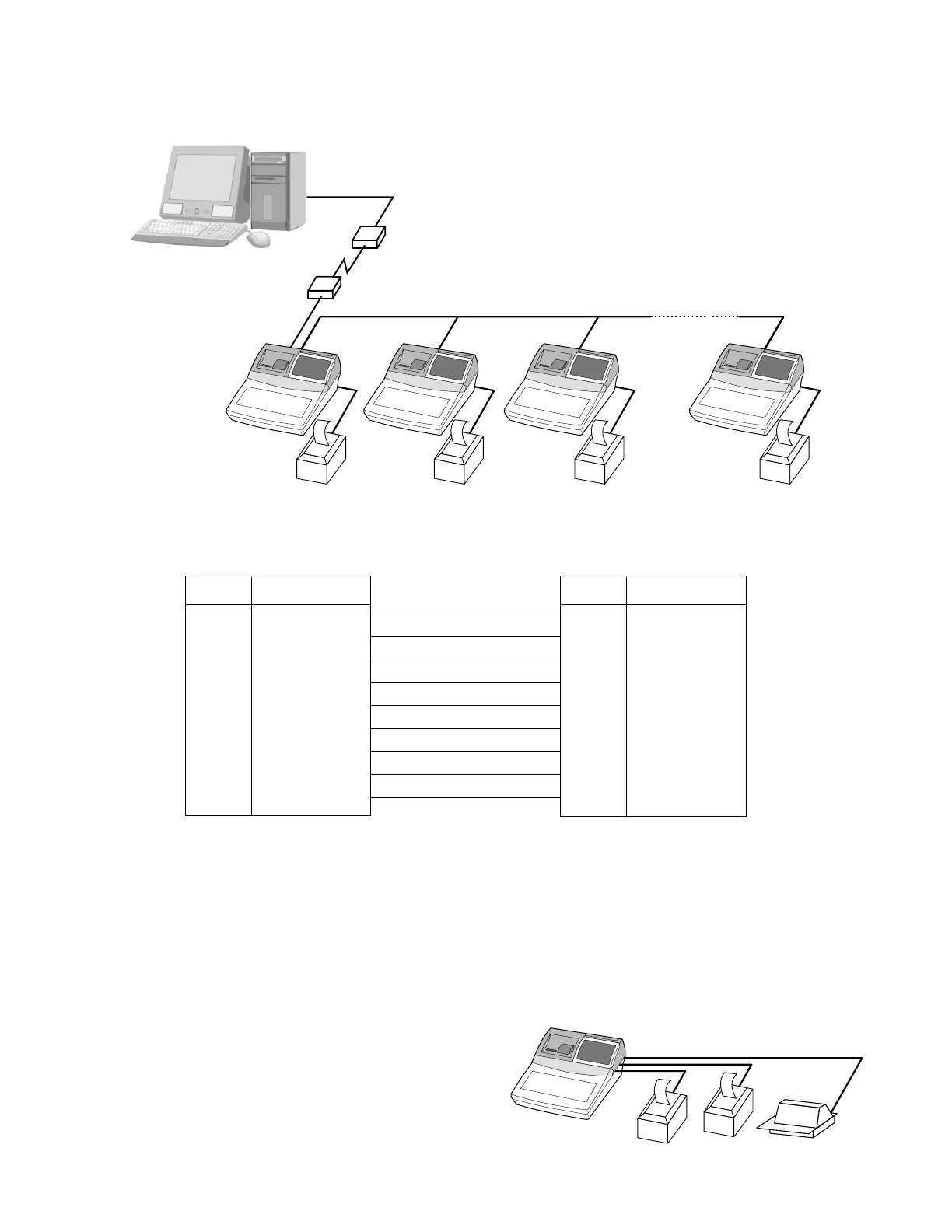

8-2. MODEM system
1 Connection layout
2 PC Cable wiring
Pin No. Signal name
3 SD/TXD
2 RD/RXD
7 RS/RTS
8 CS/CTS
1 CD/DCD
4 ER/DTR
6 DR/DSR
9 CI/RI
5 GND
TE-7000S/8000F/8500F (Com1) MODEM (DSUB25)
Pin No. Signal name
2SD
3RD
4RS
5CS
8CD
20 ER
6DR
22 CI
7 GND
8-3. PRINTER Connection
■ Three printers can be connected to TE-7000S/8000F/8500F.
Com2 ~ Com4 are used for ports.
1 Connection layout
Maimum connection number : Max. 3 printer
Note:The slip printer can be connected one unit only.
Register
Slip
R/J
R/J
