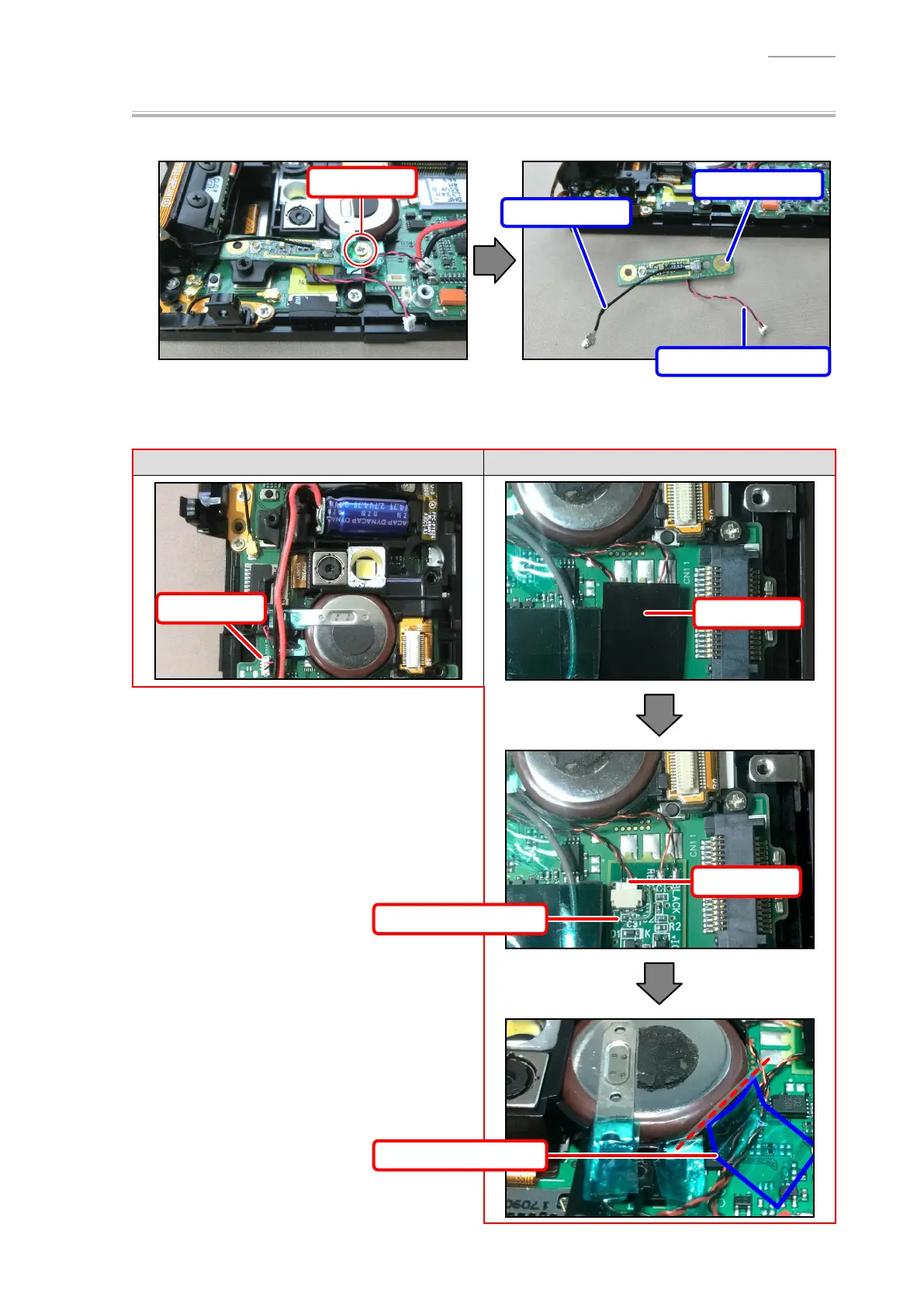

Replacing of the LNA-UNIT

Undo 1 screw and remove the LNA-UNIT.
GPS-CABLE
LNA-UNIT
CABLE/LNA-PW-PY22
Screw (S4)
(7) Remove the connector of the SUB-BATTERY.
Without PWB/SBAT With PWB/SBAT
Connector
Tape
Connector
Peel off tape.
PWB/SBAT
