Casio IT-G500

– 65 –

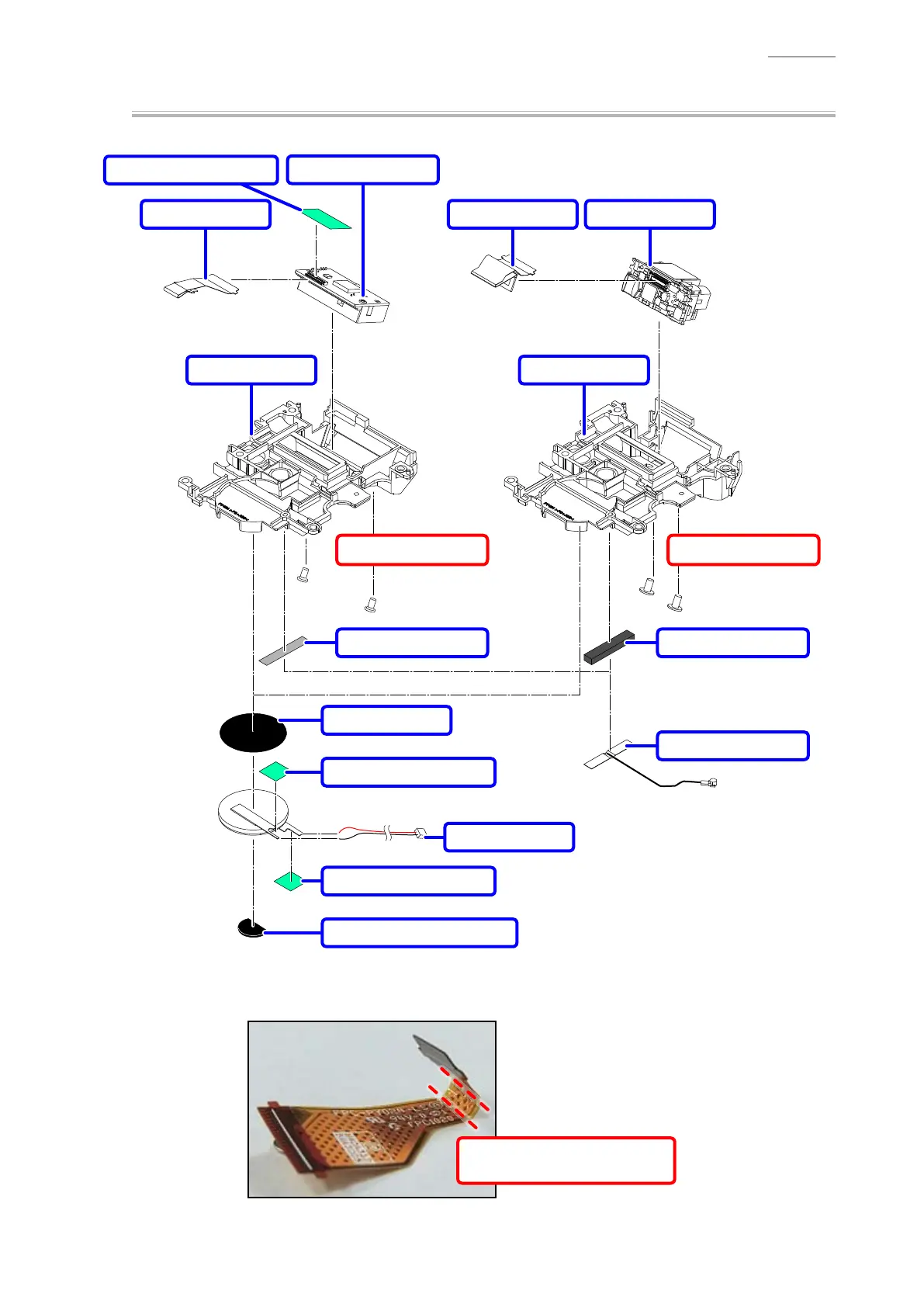

IT-G500
SCANNER-UNIT
LASER-MODULE
FPC/LASER
HOLDER/LASER HOLDER/2D
2D-UNIT 2D SCANNER
2 screws (S7) 2 screws (S8)
TAPE/WLAN SPACER/WLAN
WLAN-UNIT/5G
TAPE/SBAT
TAPE/CONNECTOR-A
TAPE/CONNECTOR-A
WIRE/SBAT
CUSHION/SUB-BATTERY
TAPE/CONNECTOR-A
[ Note on reassembling ] FPC/LASER
When it is replaced with a new 1, form the FPC into shape.
Reference lines
(Silk printing)
