Casio IT-G500

– 66 –
IT-G500

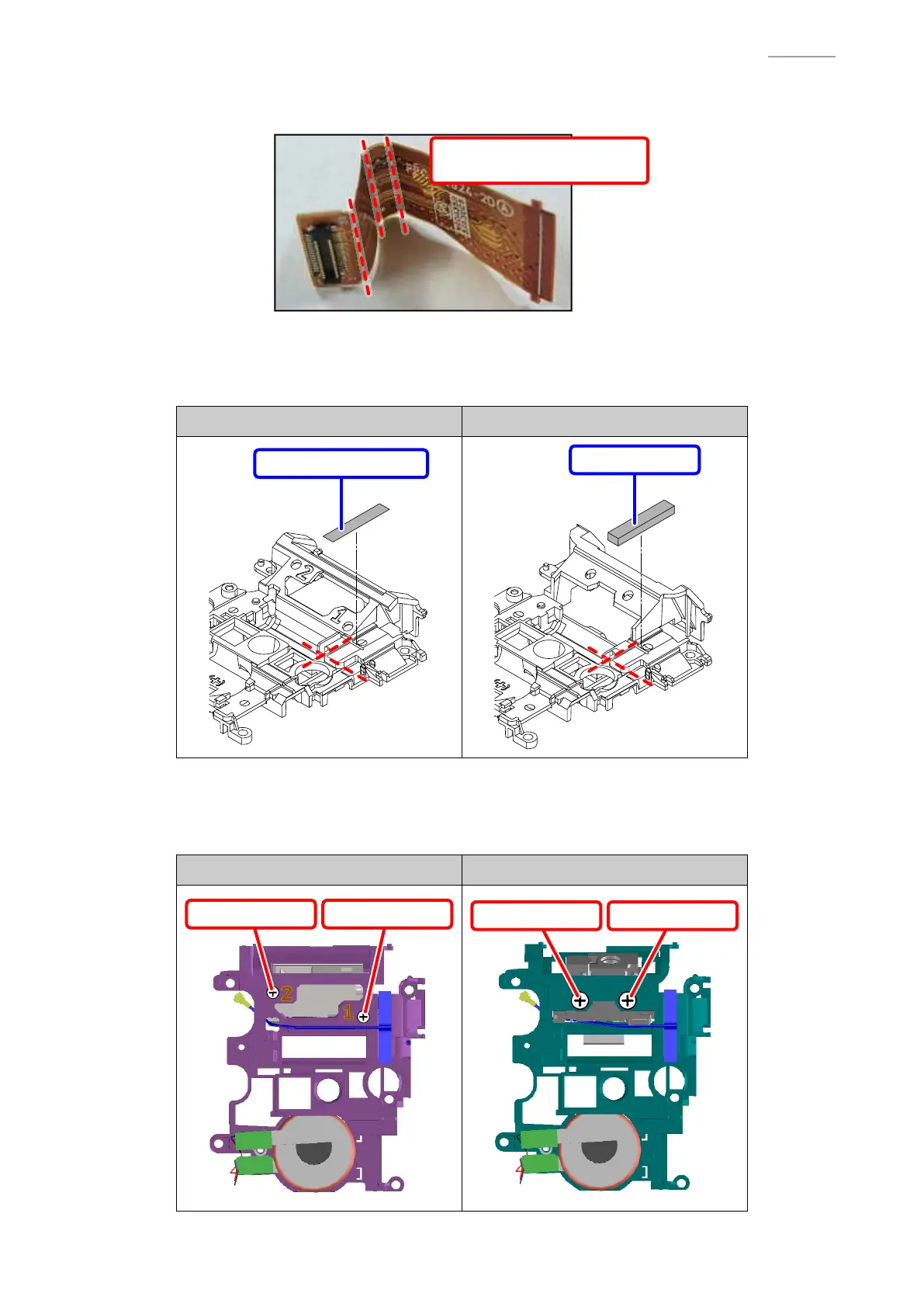

[ Note on reassembling ] 2D-UNIT
When it is replaced with a new 1, form the FPC into shape.
Reference lines
(Silk printing)
[ Note on reassembling ] D-TAPE/WLAN, SPACER/WLAN
Reference positions for attaching the new parts.
Laser model, Non-Scanner model 2D model
D-TAPE/WLAN
SPACER/WLAN
[ Note on reassembling ]
Tightening screws
Tighten the screws in the order indicated by the numbers below.
Laser model, Non-Scanner model 2D model

Screw (S7)

Screw (S7)

Screw (S8)

Screw (S8)
