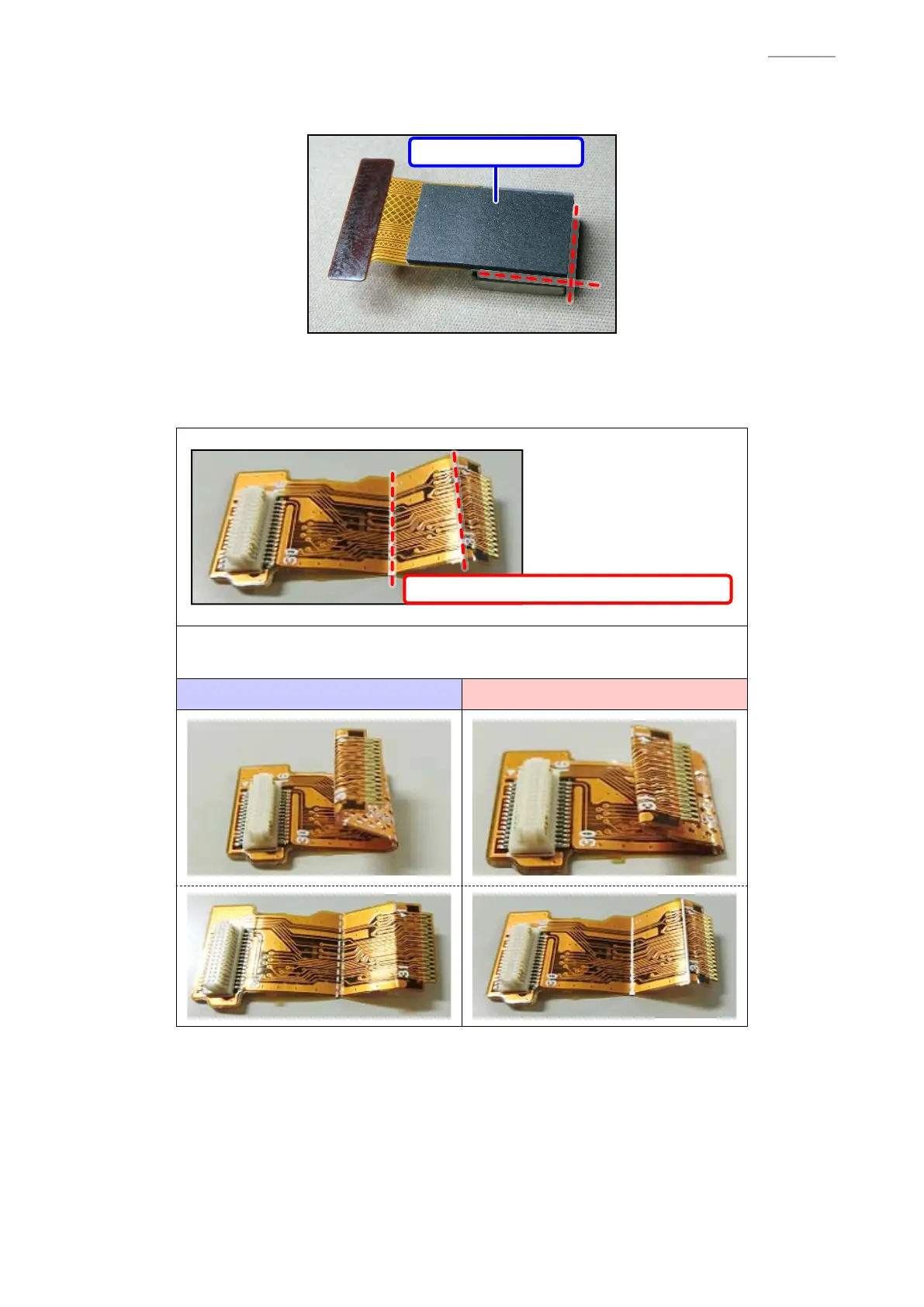

[ Note on reassembling ] CAMERA MODULE
When it is replaced with a new 1, attach the spacer (SPACER/CAMERA).
SPACER/CAMERA
[ Note on reassembling ] EXT-UNIT
When it is replaced with a new 1, form the FPC into shape.
Reference lines (Silk printing)
NOTE:
Bent the FPC with an adequate force. If it is bent at a sharp angle and a
fold line is created on it, an open circuit could occur.
OK NG
