Casio LK-120 Service Manual & Parts Guide

LK-120
– 16 –
DIAGNOSTIC PROGRAM
INITIAL SETTING

Connect the AC adaptor.(1)
Turn the volume to the maximum.(2)
HOW TO START THE DIAGNOSTIC PROGRAM

Hold down the “0” and “START/STOP” buttons at the same time, to turn the power ON.(1)
Set the mode switch to the “NORMAL”.NOTE:
Be sure to turn off the power when the test is nished.NOTE:
Release the “0” and “START/STOP” (2) buttons.

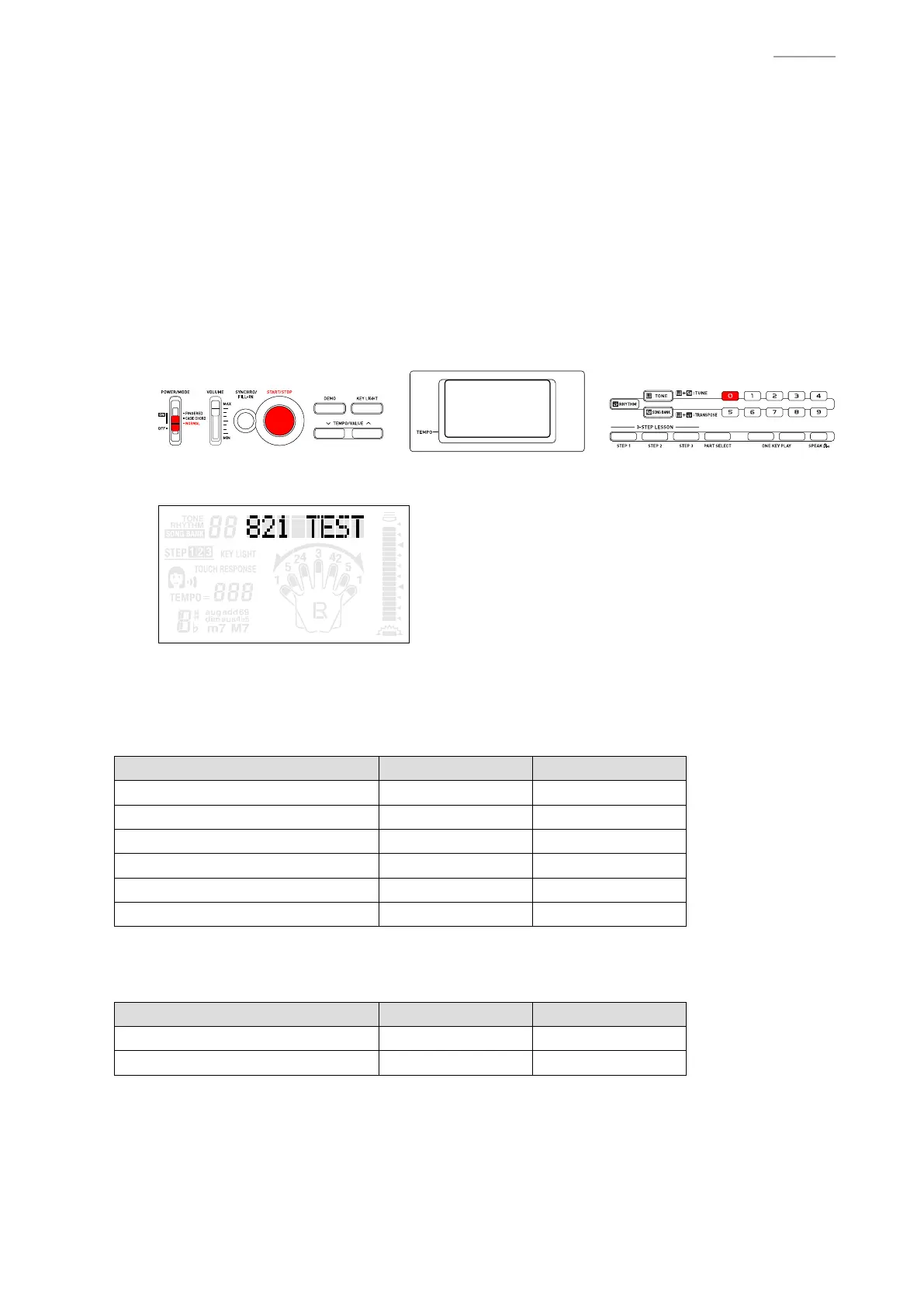

After the diagnostic program is launched, the test menu appears.(3)
TEST ITEMS

Pushing a test button enables the corresponding test item to be tested.
Test Items Buttons Note
Mode Switch Check ―
Button Check 0
ROM Version Check 1
Keyboard LED Check TONE
LCD Check STEP 1
Auto Power Off Check PART SELECT
This diagnostic program does not test the following items.
Check the functions with regular power-on state.
Test Items Buttons Note
Keyboard Check ―
Headphones Check ― Headphones

Casio LK-120 Specifications

General

MIDI-keyboard number of keys	61 keys
Interface	-
DC-in jack	Yes
Dimensions (WxDxH)	949 x 304 x 93 mm
Power consumption (typical)	7.7 W
Product color	Black, Grey

Weight and Dimensions

Weight	3400 g
