Casio LK-120 Service Manual & Parts Guide

LK-120
– 27 –

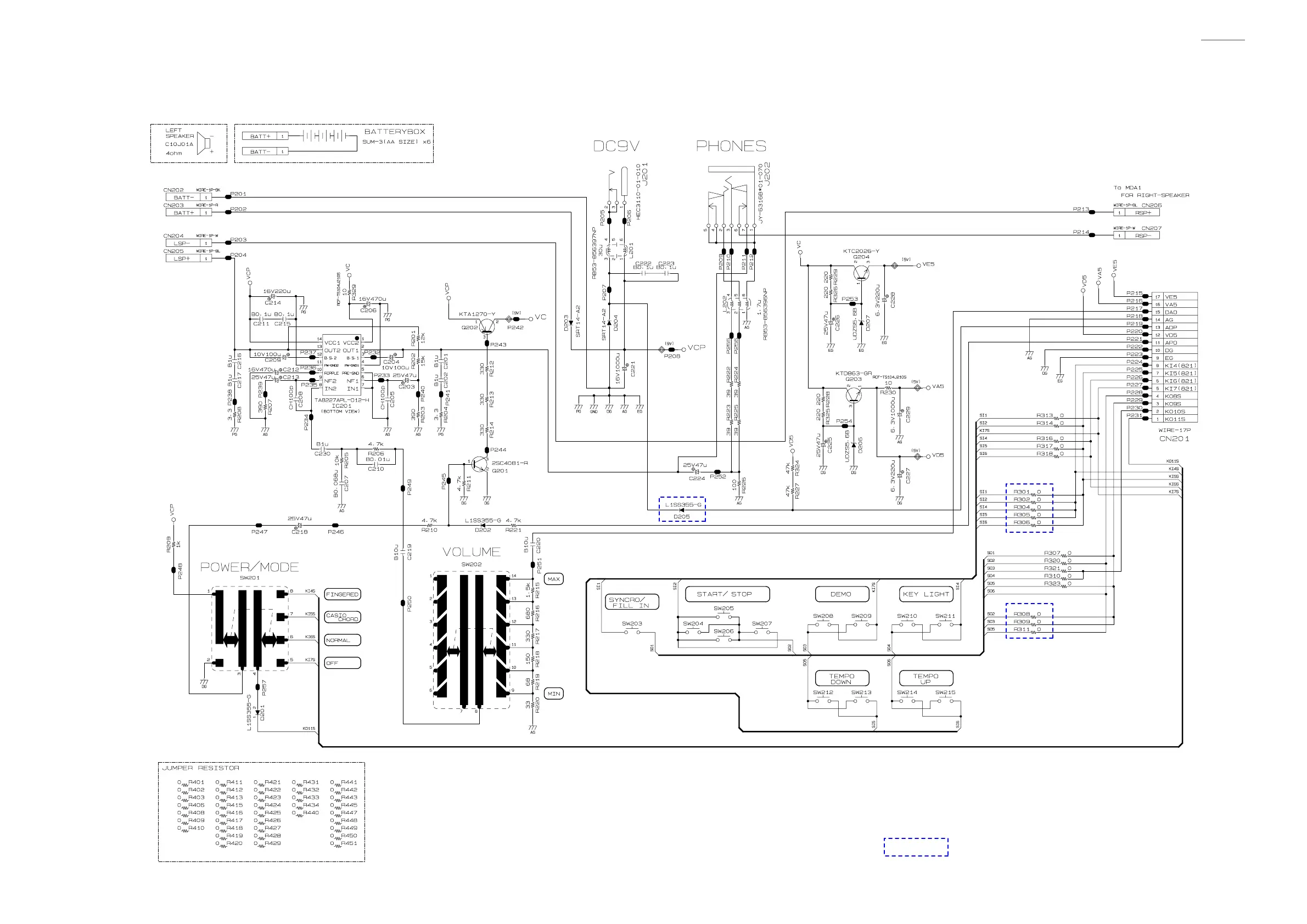

Sub PCB: M820-PSA1
(to BATTERY)
(to LEFT SPEAKER)
(to KYA2/CN803)
(to MDA1/CN3)
POWER/MODE
SWITCH
(SW201)
VOLUME
(SW202)
LEFT SPEAKER BATTERY
DC 9 V IN
(J201)
PHONES/OUTPUT
(J202)
(to MDA1/CN7)
(to MDA1/CN6)
: Not used

Casio LK-120 Specifications

General

MIDI-keyboard number of keys	61 keys
Interface	-
DC-in jack	Yes
Dimensions (WxDxH)	949 x 304 x 93 mm
Power consumption (typical)	7.7 W
Product color	Black, Grey

Weight and Dimensions

Weight	3400 g
