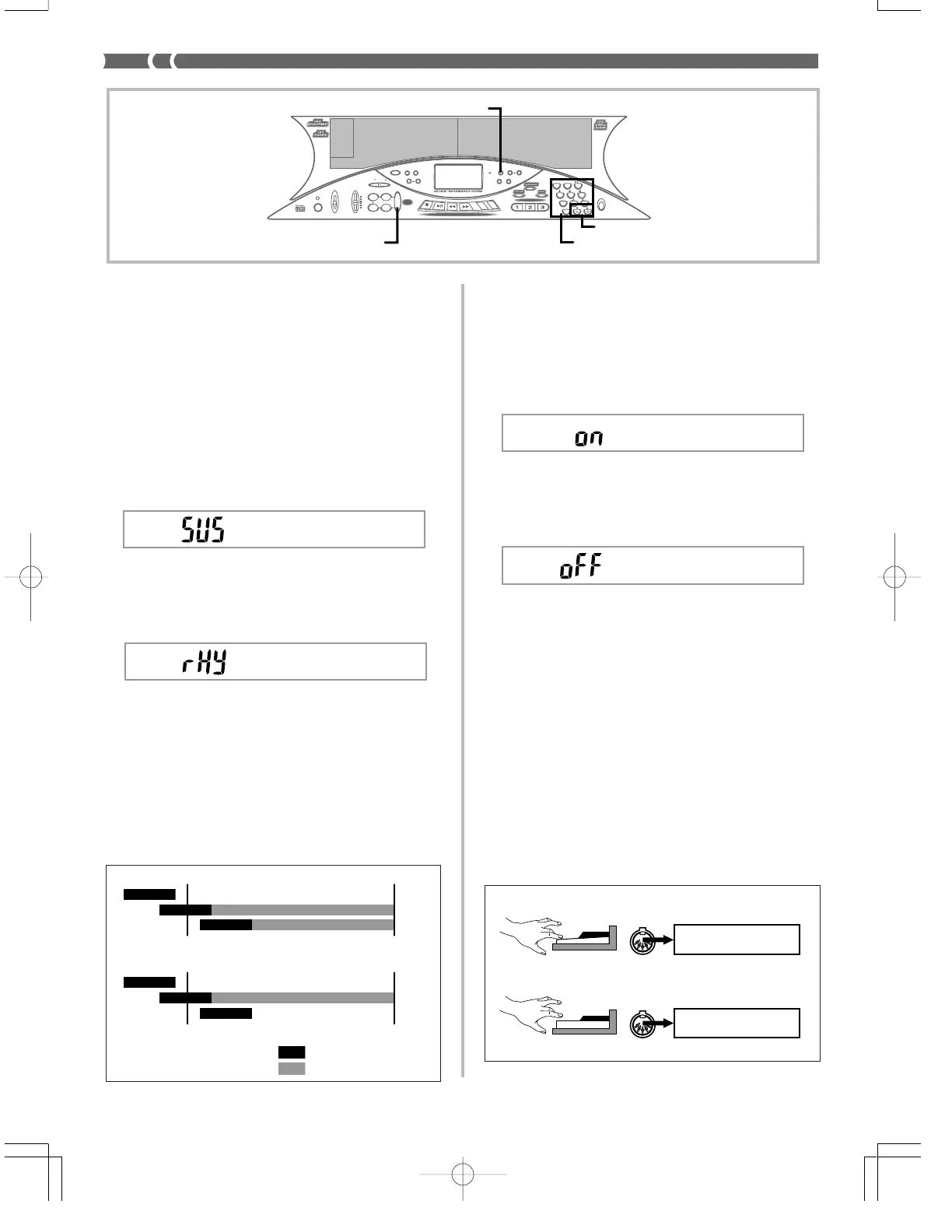

E-38
ASSIGNABLE JACK
SUS(sustain): Specifies a sustain*
1
effect when the pedal is de-
pressed.
SoS (sostenuto): Specifies a sostenuto*
2
effect when the pedal is de-
pressed.
SFt (soft): Specifies reduction of the sound’s volume when the ped-
al is depressed.
rHy (rhythm): Specifies START/STOP button operation when the
pedal is depressed.
1. Press the TRANSPOSE/TUNE/MIDI button until the
ASSIGNABLE JACK screen appears.
Example: When sustain is currently set
2. Use the [+] and [–] or [0], [1], [2], and [3] buttons to
change the setting.
Example: To select rhythm
*1 Sustain
With piano tones and other sounds that decay, the pedal acts as a
damper pedal, with sounds being sustained longer when the pedal
is depressed. With organ tones and other continuous sounds, notes
played on the keyboard continue to sound until the pedal is released.
In either case, the sustain effect is also applied to any notes that are
played while the pedal is depressed.
*2 Sostenuto
This effect performs the same way as sustain, except that it is applied
only to notes that are sounding already when the pedal is depressed.
It does not affect notes that are played after the pedal is depressed.
Pedal depressed
Pedal released
★ When SUS is set
★ When SoS is set
= Keyboard depressed.
= Sustained notes
Pedal depressed
Pedal released
SOUND RANGE SHIFT (Default: On)
on: Shifts low range tones one octave lower and 072 PICCOLO one
octave higher.
oFF:Plays low range tones and 072 PICCOLO at their normal levels.
1. Press the TRANSPOSE/TUNE/MIDI button until the
SOUND RANGE SHIFT screen appears.
2. Use the [+] and [–] or [0] and [1] buttons to change
the setting.
Example: To turn SOUND RANGE SHIFT off
Messages
There is a wide variety of messages defined under the MIDI stan-
dard, and this section details the particular messages that can be sent
and received by this keyboard. An asterisk is used to mark messages
that affect the entire keyboard. Messages without an asterisk are those
that affect only a particular channel.
NOTE ON/OFF
This message sends data when a key is pressed (NOTE ON) or re-
leased (NOTE OFF).
A NOTE ON/OFF message include a note number (to indicate note
whose key is being pressed or released) and velocity (keyboard pres-
sure as a value from 1 to 127). NOTE ON velocity is always used to
determine the relative volume of the note. This keyboard does not
receive NOTE OFF velocity data.
Whenever you press or release a key on this keyboard, the correspond-
ing NOTE ON or NOTE OFF message is sent from the MIDI OUT
terminal.
St
uih t
O
f
MIDI OUT Terminal
NOTE ON
MIDI OUT Terminal
• Note number (tone)
• Velocity (volume)
NOTE OFF
• Note number (tone)
• Velocity (volume)
Release the key
Press the key
474A-E-040A
St
uih t
O
f
789
456
1
0
23
POWER
MODE VOLUME
MAX
TEMPO
INTRO
STEP 1 STEP 2 STEP 3
DEMO
NORMAL/
FILL-IN
VARIATION/
FILL-IN
SYNCHRO/
ENDING
FULL RANGE
KEY LIGHT
KEY LIGHT
TOUCH
RESPONSE
METRONOME BEAT
TOUCH
TRANSPOSE/
TUNE/MIDI MEMORY STEP
SPLIT LAYER
GM
MEMORY
STEP
RESPONSE
ACCOMP
VOLUME
CHORD
FINGERED
CASIO CHORD
NORMAL
MIN
START/
STOP
S
T
O
P
P
L
A
Y
/
P
A
U
S
E
R
E
W
F
F
L
E
F
T
/
T
R
A
C
K
1
R
I
G
H
T
/
T
R
A
C
K
2
SONG BANK CONTROLLER
3-STEP LESSON
REST
(TIE)
START/STOP
TRANSPOSE/TUNE/MIDI
Number buttons
[+]/[–]
J O
uca t
O
k
J O
uca t
O
k
To Next Page
