Casio MA-100 User Manual

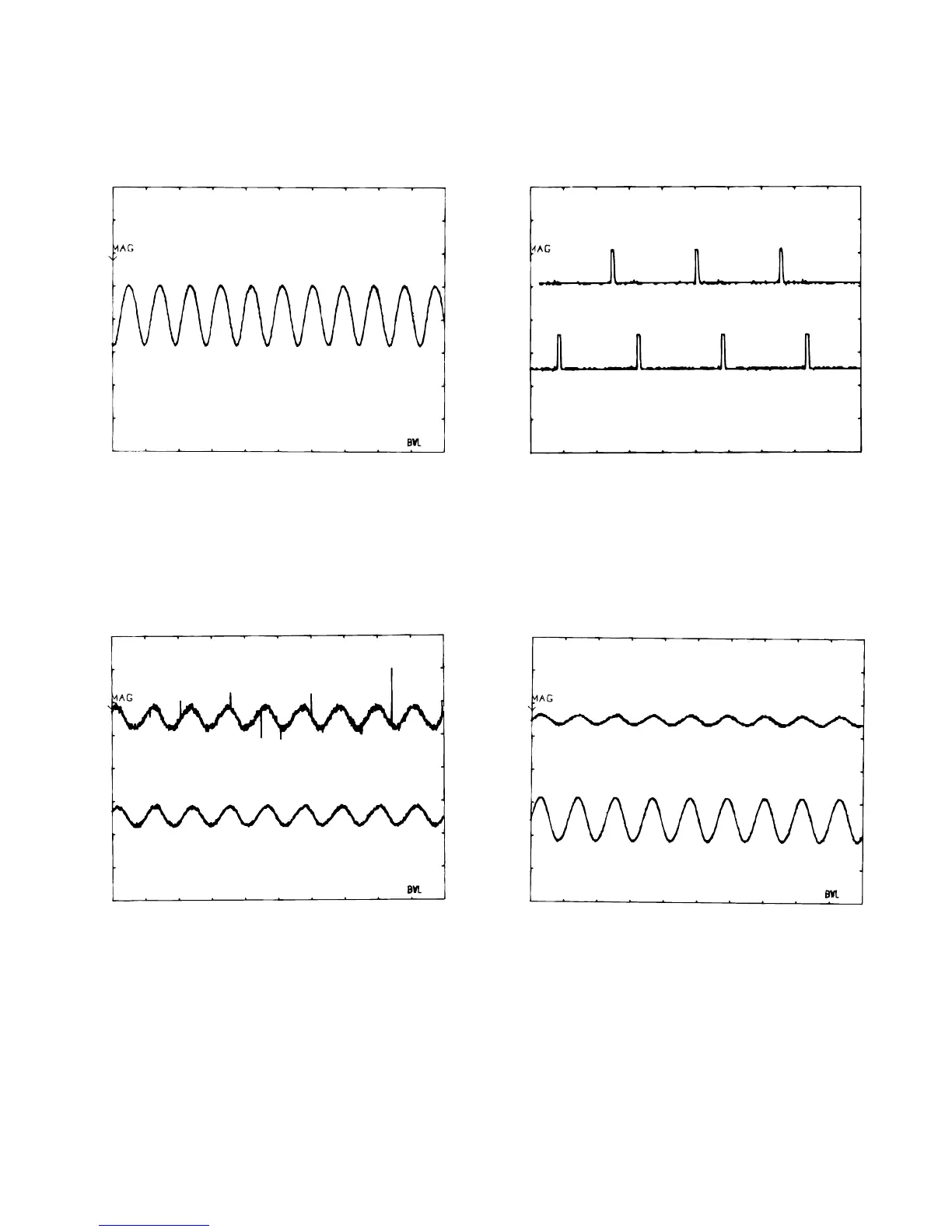

MAJOR WAVEFORMS
1
Clock pulse COSI
MSM6387-13 pin 8
2
3
Key scan signal KO0
MSM6387-13 pin 30
Key scan signal KO1
MSM6387-13 pin 29
4
5
6
7
Sound signal output
MSM6387-13 pin 5
Filter output
Emitter of Q201
Power amp input
LA4598 pin 6
Power amp output
LA5498 pin 3
Tone : Flute (No.13)
Key : A3
Volume : Maximum
1
2
3
4
5
6
7
50 ns
CH1: 1V
2 ms
CH1: 5 V
–
CH2: 5 V
–
~
~~
2 ms
CH1: 50 mV CH2: 0.5 V
CH1: 50 mV CH2: 50 mV
2 ms
~~
CH1
CH1
CH2
CH1
CH2
CH1
CH2
6 Power amp input
AN8053N pin 6
7 Power amp output
AN8053N pin 1
2 Key scan signal KO0
MSM6387-13 pin 30
3 Key scan signal KO1
MSM6387-13 pin 29
1 Clock pulse COSI
MSM6387-13 pin 8
4 Sound signal output
MSM6387-13 pin 5
5 Filter output
Collector of Q101
1
4
5
6
7
2
3
— 8 —
