Casio PCR-T520 Service Manual

– 18 –
SE-S400/SE-S800/PCR-T500/PCR-T520/SE-C450
SE-S3000/SE-S900/PCR-T2300/PCR-T2400/SE-C3500

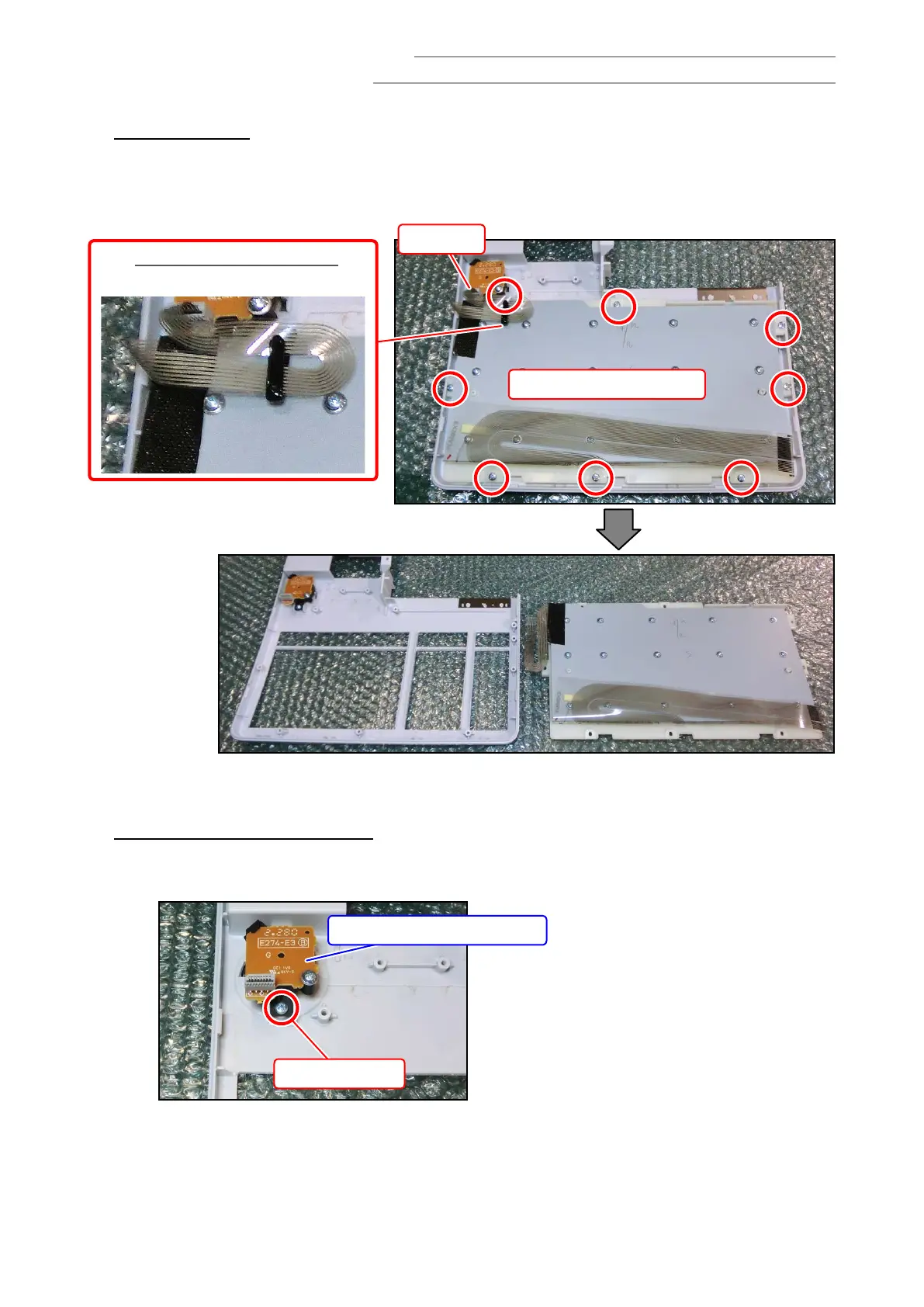

K. KEY BLOCK
K-1. Disconnect one FPC.
K-2. Undo eight screws.
K-3. Remove the KEY BLOCK.
NOTES ON ASSEMBLY
Secure the FPC.
FPC
All "S1" screws
L. SWITCH ASSY/MODE KEY
L-1. Undo one screw.
L-2. Remove the SWITCH ASSY/MODE KEY.
SWITCH ASSY/MODE KEY
Screws (S1)
