Casio PX-410R Service Manual

— 15 —

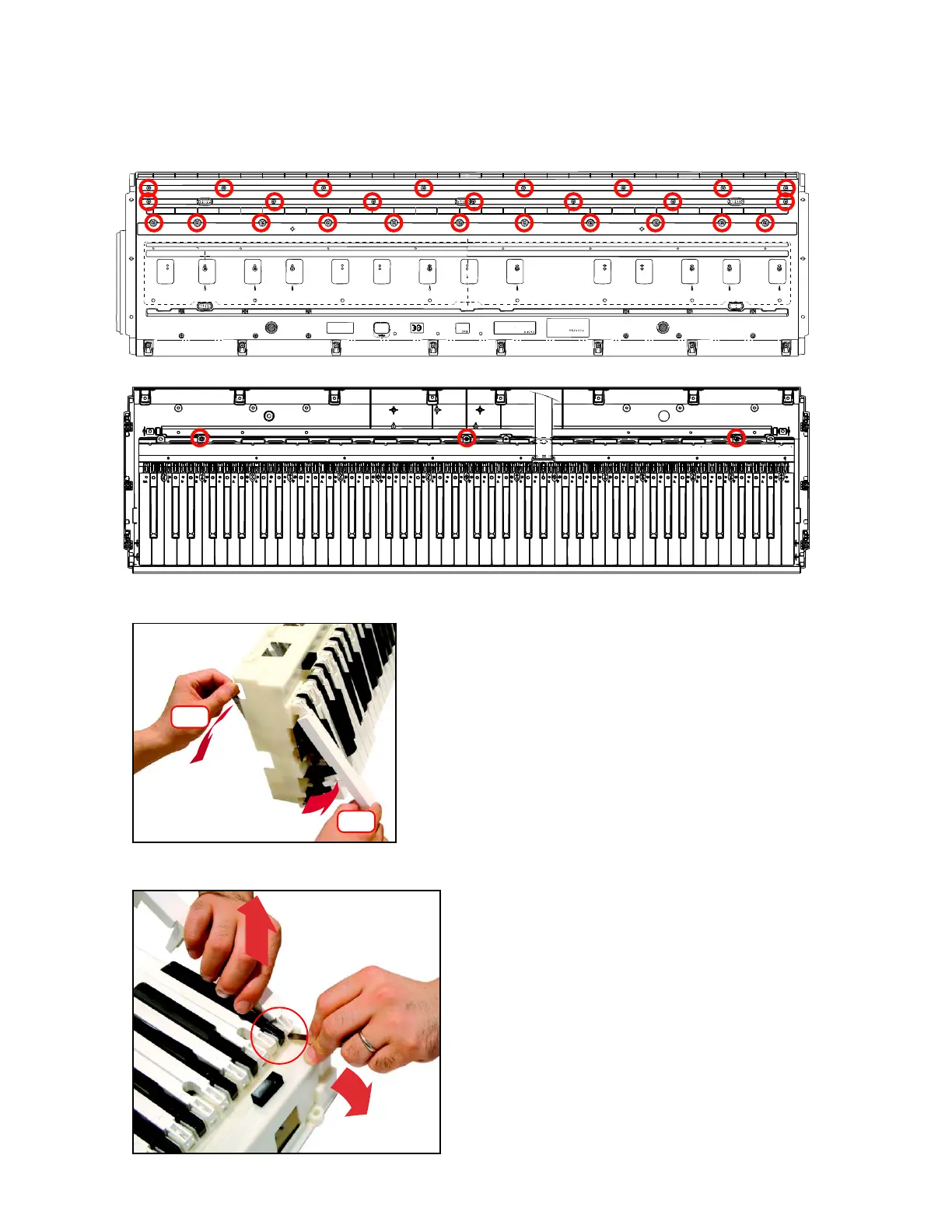

■ To remove the keyboard
25. Remove 26 screws on the bottom.
26. Remove 3 screws on the surface.
27. Separate the case from the keyboard.
28. Pull the hammer (1), and then remove the key from the hammer (2).
1
2
29. Insert the edge of the tweezers as shown in part a of the below figure to remove the key.
a

Casio PX-410R Specifications

General

Brand	Casio
Model	PX-410R
Category	Electronic Keyboard
Language	English
