— 23 —

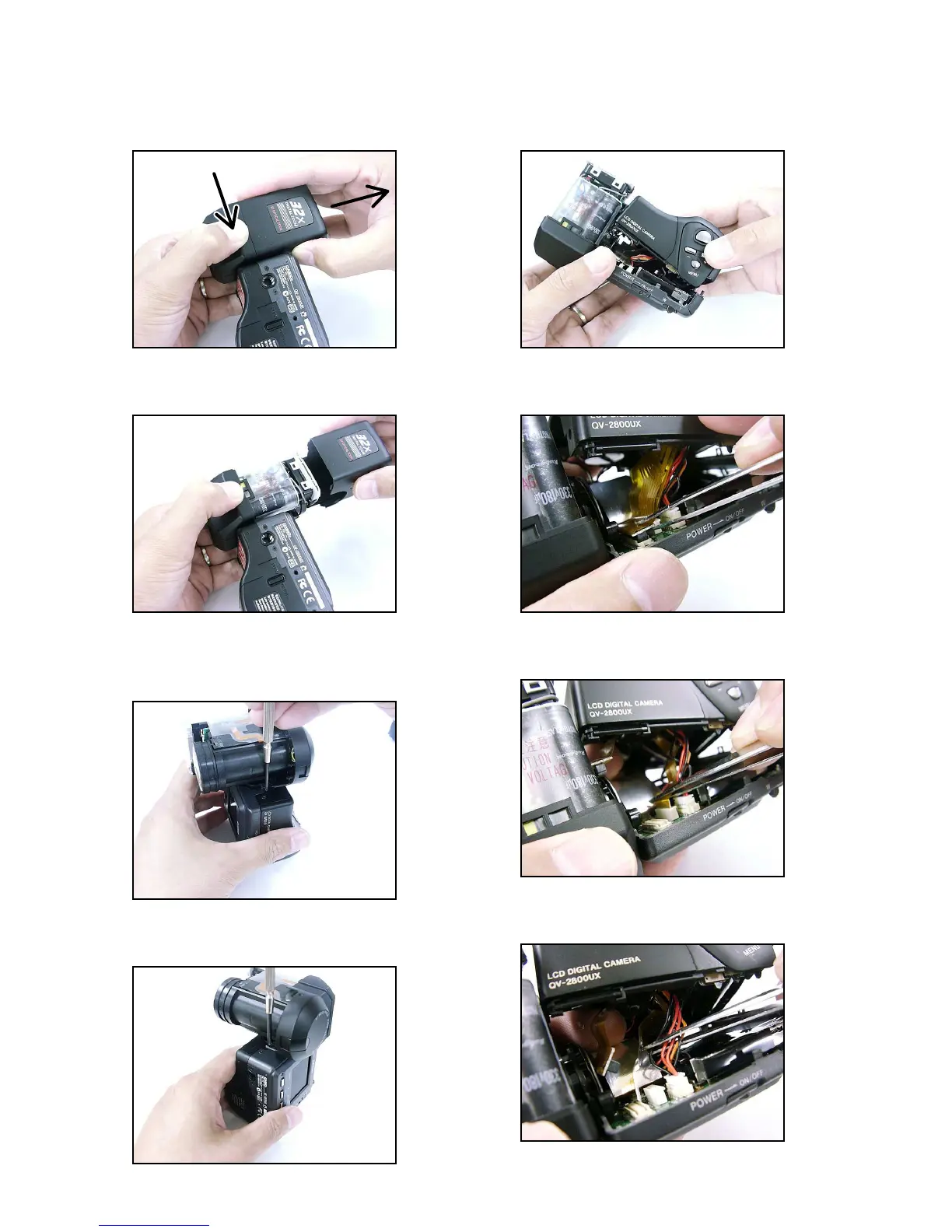

7. Pull to the right with pushing the arrowed area.
8. Remove the front case block.
9. Rotate the lens and remove the screw on the
side.
10. Rotate the lens and remove the screw on the
side.
11. Open the case.
12. Remove the connector (CN530).
13. Remove the connector (CN522).
14. Remove the connector (CN521).
