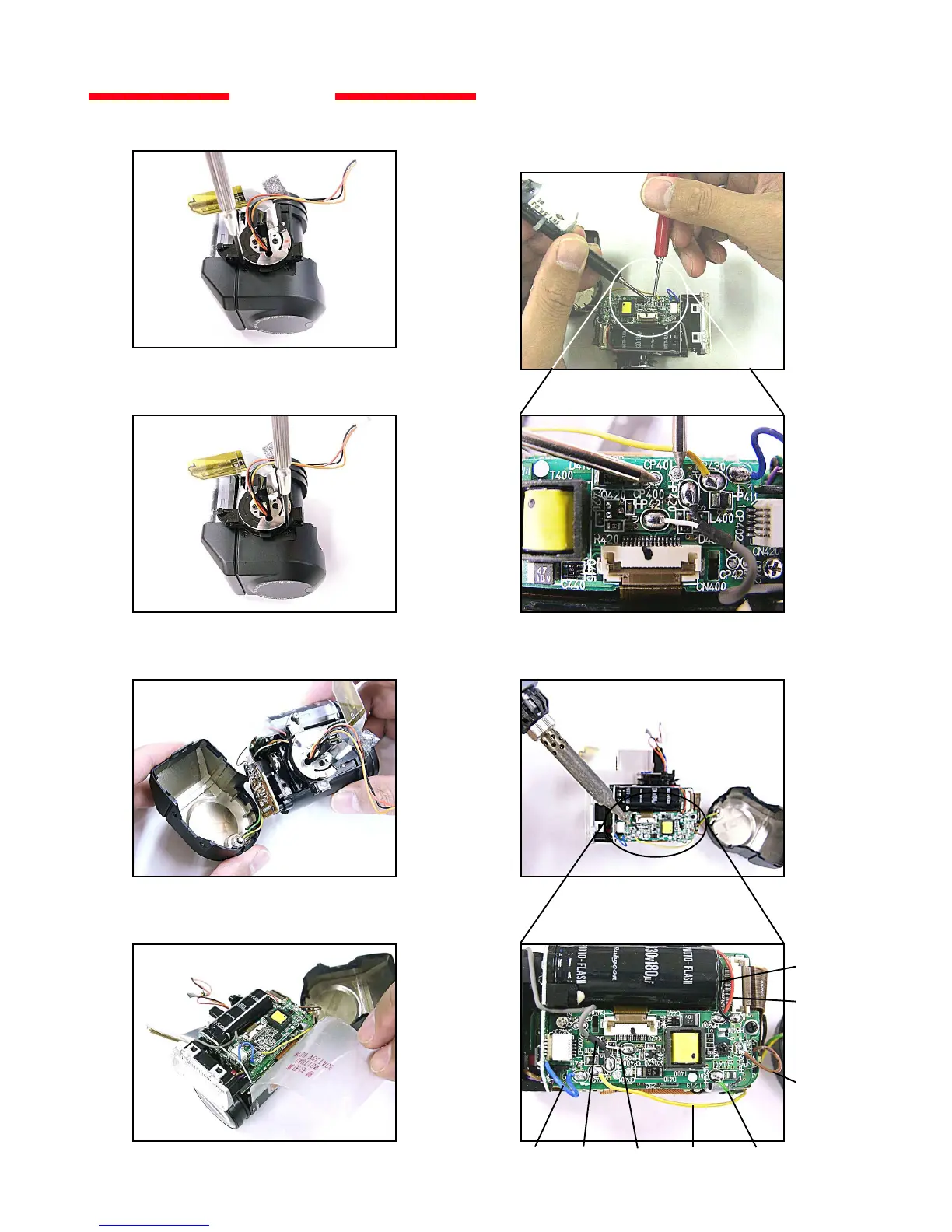

1. Remove the screw.
2. Remove the screw.
3. Remove the case.
4. Peel off the insulation sheet.
5. Discharge flash capacitor.
(locates between CP400 and CP401)
magnified picture
Lens block
6. Unsolder the 8 lead wire.
blue black yellow green
brown
red
white
black
magnified picture
