— 31 —

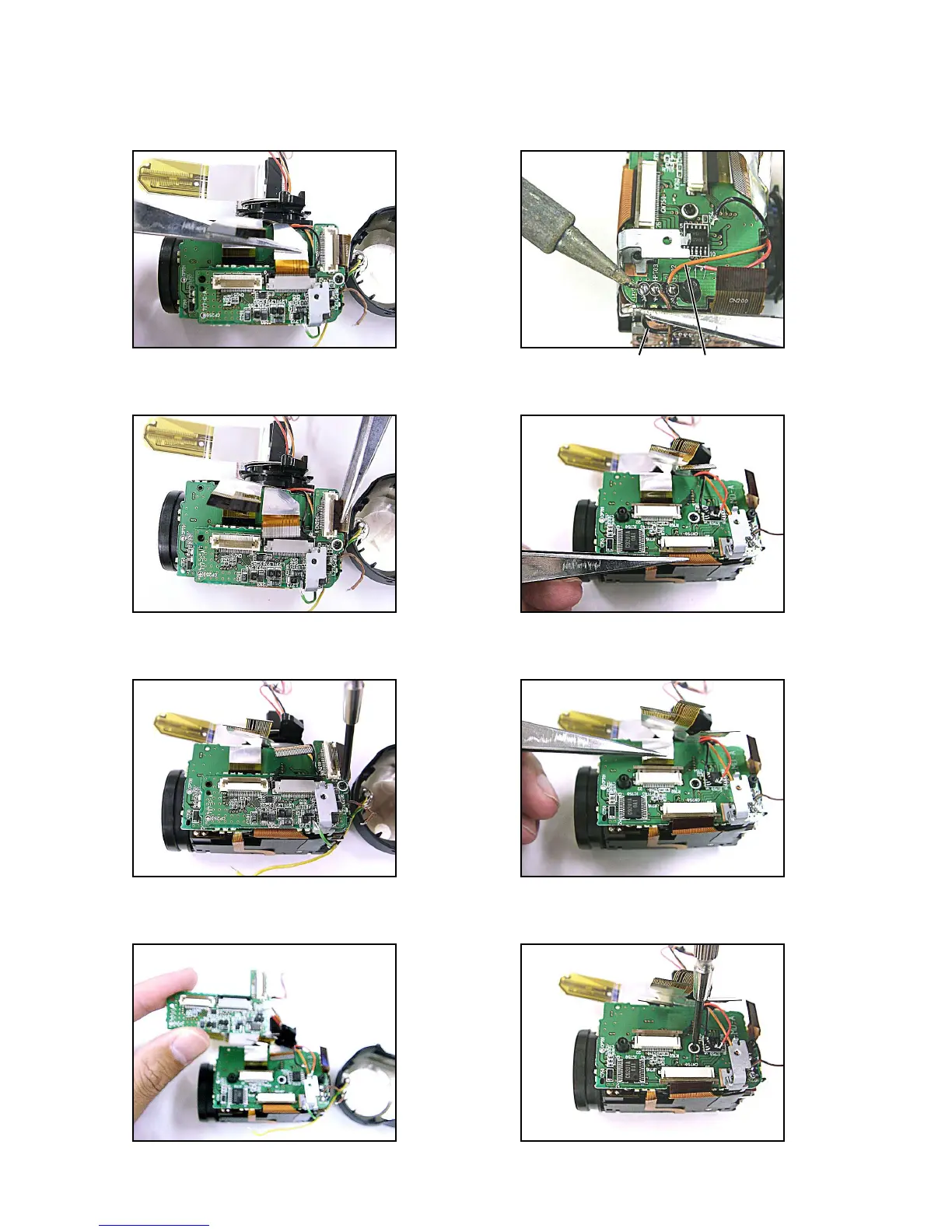

14. Remove the connector (CN250).
15 Remove the connector (CN290).
16. Remove the screw.
17. Remove the C-PCB.
18. Unsolder two lead wires.
19. Remove the connector (CN750).
black orange
20. Remove the connector (CN700).
21. Remove the screw.
