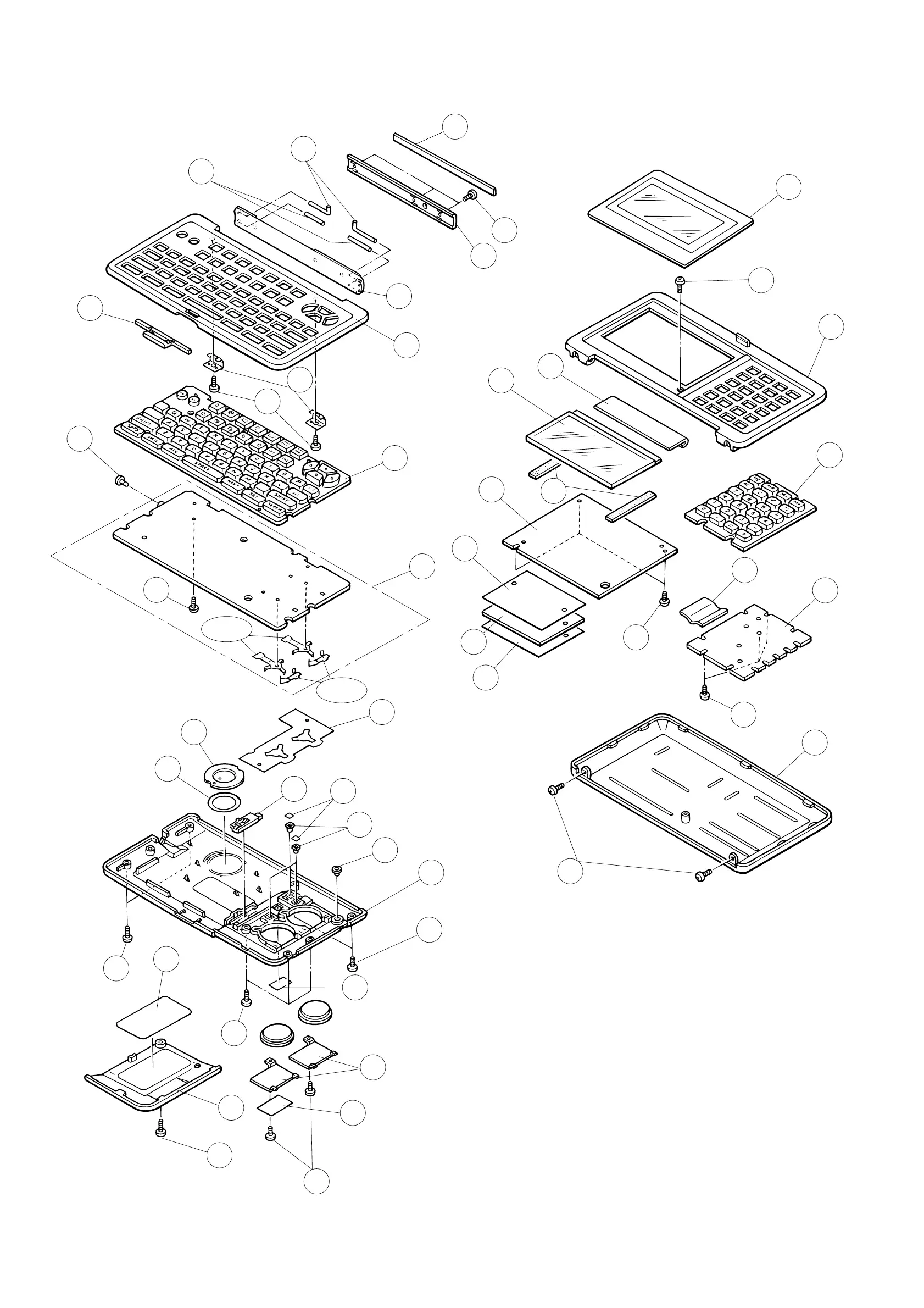

10. ASSEMBLY VIEW
DISASSEMBLY
1. Lift off the hinge tape F, loose the three screws ] on the hinge E, then
remove the hinge E.
2. Loose the two screws \ on the lower case O. After lifting off the plate G
at the lower right corner, loose the screw \ on the upper case H, and
remove the lower case O.
3. Loose the six screws ] on the PCB ass'y 1 and N, then remove the PCB
ass'y 1 and N.
4. Loose the screw `, and remove the battery cover R. Loose the screws b,
then remove the battery holders P and the batteries.
5. Loose the eight screws a, and remove the lower case U.
6. Loose the screw ] on the PCB ass'y 6, then remove the PCB ass'y 6.
— 33 —
16
14
13
11
15
12
10
9
7
8
17
18
22
19
20
1
21
4
3
2
23
24
25
6
5
37
36
6-1
35
34
6-2
33
32
31
30
29
28
26
27
39
38
39
38
39
39
38
41
41
41
40
42
