SE-G1/PCR-T273/SM-T274
–15–
J.
PRINTER

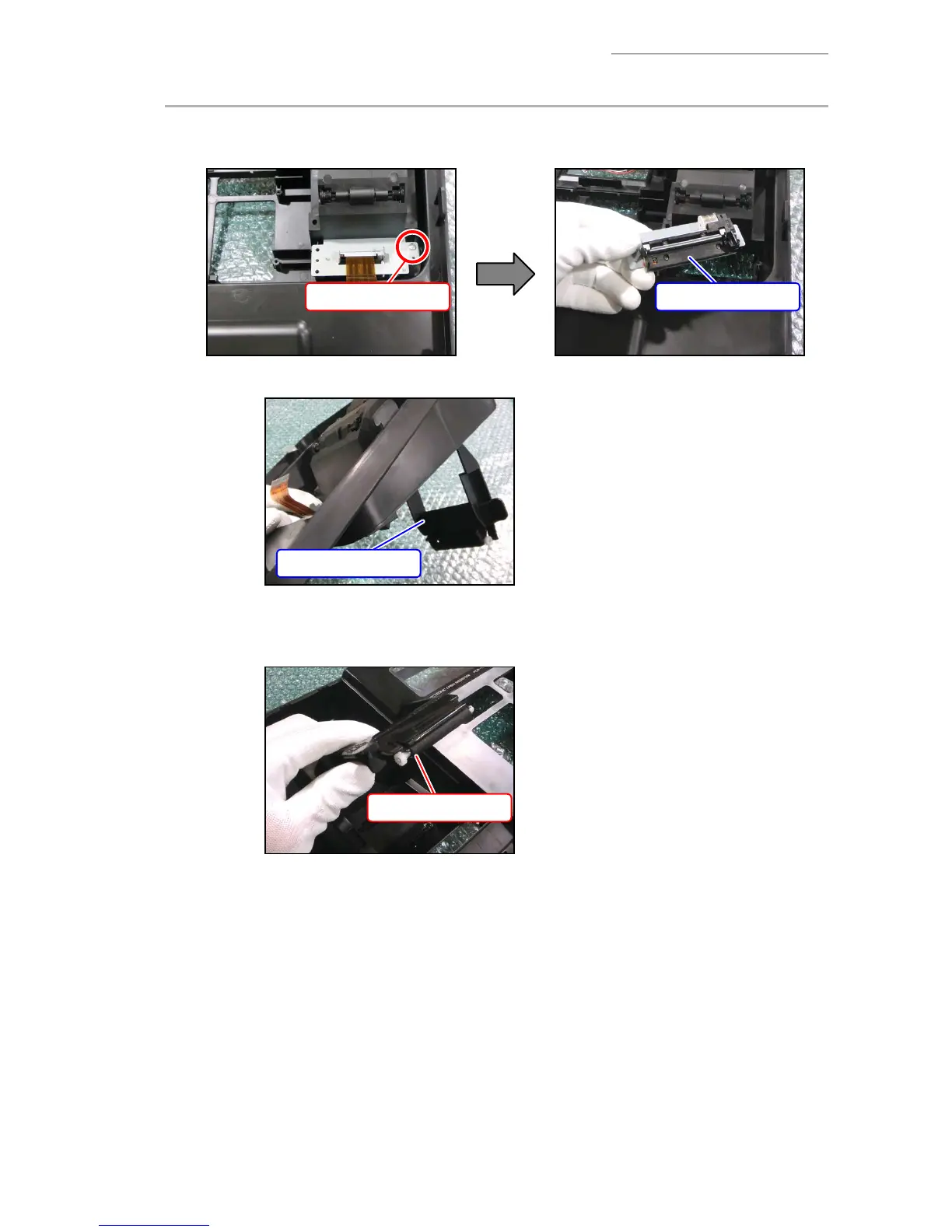

J-1.
Undo one screw
.
J-2.
Remove the PRINTER.
Screw(S3)
PRINTER
NOTE:
The PLA
TEN
ARM must be open to remove the PRINTER.
ARM/PLA
TEN
NOTE:
When replacing the PRINTER with a new part, remove the roller from the new
PRINTER and replace it with the roller for the PLA
TEN
ARM.
Roller
16
18
Table of Contents
Caution
2
Table of Contents
2
Specifications
3
Initialization
4
Disassembly
5
Diagnostic Operation
18
Pcb Layout
27
6. Exploded View/Parts List Model : Se-G1/Pcr-T723/Sm-T274
29
Parts List
29
Explode View
30
Parts List
32
DRAWER S-Type (DL-1335/1844/1845)
35
DRAWER M-Type (DL-2816/2817)
37
