— 9 —
■

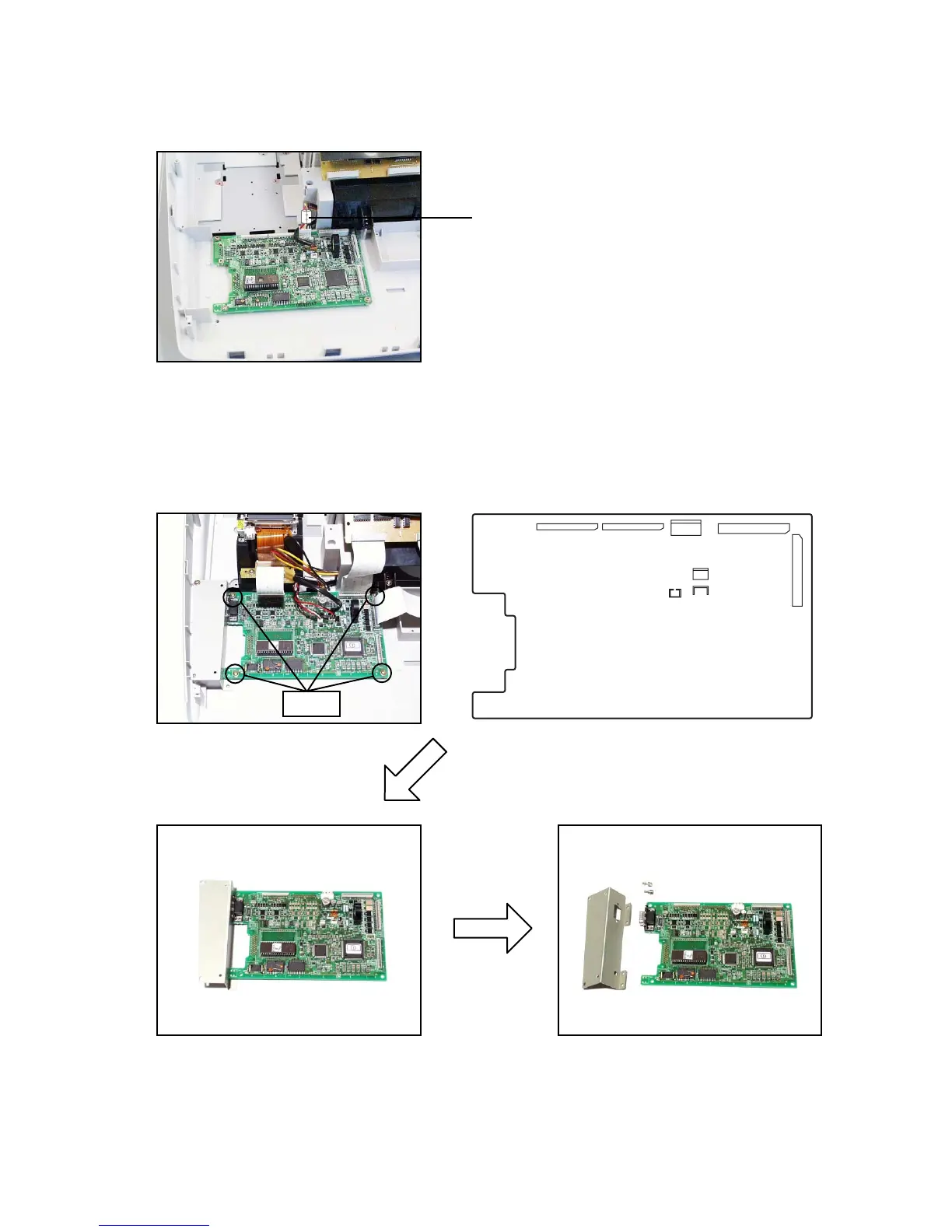

MAIN PCB
1.
Remove the upper cover as shown in steps 1 to 3 of page 5.
2.
Remove two screws and eight connectors (CN3-CN10) and then the MAIN PCB.
CN7
CN6
CN5
CN8
CN10
CN9
CN3
CN4
Screws
■
Removing the Drawer
1.
Remove the Upper cover, Printer unit and Power supply.
2.
Remove the Drawer from the ECR.
6.
Remove the core.
Core
10
12
