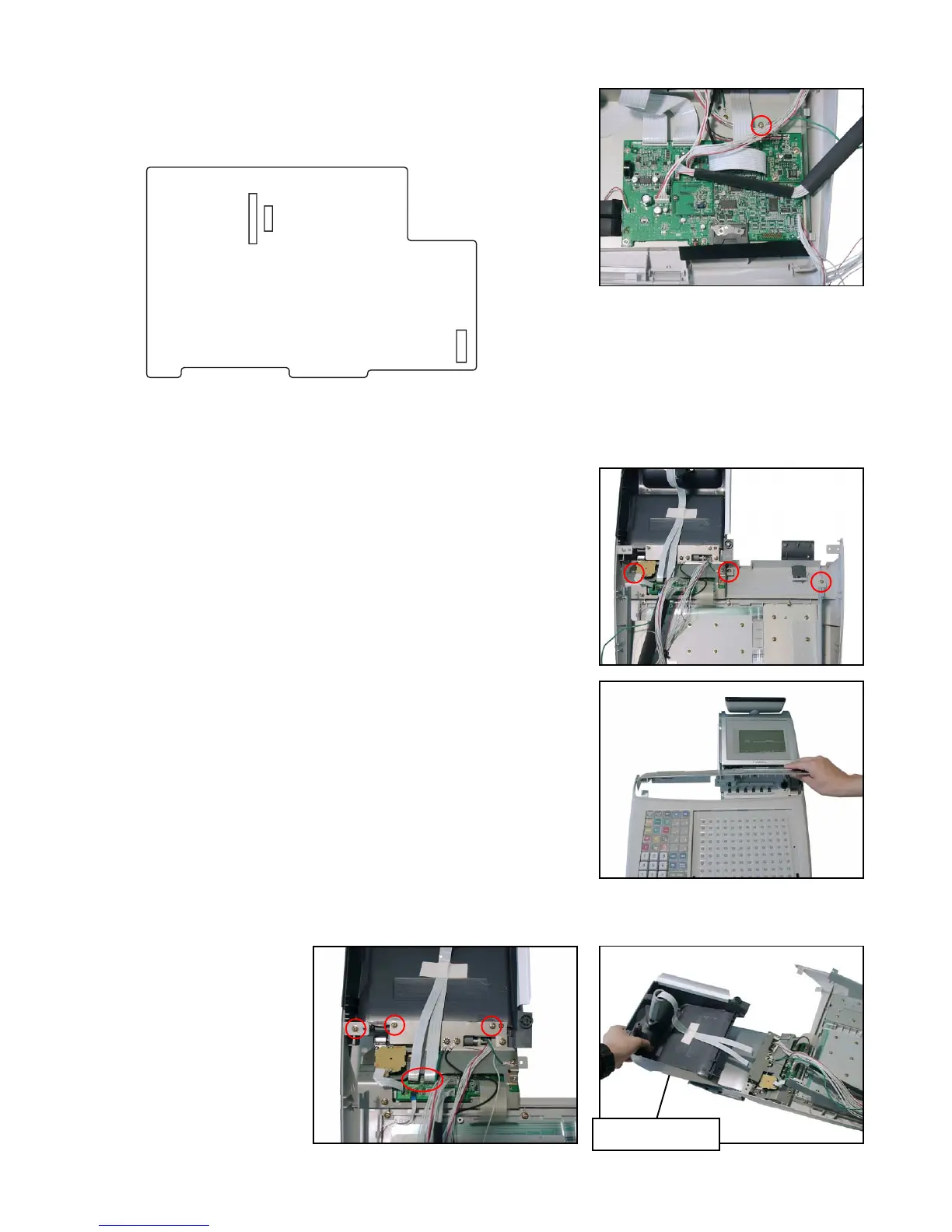

— 9 —
4. Remove three connectors. (CN10, CN11, CN15)
Remove the screws and the earth cable.
■ LCD ASS’Y
1. Remove the three screws.
Remove the mode key cover.
2. Remove the hinge cover.
3. Remove the three screws and two FPCs.
Remove the display case.
Display case
CN11
CN15
CN10
