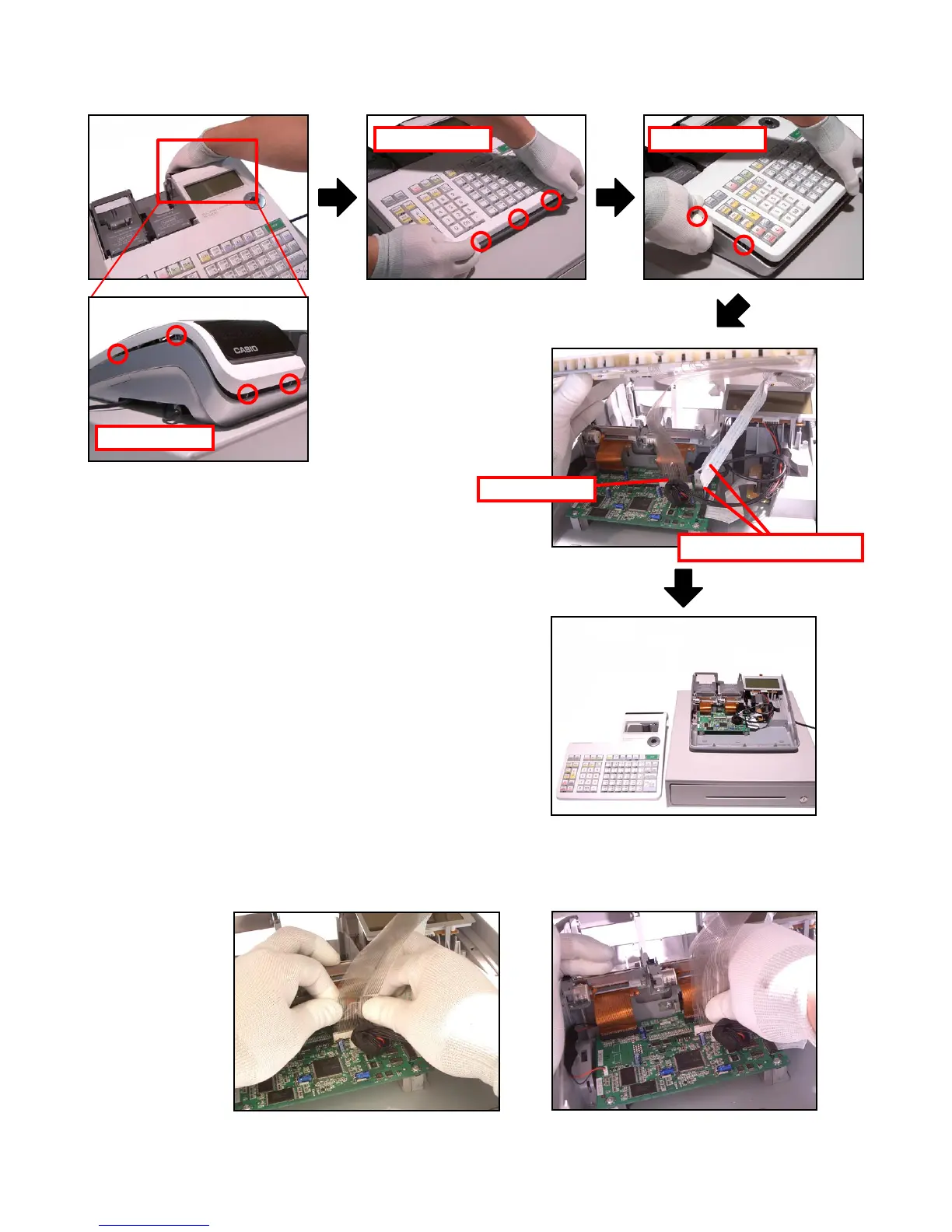

5. Lift the upper case block and then remove 3 FPCs.
Assembling Point:
Be sure to insert the FPC securely by holding it with both hands or, if holding it with one hand,
holding by its center.
Hooks
Hooks
Hooks
FPC (Pop-up displasy)
FPC (KEY)
11
13
Table of Contents
Table of Contents
2
Specifications
3
Initializing the Cash Register
6
Machine Initialization
6
Clearing a Machine Lock up
7
Disassembly
11
Block Diagram
19
Diagnostic Operation
20
When an Error Occurs
41
Error Code List
41
Pcb Layout
43
Circuit Diagrams
45
Parts List
54
