— 16 —

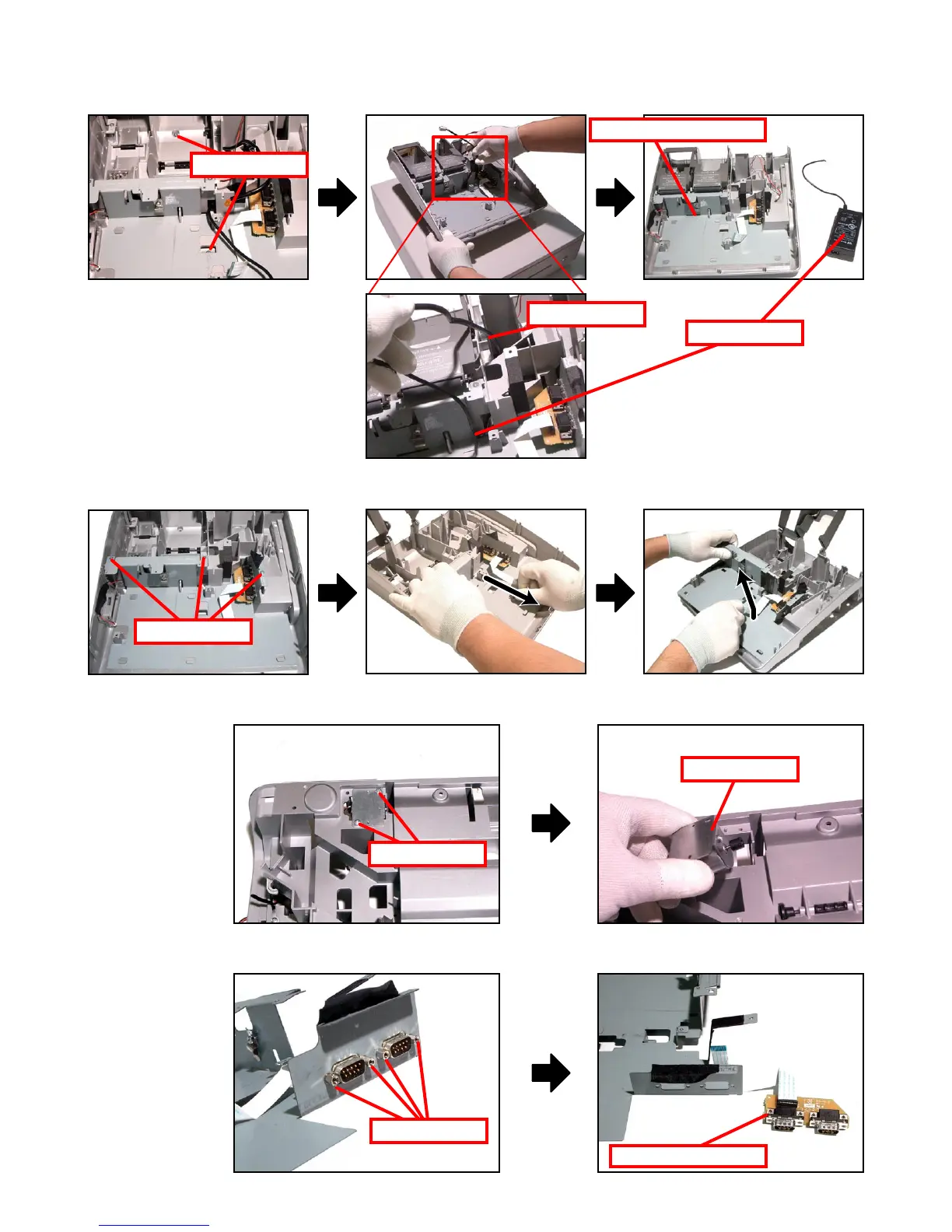

12. Remove 2 screws and then the Lower case unit ans AC Adaptor.
Screws
Drawer
AC Adaptor
Lower case unit
13. Remove 3 screws and then the Lower case unit ans AC Adaptor.
14. Remove 2 screws and then the Motor assy.
Screws
Motor assy
15. Remove 4 screws and then the E292-COM PCB.
E292-COM PCB
Screws
Screws
