V-R100
– 12 –

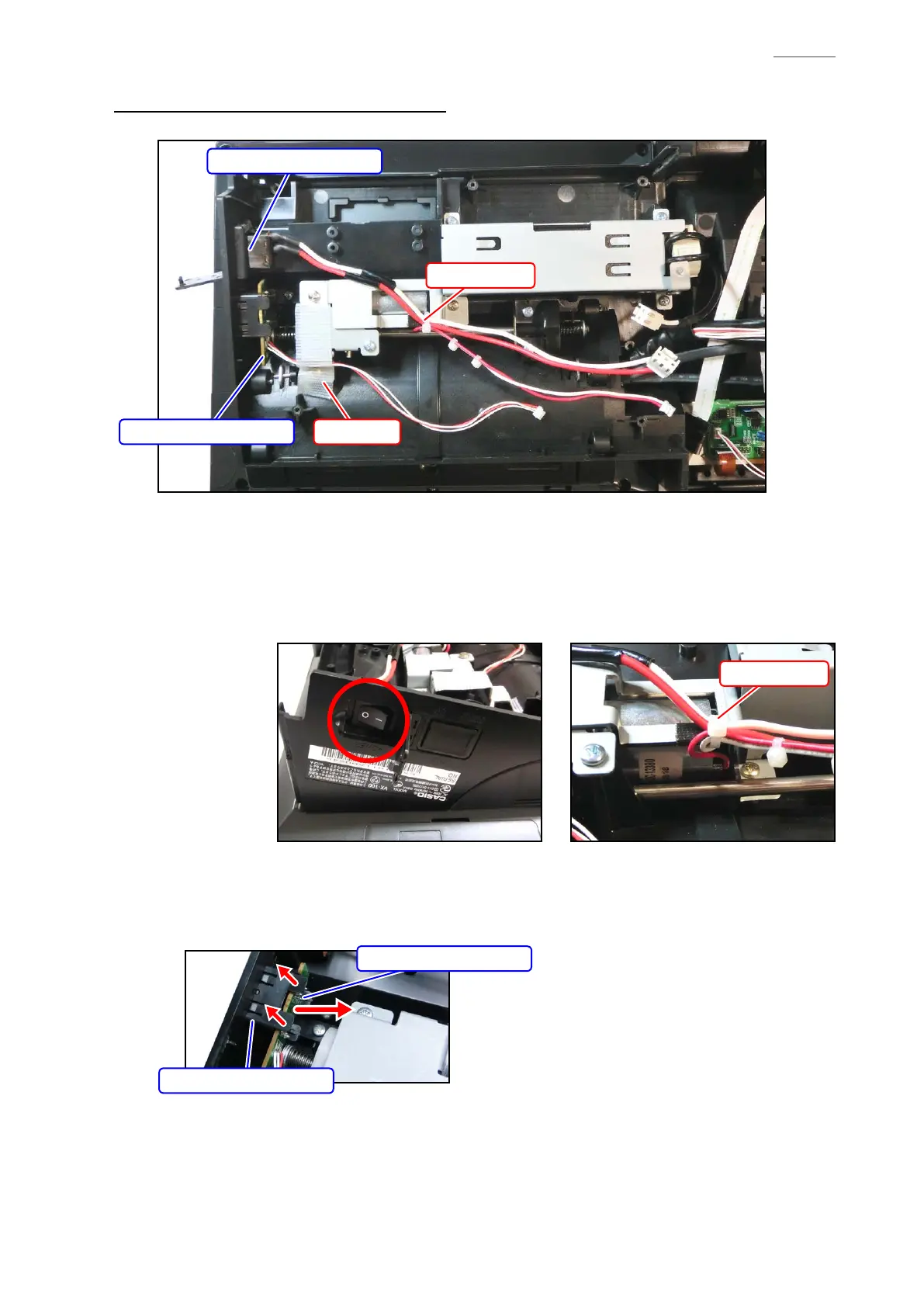

C-2. E840-E63 PCB
1. Peel off the tape.
2. Disengage the hooks and dismount E840-E63 PCB and TILT-SW-SUBASSY.
C. POWER-SW-ASSY / E840-E63 PCB
C-1. POWER-SW-ASSY
1. Remove cable tie.
2. Remove POWER-SW-ASSY.
Caution for assembly: Assemble POWER-SW-ASSY with caution of its direction.
Caution for assembly: Tie lead wires on POWER-SW-ASSY together with motor wires with a
cable tie.
E840-E63 PCB
TILT-SW-SUBASSY
POWER-SW-ASSY
E840-E63 PCB Tape
Cable tie
Cable tie
