Casio V-R100 Service Manual

V-R100
– 16 –

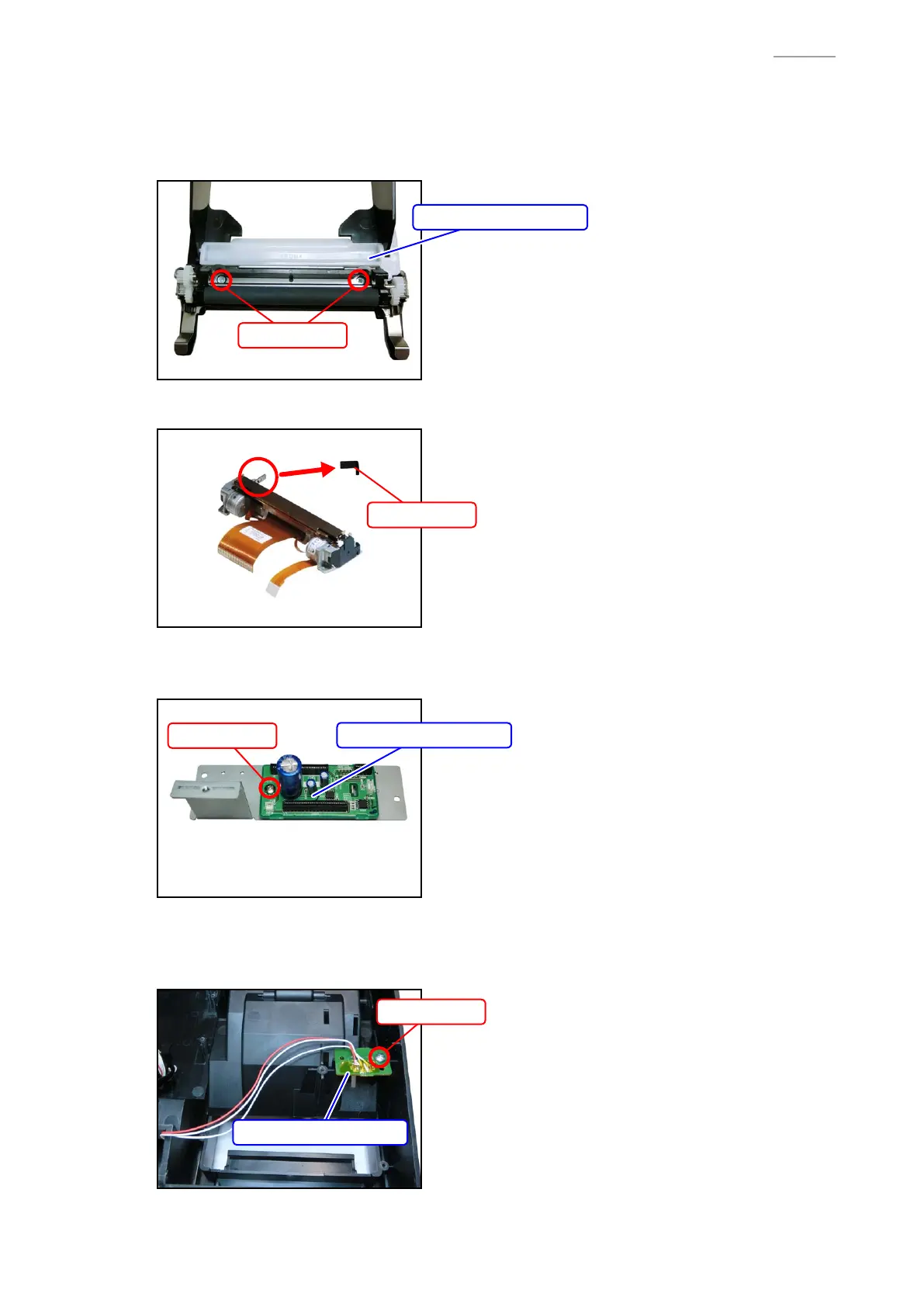

Caution When Replacing With A New Unit: PRINTER
• The cutter comes with a new printer.
(1) Remove EJECT-LEVER.
(2) Undo two screws and remove the cutter.
• The socket on new printer is not used so remove it.
F-6. Undo one screw.
F-7. Remove E840-PR PCB.
F-8. Peel off the tape.
F-9. Undo one screw.
F-10. Dismount E840-E64 PCB.
E840-PR PCB
Screw (S3)
E840-E64 PCB
Screw (S5)
EJECT-LEVER
Screws (S6)
Socket
